14GB

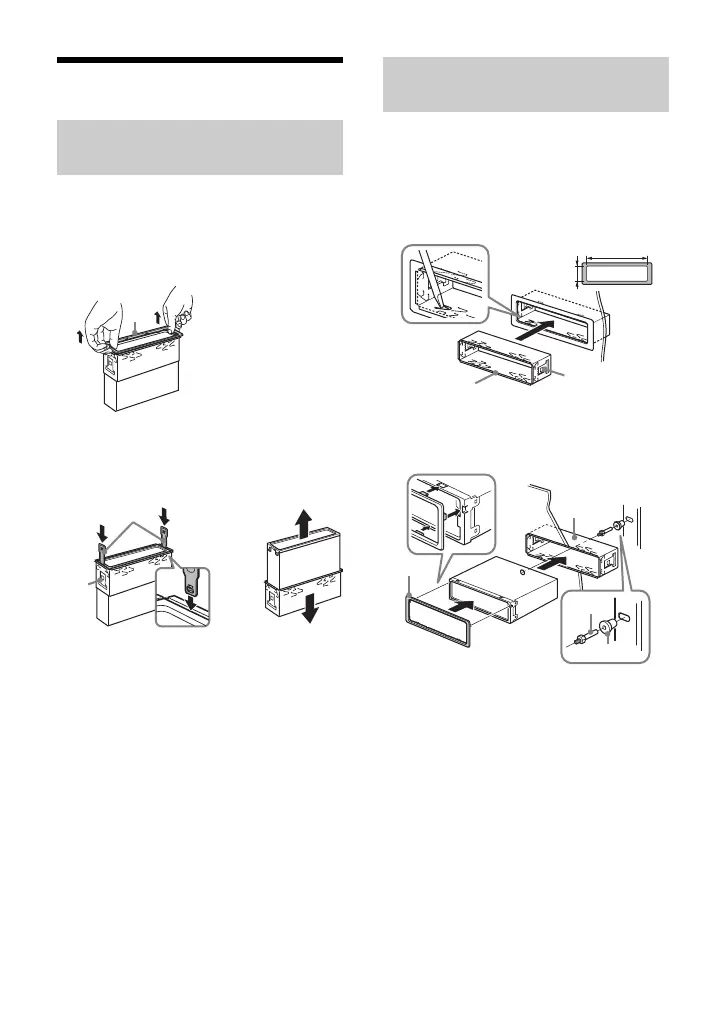

Installation
Before installing the unit, remove the trim
ring and the mounting sleeve from the
unit.
1 Pinch both edges of the trim ring ,
then pull it out.
2 Insert both release keys until they
click, and pull down the mounting
sleeve , then pull up the unit to
separate.
Before installing, make sure the catches on
both sides of the mounting sleeve are
bent inwards 2 mm (
3
/32 in).
1 Position the mounting sleeve
inside the dashboard, then bend the
claws outward for a tight fit.
2 Mount the unit onto the mounting
sleeve , then attach the trim ring
.
Notes
• If the catches are straight or bent outwards, the
unit will not be installed securely and may spring
out.
• Make sure the 4 catches on the trim ring are
properly engaged in the slots of the unit.
Removing the trim ring and the
mounting sleeve
Face the hook inwards.
Mounting the unit in the
dashboard
182 mm (7
1
/4 in)
53 mm (2
1
/8 in)
Catch
