DSX-B700/B700W/B710D
18
Sony CONFIDENTIAL
For Authorized Servicer

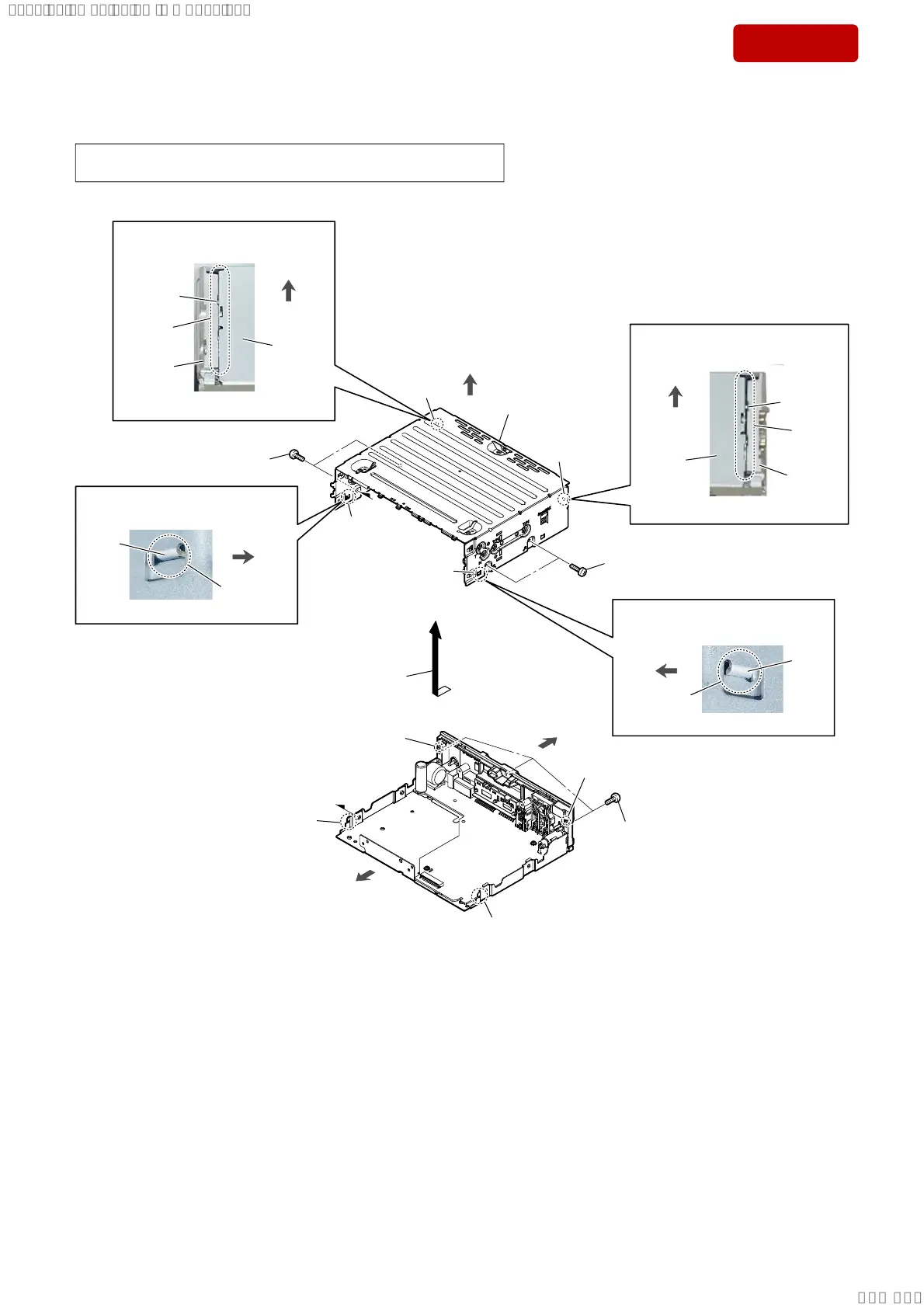

3-3. CHASSIS TOP
A
rib
slot
(See Note 4)
slot
(See Note 5)
front side
A
rib
top side
rear side
boss
(See Note 3)
boss
(See Note 2)
chassis
top
– Side view –
Note 3:
When installing the chassis top,
align the boss and hole.
boss
front side
top side
front side
top side
– Side view –
hole
hole
chassis
top
boss
Note 2:
When installing the chassis top,
align the boss and hole.
heatsink
heatsink
1 two screws
(PTT2.6 u 6)
2 three screws
(PTT2.6 u 10)
1 two screws
(PTT2.6 u 6)
3 Remove the chassis top in
the direction of the arrow.
4 chassis top
slot
rib
– Side view –
slot
rib
– Side view –
Note 4:
When installing the chassis top,
align the rib and slot.
Note 5:
When installing the chassis top,
align the rib and slot.
Note 1:
DSX-B700, DSX-B700W and DSX-B710D can be similarly disassembled.
The illustration of DSX-B700 is used for explanation.
No gap.
No gap.
