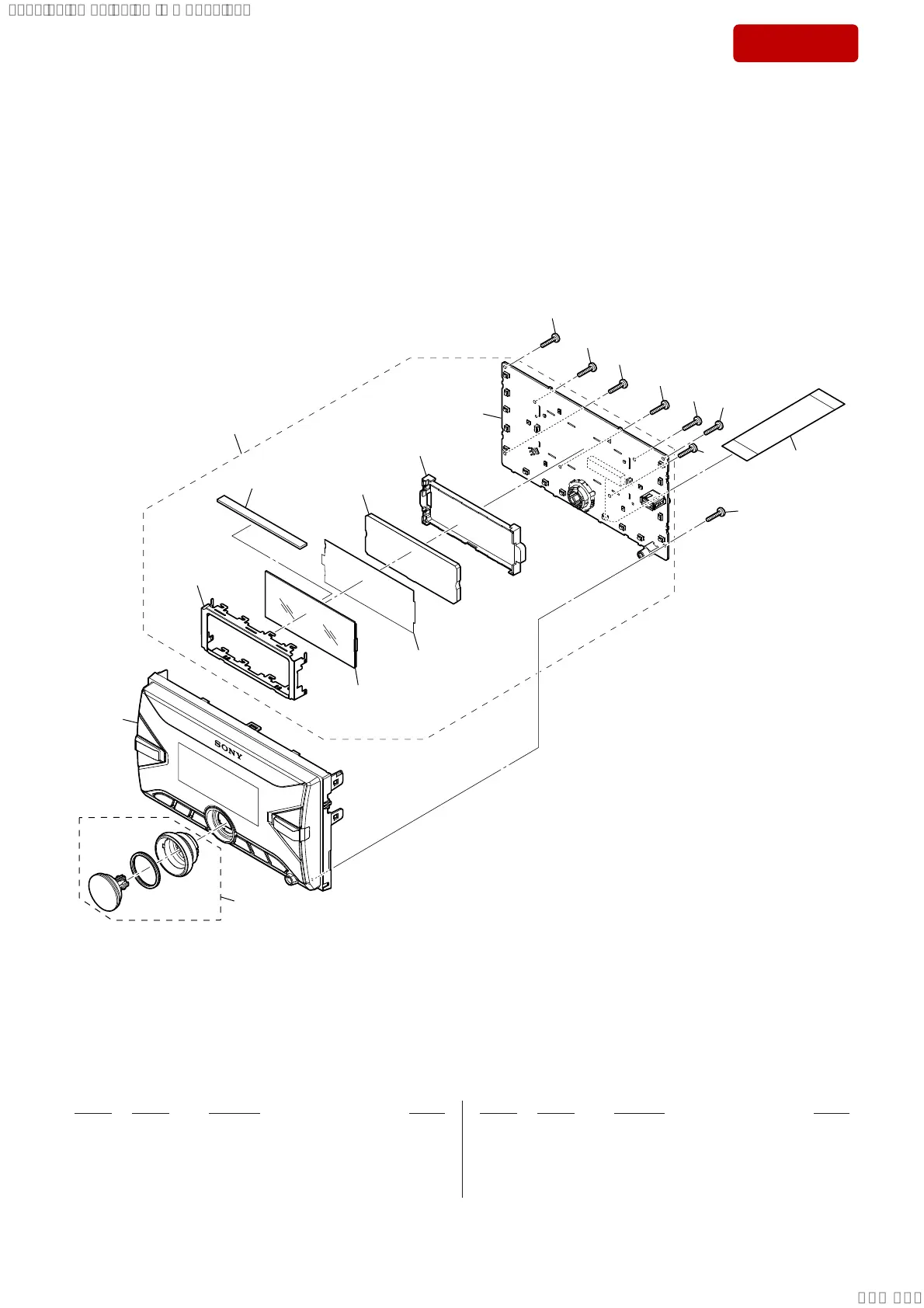

6-2. FRONT PANEL SECTION
FFC1
LCD901
CCB1
51
52
53
not supplied
KEY board
not supplied
not supplied
not supplied
53
53
53
53
53
53
53
54
51 X50002122 PANEL FRONT (SV) ASSY (B700: US, CND)
51 X50002132 PANEL FRONT (SV) ASSY (B700W)
51 X50002142 PANEL FRONT (SV) ASSY (B700: AEP, UK, E, AUS)
51 X50002162 PANEL FRONT (SV) ASSY (B710D)
52 A5004736A KEY BOARD, COMPLETE
53 327572811 SCREW (+B, TT, P-TYPE, 2XL) (L = 6.0 mm)
54 X25951881 KNOB (VOL) (SV) ASSY
CCB1 178096841 CONDUCTIVE BOARD, CONNECTION
FFC1 184915021 CABLE FLEXIBLE FLAT (22 CORE)
LCD901 100185811 LIQUID CRYSTAL DISPLAY
