DSX-B700/B700W/B710D
20
Sony CONFIDENTIAL
For Authorized Servicer

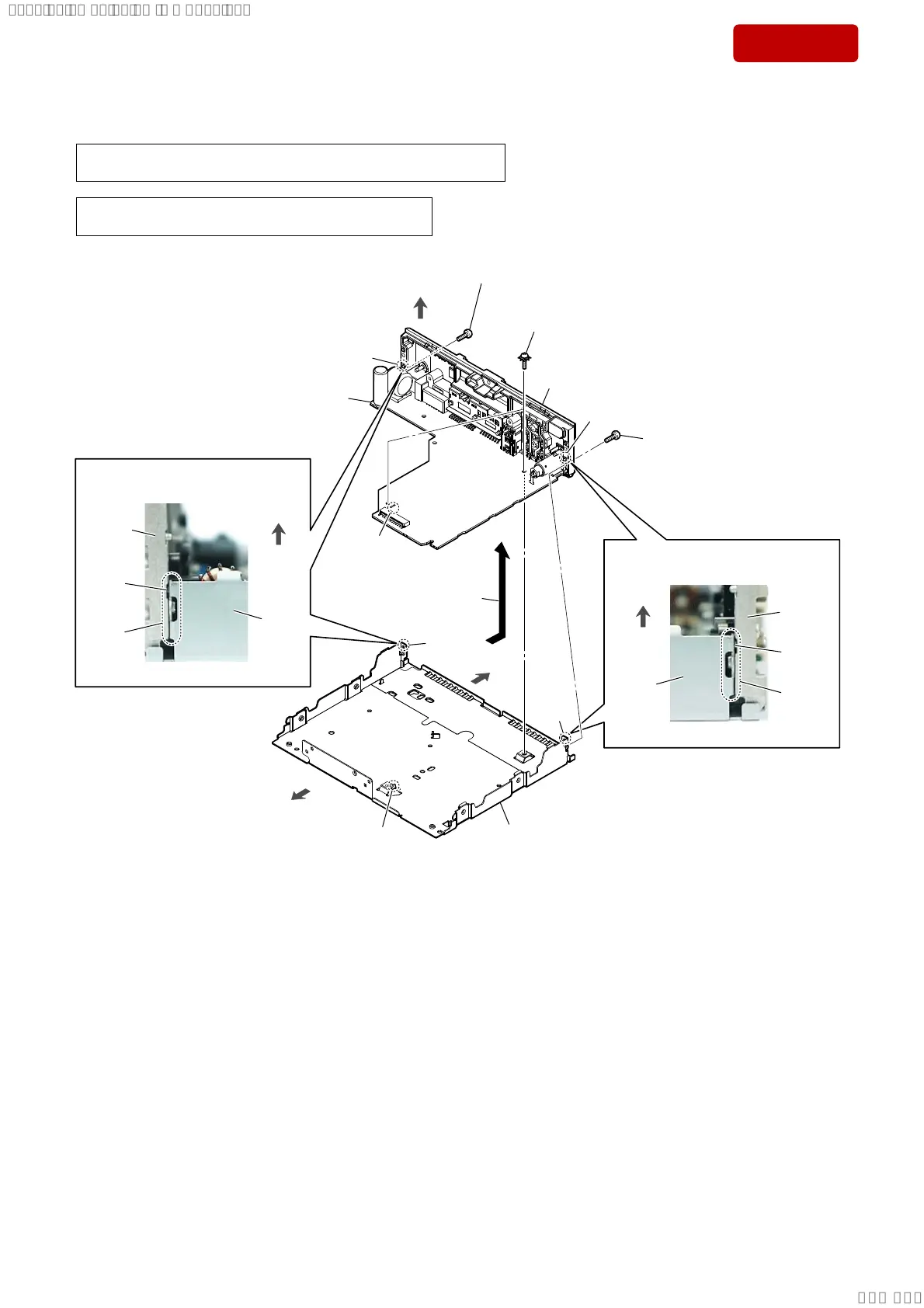

3-5. MAIN BOARD
hole
2 screw
(PTT2.6
u 10)
2 screw
(PTT2.6 u 10)
3 Remove the MAIN
board in the direction
of the arrow.
1 two ground point screws
(PTT2.6 u 6)
4 rib
hole
hole
boss
boss
5 MAIN board (See Note 2)
Note 3:
When installing the MAIN board,
align the hole and rib.
cover bottom block
heatsink
heatsink
No gap.
– Side view –
Note 4:
When installing the MAIN board,
align the boss and hole.
cover
bottom
boss
top side
Note 1:
DSX-B700, DSX-B700W and DSX-B710D can be similarly disassembled.
The illustration of DSX-B700 is used for explanation.
front side
top side
rear side
Note 2:
When replacing the MAIN board, make sure to refer to
“NOTE OF REPLACING THE MAIN BOARD” on page 5.
heatsink
– Side view –
Note 4:
When installing the MAIN board,
align the boss and hole.
No gap.
boss
top side
cover
bottom
SYSSET
