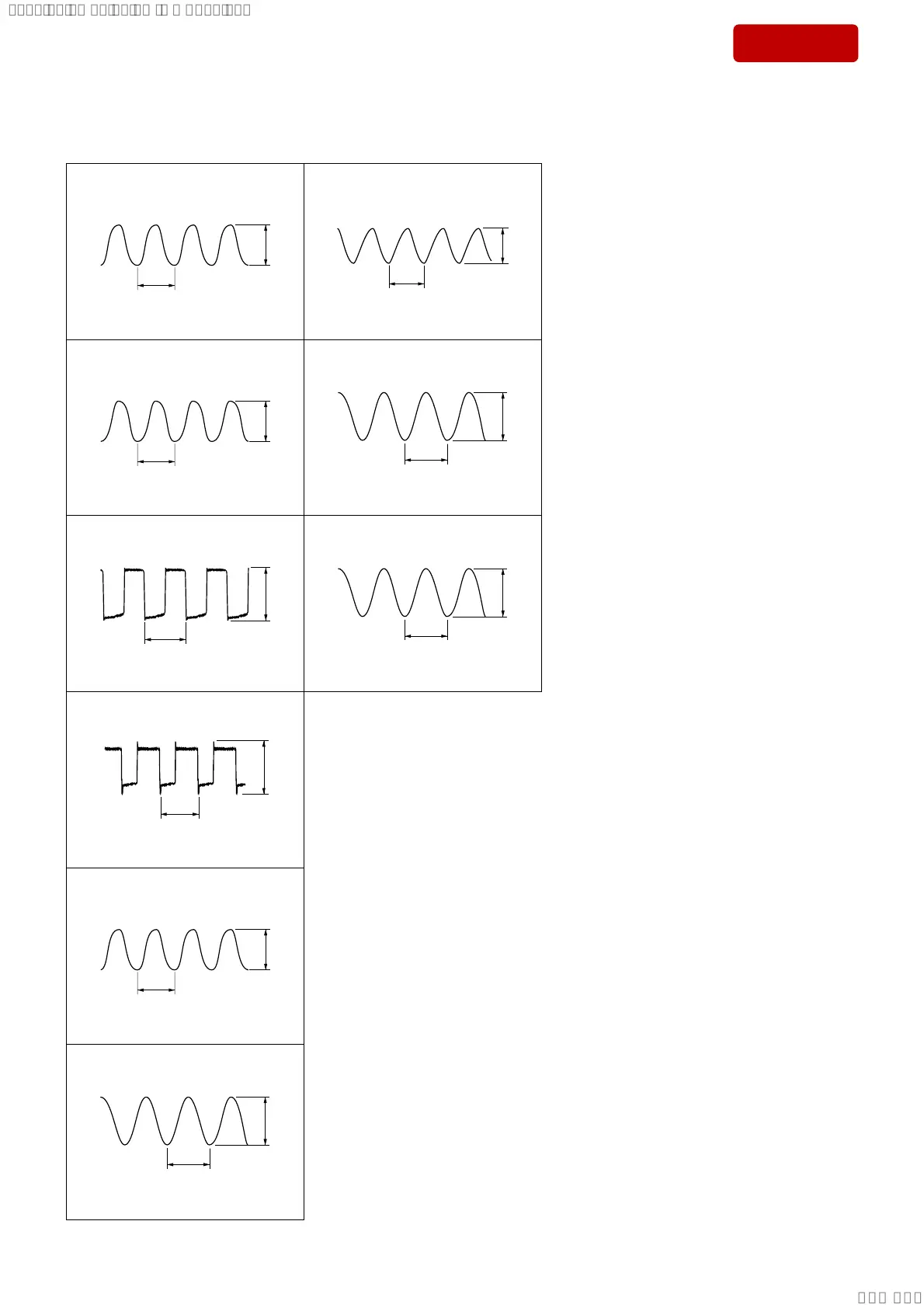

• Waveforms
– MAIN Board –
3
IC1301 7 (BST)
5 V/DIV, 1 Ps/DIV
2.3 Ps
14.8 Vp-p
1
IC501 7 (SUB_X2)
1 V/DIV, 20 Ps/DIV
30.4 Ps
1.8 Vp-p
2
IC501 0 (MAIN_X2)
1 V/DIV, 50 ns/DIV
108 ns
2.9 Vp-p
5
IC601 ug (XOUT)
1 V/DIV, 50 ns/DIV
83 ns
2.5 Vp-p
6
IC001 es (XTAL_IN)
200 mV/DIV, 50 ns/DIV
83 ns
590 mVp-p
7
IC101 e; (REF_OUT)
500 mV/DIV, 20 ns/DIV
40.8 ns
740 mVp-p
8
IC101 ed (XTAL)
200 mV/DIV, 20 ns/DIV
41 ns
470 mVp-p
9
IC102 6 (XTO)
2 V/DIV, 20 ns/DIV
40.8 ns
2.9 Vp-p
4
IC1900 7 (BST)
10 V/DIV, 1 Ps/DIV
2 Ps
18.8 Vp-p
