DSX-B700W/DSX-B700
5-003-283-00(1)

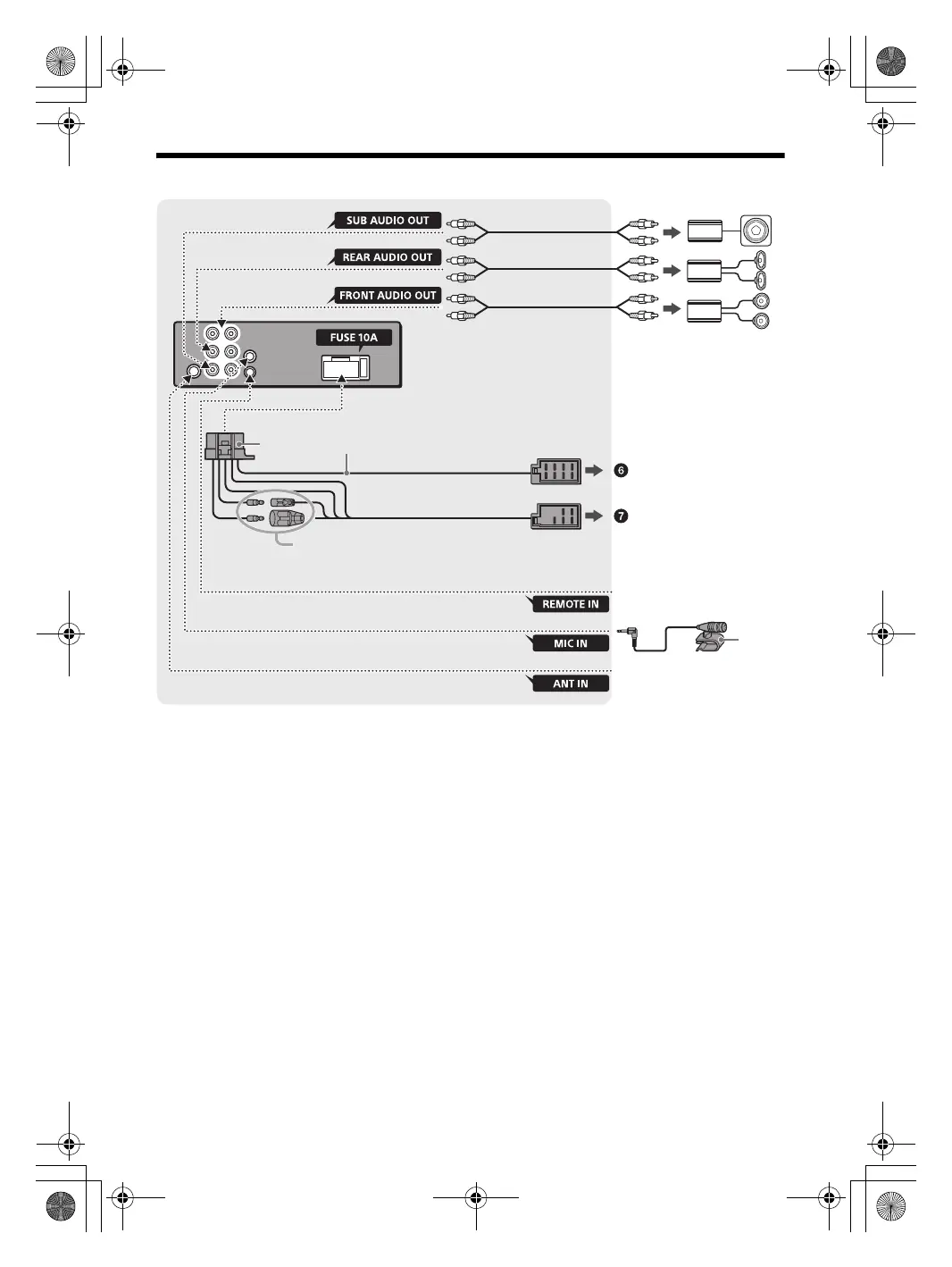

Connection (for Europe models)
*1 Not supplied
*2 Speaker impedance: 4 – 8 × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a
wired remote control (not supplied).
For details on using the wired remote control, see
“Using the wired remote control” (page 00).
*5 Whether in use or not, route the microphone input
cord such that it does not interfere with driving
operations. Secure the cord with a clamp, etc., if it is
installed around your feet.
For details on installing the microphone, see
“Installing the microphone” (page 00).
*6 Depending on the type of car, use an adaptor (not
supplied) if the antenna (aerial) connector does not
fit.
from a car antenna (aerial)*
6
*
3
*
3
*
3
Subwoofer*
1
Power amplifier*
1
For details, see “Making
connections” (page 38).
*
5
from a wired remote control
(not supplied)*
4
See “Power connection diagram”
(page 39) for details.
*
2
