Sony DVP-CX985V Service Manual
5
of 1
of 1 rating
150 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
DV
P-CX985V
75
75
7-26.

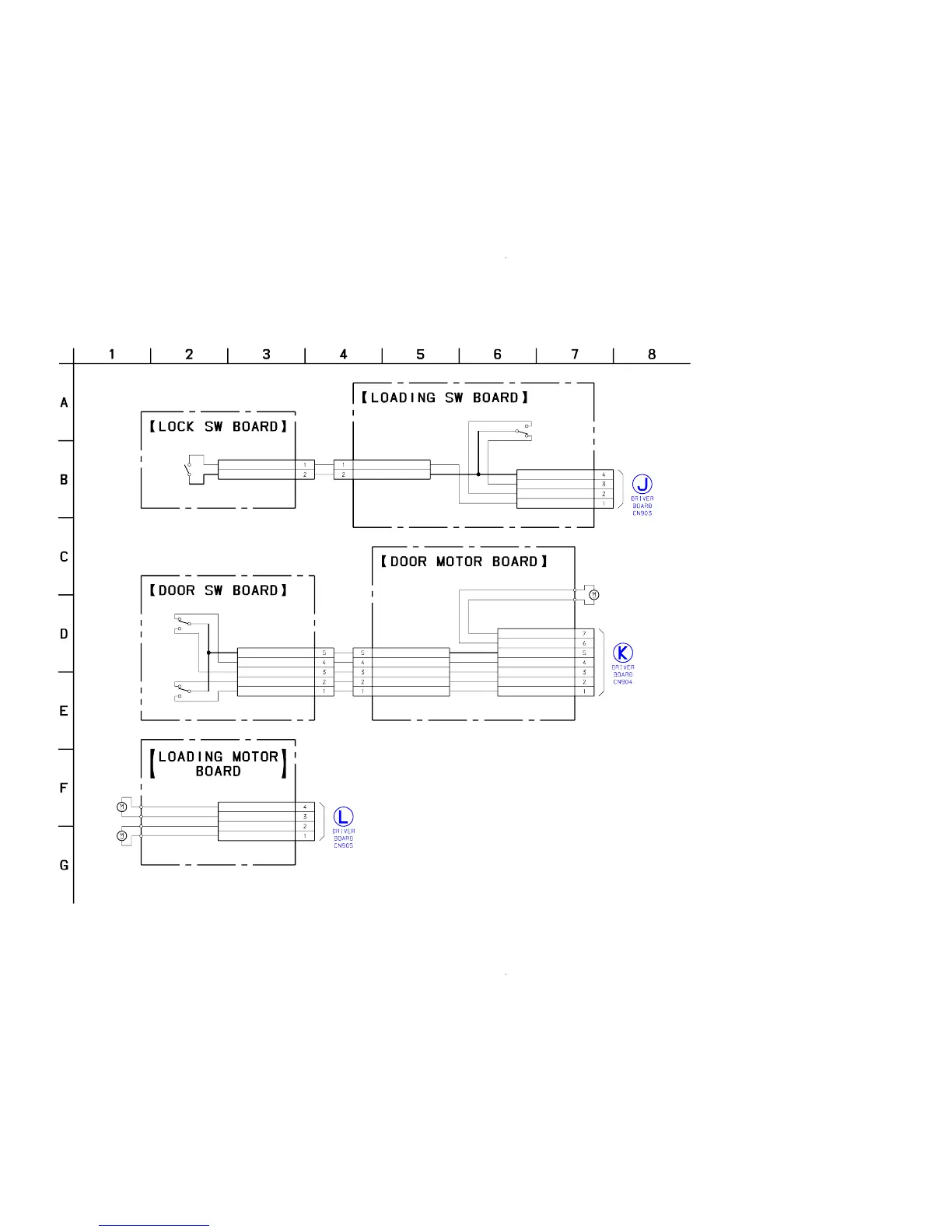

SCHEMA
TIC DIA
GRAM – MOT
OR/SWITCH Section –
M603
S622
CNP621
CN621
CNP603
CNP602
CN611
CNP611
CNP601
S612
S611
M602
M601
S621
2P
2P
4P
7P
5P
5P
4P
GND
T_LOCK
GND
T_LOCK
DOOR MOTOR
DOOR MOTOR
GND
POPUP
POPDOWN
GND
POPUP
POPDOWN
GND
POPUP
POPDOWN
T_LOCK
GND
LD_IN
LD_OUT
DR_OP
DR_CLS
DR_OP
DR_CLS
DR_OP
DR_CLS
(LOCK)
(POP)
UP
DOWN
(DOOR)
OPEN
CLOSE
LOADING MOTOR
LOADING MOTOR
TABLE MOTOR
TABLE MOTOR
(LOADING)
(TABLE)
(DOOR)
(LOADING)
OUT
IN
↑
(Page 73)
(Page 73)
(Page 73)
74
76
Table of Contents
Self Diagnosis Function
2
Following Discs
4
Region Code
4
This Player Can Play the
4
Table of Contents
5
1 Servicing Notes
6
2 General
10
3 Disassembly
11
Disassembly Flow
11
Case
12
MB Board
12
AV Board
13
Bracket (L)/(R)
13
Front Panel Section
14
Cover (PT)/(CDM)
14
DVBU26 Assy
15
Power Block
15
Table (400) Assy
16
Door Block, Base (Door) Assy
16
DC Motor (Door) (M603)
17
Holder (Table Sensor 400)
17
SENS out Board, D. SENS in Board
18
Pop-Up (400) Assy
18
Door SW Board
19
Lock SW Board, Loading SW Board
20
CD/DVD Mechanism Deck Block (CDM62-DVBU26)
21
Motor (400) Assy (Loading) (M602)/(Table) (M601), Loading Motor Board
21
Optical Pick-Up (KHM-290AAA)
22
4 Test Mode
23
5 Mechanical Adjustments
45
6 Electrical Adjustments
46
7 Diagrams
50
Block Diagram - RF Section
50
Block Diagram - SERVO/CHANGER Section
51
Block Diagram - AUDIO Section
52
Block Diagram - VIDEO Section
53
Block Diagram - PANEL/POWER SUPPLY Section
54
Note for Printed Wiring Boards and Schematic Diagrams
55
MB Board (Component Side)
56
Printed Wiring Board MB Board (Component Side)
56
Printed Wiring Board - MB Board (Conductor Side)
57
Schematic Diagram – MB Board (1/14)
58
Schematic Diagram - MB Board (2/14)
59
Schematic Diagram - MB Board (1/14)
60
Schematic Diagram - MB Board (3/14)
60
Schematic Diagram - MB Board (4/14)
61
Schematic Diagram - MB Board (5/14)
62
Schematic Diagram - MB Board (6/14)
63
Schematic Diagram - MB Board (7/14)
64
Schematic Diagram - MB Board (8/14)
65
Schematic Diagram - MB Board (9/14)
66
Schematic Diagram - MB Board (10/14)
67
Schematic Diagram - MB Board (11/14)
68
Schematic Diagram - MB Board (12/14)
69
Schematic Diagram - MB Board (13/14)
70
Schematic Diagram - MB Board (14/14)
71
Printed Wiring Board - DRIVER Board
72
Schematic Diagram - DRIVER Board
73
Printed Wiring Boards - MOTOR/SWITCH Section
74
Schematic Diagram - MOTOR/SWITCH Section
75
Printed Wiring Boards - SENSOR Section
76
Schematic Diagram - SENSOR Section
77
Printed Wiring Board - AV Board (Component Side)
78
Printed Wiring Board - AV Board (Conductor Side)
79
Printed Wiring Board - RS-232C Board
80
Schematic Diagram - AV (1/3)/RS-232C Boards
81
Schematic Diagram - AV Board (2/3)
82
Schematic Diagram - AV Board (3/3)
83
PANEL-L Board (Component Side)
84
PANEL-L Board (Conductor Side)
85
Schematic Diagram - PANEL-L Board (1/2)
86
Schematic Diagram - PANEL-L Board (2/2)
87
Printed Wiring Boards - PANEL Section
88
Schematic Diagram - PANEL Section
89
Printed Wiring Board - POWER Board
90
Schematic Diagram - POWER Board
91
IC Pin Function Description
100
8 Exploded Views
124
Overall Section
124
Front Panel Section
125
Power Block Section
126
Table Section
127
Chassis Section
128
Base (Door) Section
129
CD/DVD Mechanism Deck Section-1 (CDM62-DVBU26)
130
CD/DVD Mechanism Deck Section-2
131
(Cdm62-Dvbu26)
131
CD/DVD Mechanism Deck Section-3 (CDM62-DVBU26)
132
CD/DVD Mechanism Deck Section-4
132
(Cdm62-Dvbu26)
133
CD/DVD Mechanism Deck Section
133
Optical Pick-Up Section (DVBU26)
134
9 Electrical Parts List
135
Revision History
150
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Sony DVP-CX985V and is the answer not in the manual?
Ask a question
Sony DVP-CX985V Specifications
General
Brand
Sony
Model
DVP-CX985V
Category
DVD Player
Language
English
