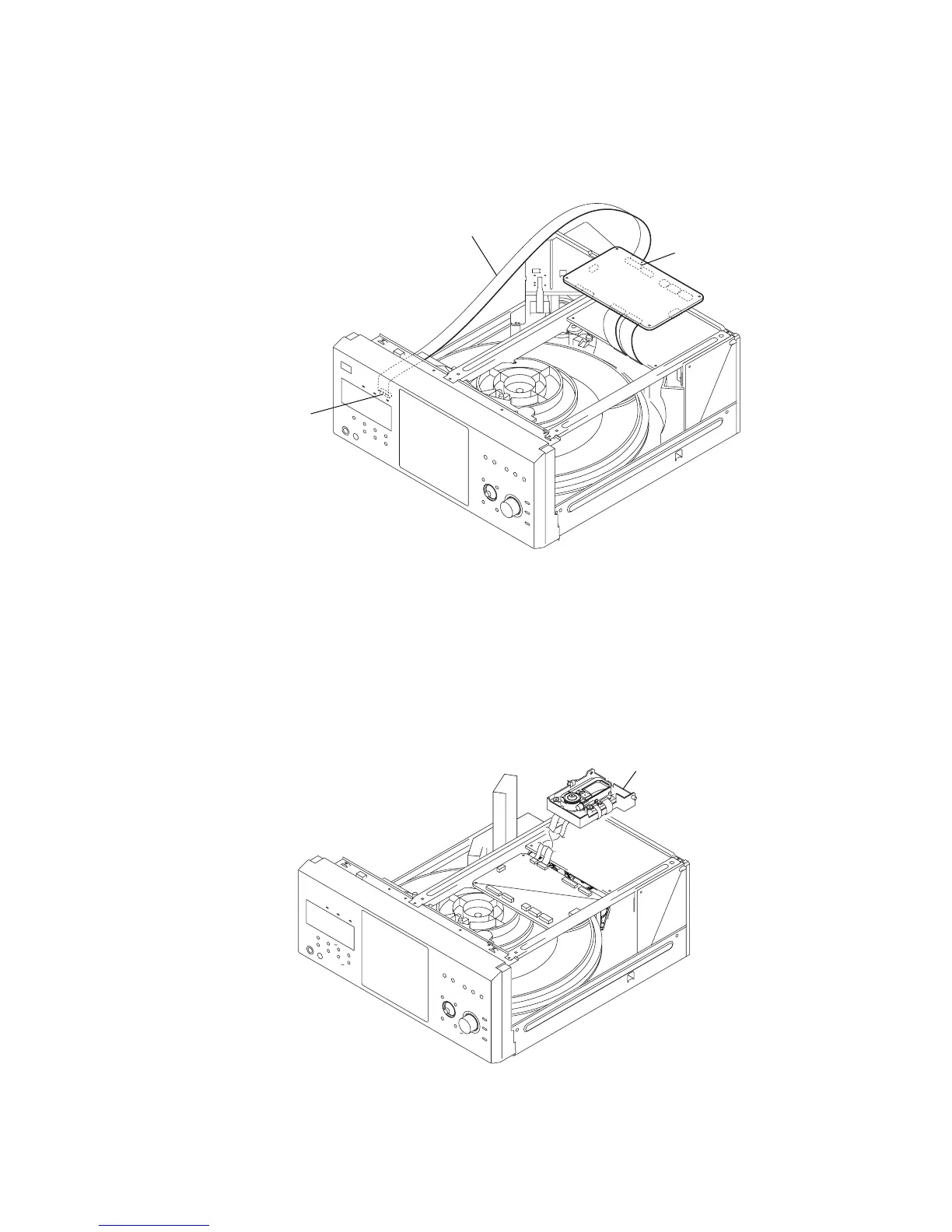

SERVICE POSITION
– MB board –
– Optical pick-up block –
MB board (CN102)
Connect the jig (J-2501-086-A) to
MB board (CN102) and
panel-L board (CN1005).
panel-L board
(CN1005)
optical pick-up bloc
k
(DVBU26)
