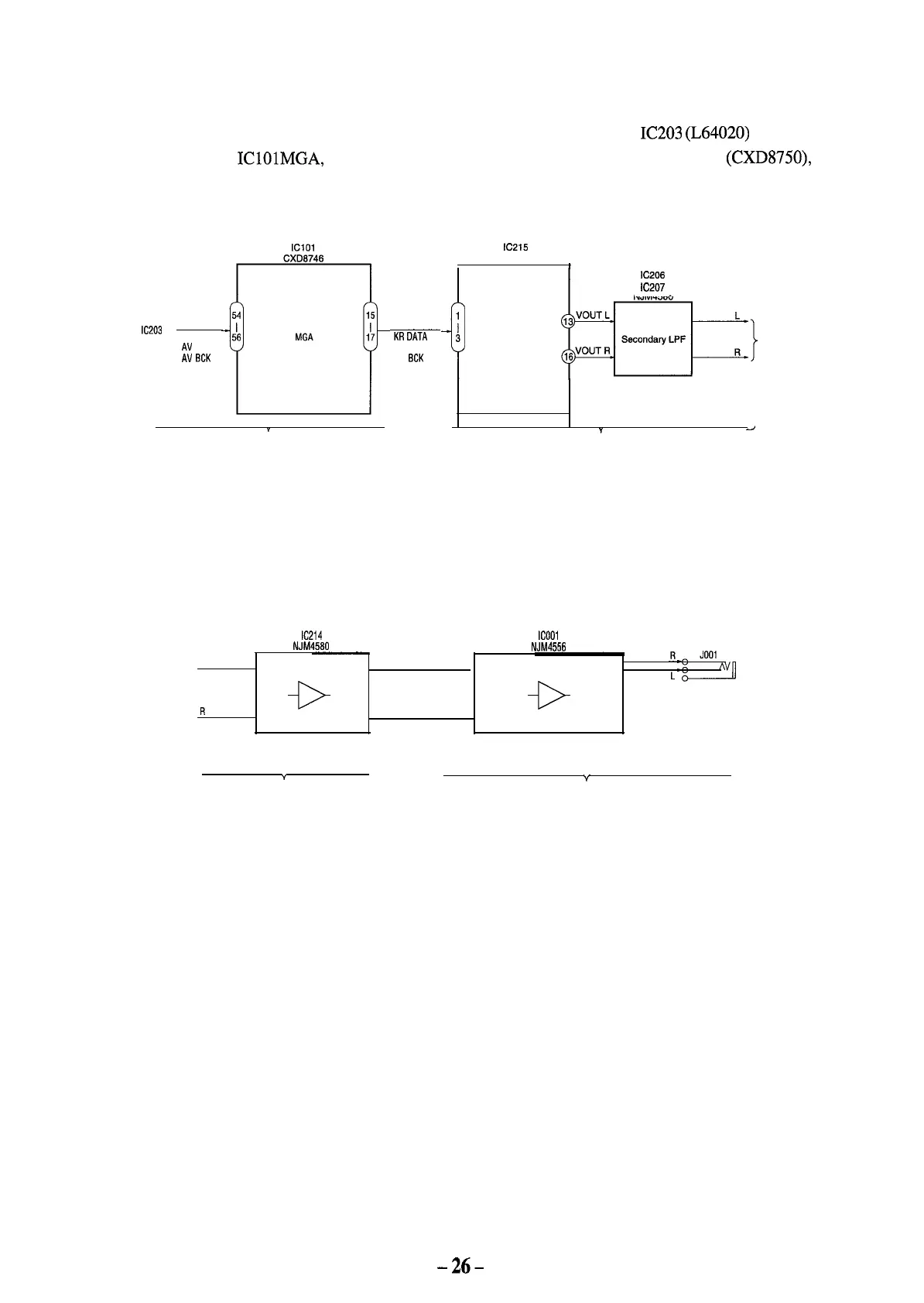

2-10. Audio L and R 2ch Signal Block
The audio signal data for 2 channels of the MB-78 board AV decoder IC203 (L64020) is passed
through IClOlMGA, passed through the digital filter in the AU197 board IC215 (CXD8750),
converted to analog signal in the DAC, and passed through the LDF to become the line out
signal.
From
IC203
-
AV Decoder
AV DATA
AV LRCK
AV
BCK
KRDATA
KR LRCK
KR
ECK
IC21.5
CXD6750
, t
Digital filter
DAC
IC.206
IC207
NJM4560
I
Line out
I
MB-76 board
I
AU-197 board
Figure 2-14. 2ch signal block
The line out signal line is also branched out to IC214 to become the headphones amplifier
output.
IC214
ICOOl
L
NJM4580
HPL
NJM4556
R
u
HPR
u
Y
Y
AU197 board
HP-96 board
Figure 2-15. Headphones amplifier
-26-
