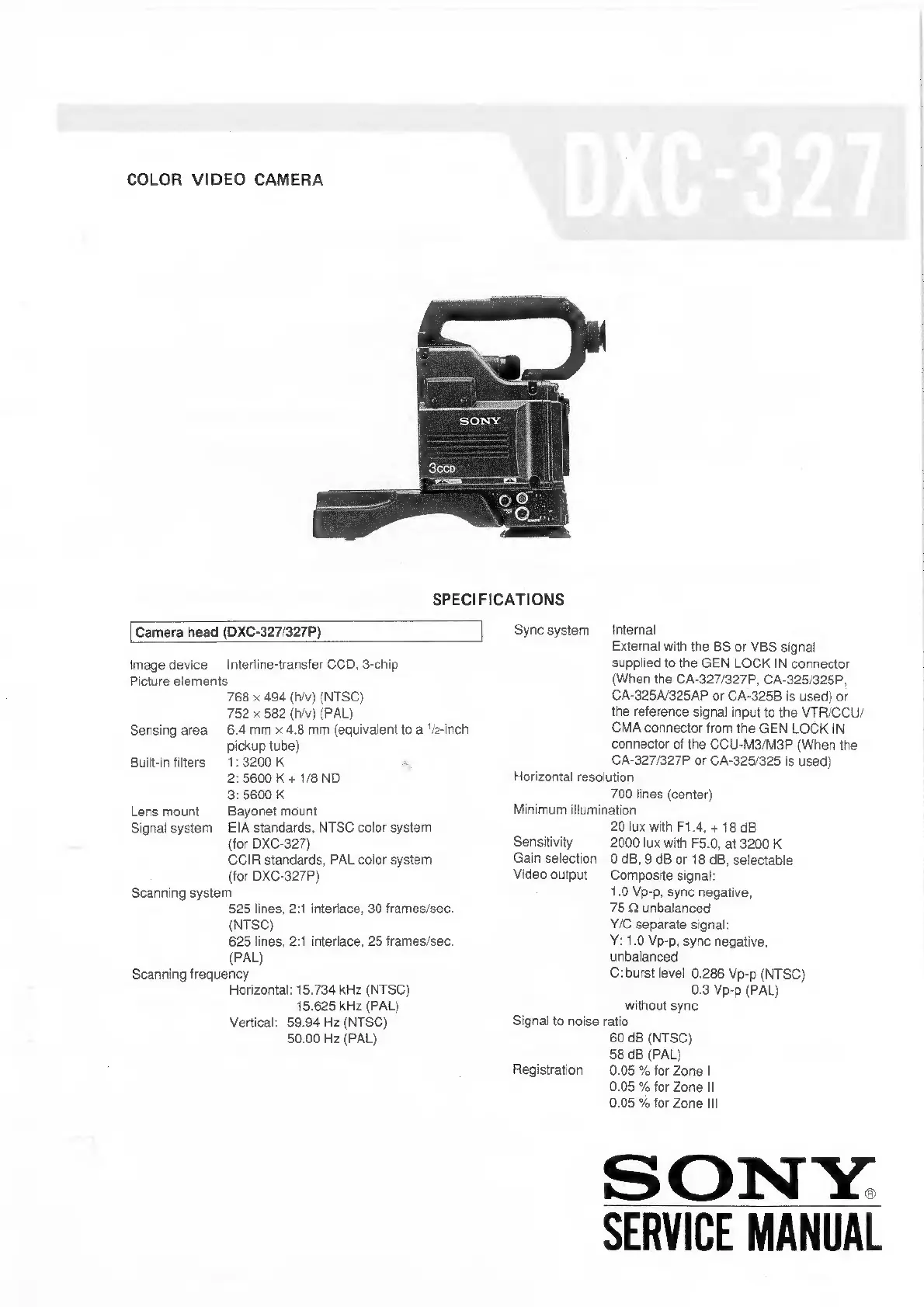

COLOR VIDEO CAMERA
SPECIFICATIONS
Camera head (DXC-327/327P)
Image device
Interline-transfer CCD, 3-chip
Picture elements
Sensing area
Built-in filters
Lens mount
Signal system
768 x 494 (hiv) (NTSC)
752 x 582 (hiv) (PAL)
6.4 mm x 4.8 mm (equivalent to a ‘/2-inch
pickup tube)
1: 3200 K
2: 5600 K + 1/8 ND
3: 5600 K
Bayonet mount
EIA standards, NTSC color system
(for DXC-327)
CCIR standards, PAL color system
(for DXC-327P)
Scanning system
525 lines, 2:1 interlace, 30 frames/sec.
(NTSC)
625 lines, 2:1 interlace, 25 frames/sec.
(PAL)
Scanning frequency
Horizontal: 15.734 kHz (NTSC)
15.625 kHz (PAL)
Vertical: 59.94 Hz (NTSC)
50.00 Hz (PAL)
Sync system
Internal
External with the BS or VBS signal
supplied to the GEN LOCK IN connector
(When the CA-327/327P, CA-325/325P,
CA-325A/325AP or CA-325B is used) or
the reference signal input to the VTR/CCU,
CMA connector from the GEN LOCK IN
connector of the CCU-M3/M3P (When the
CA-327/327P or CA-325/325 is used)
Horizontal resolution
700 lines (center)
Minimum illumination
Sensitivity
Gain selection
Video output
20 lux with F1.4, + 18 dB
2000 lux with F5.0, at 3200 K
0 dB, 9 dB or 18 dB, selectable
Composite signal:
1.0 Vp-p, sync negative,
75 Q unbalanced
Y/C separate signal:
Y: 1.0 Vp-p, sync negative,
unbalanced
C:burst level 0.286 Vp-p (NTSC)
0.3 Vp-p (PAL)
without sync
Signal to noise ratio
Registration
60 dB (NTSC)
58 dB (PAL)
0.05 % for Zone |
0.05 % for Zone Il
0.05 % for Zone III
