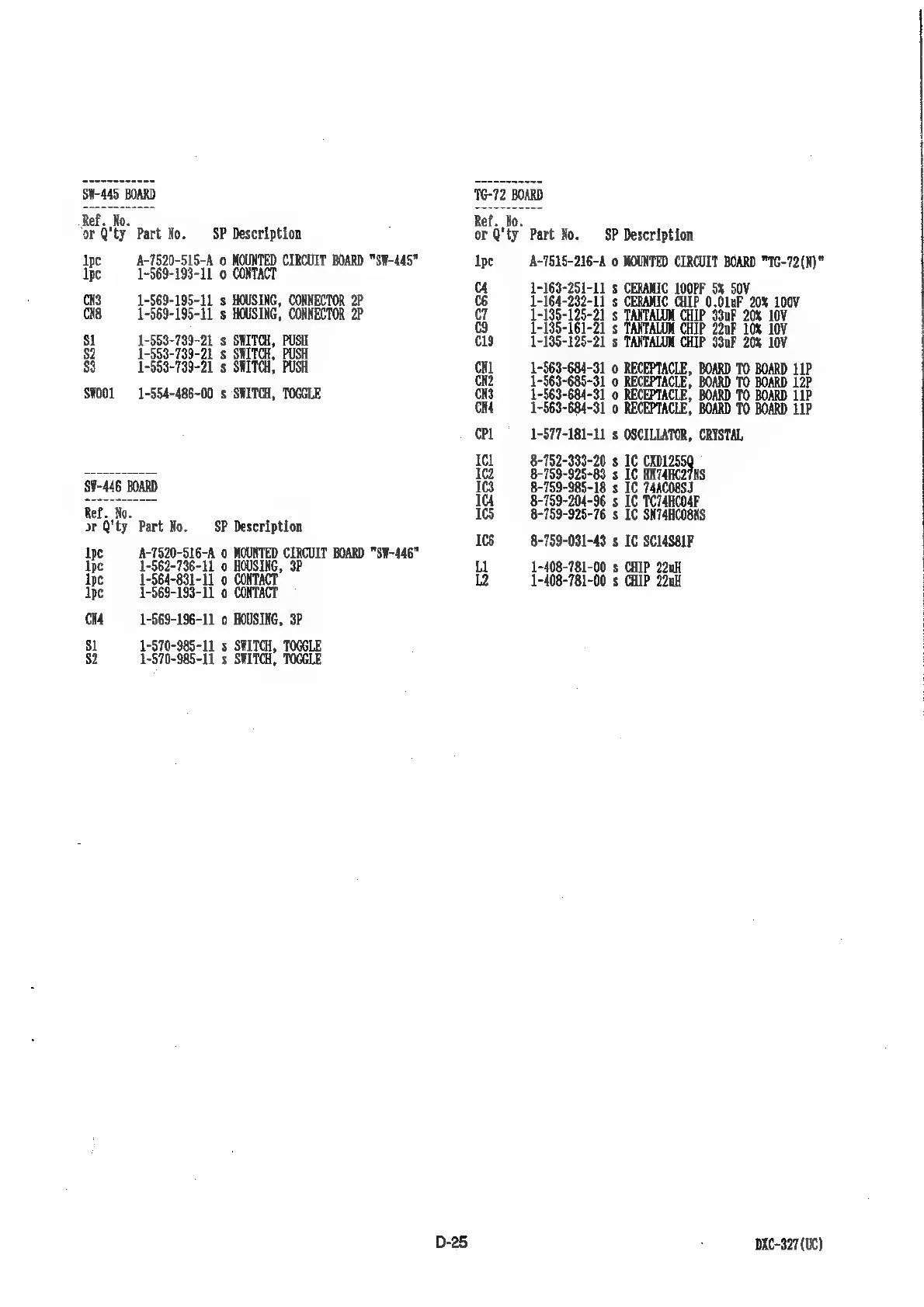

Sony DXC-327 - Page 74

ar Q ty Part No.
Ipe
Ape
CH3
(NS
Sl
$2
83
SwO01
* Part Wo.
SP Description
A-7520-515-A 0 MOUNTED CIRCUIT BOARD "SW-445"
1-569-193-11 0 CONTACT
1-569-195-11 s HOUSING, CONNECTOR 2P
1-569-195-11 s HOUSING, CONNECTOR 2P
1-553-739-21 s SWITCH, PUSH
1-553-739-21 s SWITCH, PUSH
1-553-739-21 s SWITCH, PUSH
1-554-486-00 s SWITCH, TOGGLE
SP Description
A-7520-516-A 0 MOUNTED CIRCUIT BOARD "SW-446"
1-562-736-11 0 HOUSING, 3P
1-564-831-11 0 CONTACT
1-569-193-11 0 CONTACT
1-569-196-11 0 HOUSING, 3P
1-570-985-11 s SWITCH, TOGGLE
1-570-985-11 s SWITCH, TOGGLE
D-25
or Q i Part No.
SP Description
A-7515-216-A 0 MOUNTED CIRCUIT BOARD "TG-72(N)"
1-163-251-11 s CERAMIC 1OOPF 5% SOV
1-164-232-11 s CERAMIC CHIP 0.01uF 20% 100V
1-139-125-21 s TANTALUM CHIP 33uF 20% 10V
1-135-161-21 s TANTALUM CHIP 22uF 10% 10V
1-185-125-21 s TANTALUM CHIP 33uF 20% 10V
1-563-684-31 0 RECEPTACLE, BOARD TO BOARD 11P
1-563-685-31 0 RECEPTACLE, BOARD TO BOARD 12P
1-563-684-31 0 RECEPTACLE, BOARD TO BOARD is
1-563-684-31 0 RECEPTACLE, BOARD TO BOARD 1
1-577-181-11 s OSCILLATOR, CRYSTAL
te te 333-20 s IC CXD125:
759-925- 83s IC SN
8-75 204-96 s IC TC74HCO4F
8-759-925-76 s 1C SN74HCO8NS
8-759-031-43 s IC SC14S81F
1-408-781-00 s CHIP 22uH
1-408-781-00 s CHIP 22uH
DXC-327(UC)
