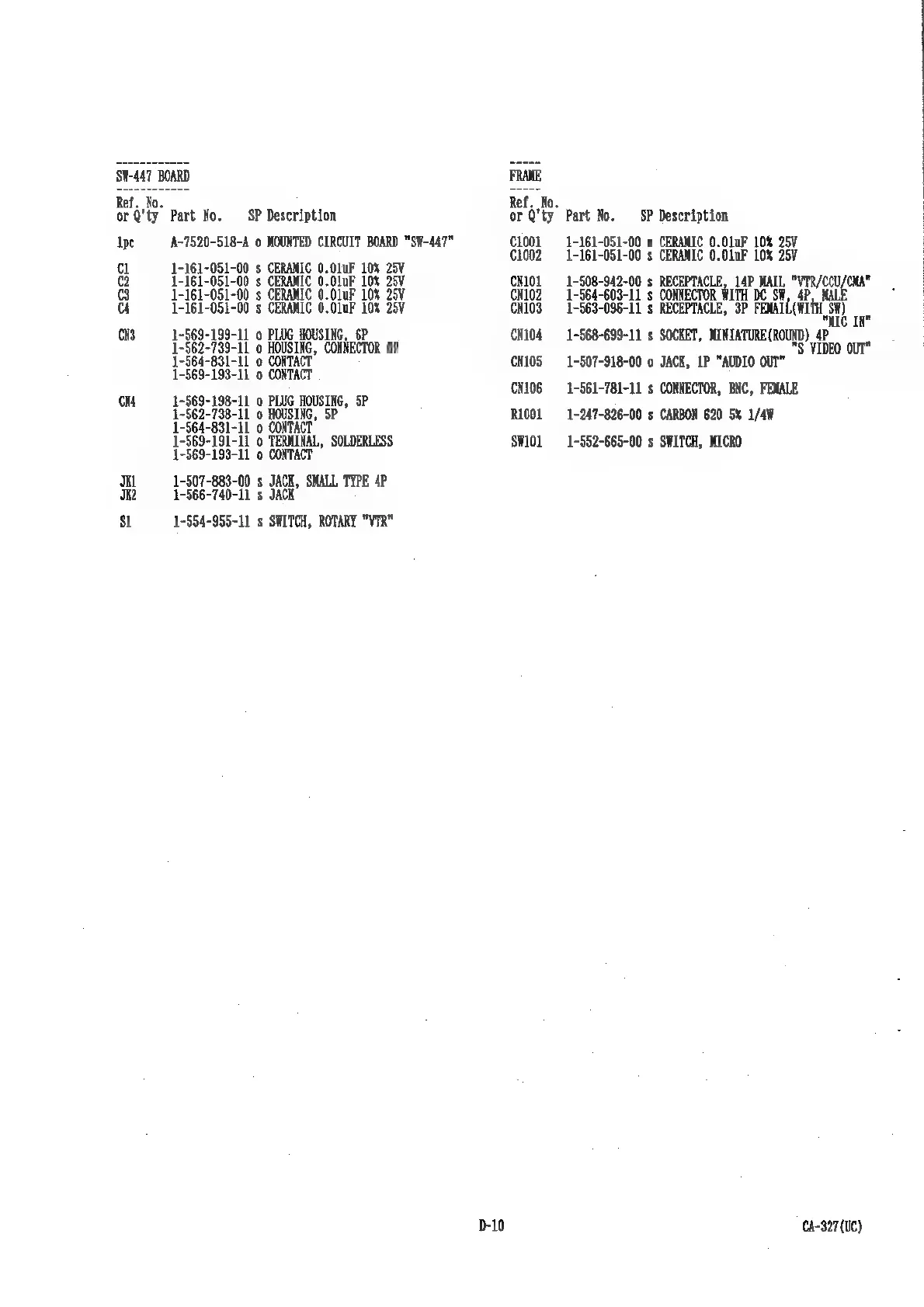

Sony DXC-327 - Page 97

Ref. No.
or Q'ty Part No.
Na
KL
Jk
SL
SP Description
A-7520-518-A 0 MOUNTED CIRCUIT BOARD "S¥-447"
1-161-051-00 s CERAMIC 0.01uF 10% 25V
1-161-051-00 s CERAMIC 0.01uF 10% 25V
1-161-051-00 s CERAMIC 0.01uF 10% 25V
1-161-051-00 s CERAMIC 0.01uF 10% 25V
1-569-199-11 0 PLUG HOUSING, 6P
1-562-739-11 0 HOUSING, CONNECTOR 6P
1-564-831-11 0 CONTACT
1-569-193-11 0 CONTACT
9-198-11 0 PLUG HOUSING, 5P
2-738-11 0 HOUSING, 5P
4-831-11 0 CONTACT
1-569-191-11 0 TERMINAL, SOLDERLESS
1-569-193-11 0 CONTACT
1-507-883-00 s JACK, SMALL TYPE 4P
1-566-740-11 s JACK
1-554-955-11 s SWITCH, ROTARY "VIR"
D-10
Part Ho. SP Description
1-161-051-00 s CERAMIC 0.01uF 10% 25V
1-161-051-00 s CERAMIC 0.01uF 10% 25V
1-508-942-00 s RECEPTACLE, 14P MAIL. “yee
1-564-603-11 s CONNECTOR WITH DC SW, 4P.
1-563-096-11 s RECEPTACLE, 3P PEMAIL(WI 1) 1.
1-568-699-11 s SOCKET, MINIATURE(ROUND) 4P
"S VIDEO OUT"
1-507-918-00 0 JACK, 1P “AUDIO OUT"
1-561-781-11 s CONNECTOR, BNC, FEMALE
1-247-826-00 s CARBON 620 5% 1/4¥
1-552-665-00 s SWITCH, MICRO
