2-1
DXC-D30WS/P(E)/V1
SECTION 2
SERVICE INFORMATION

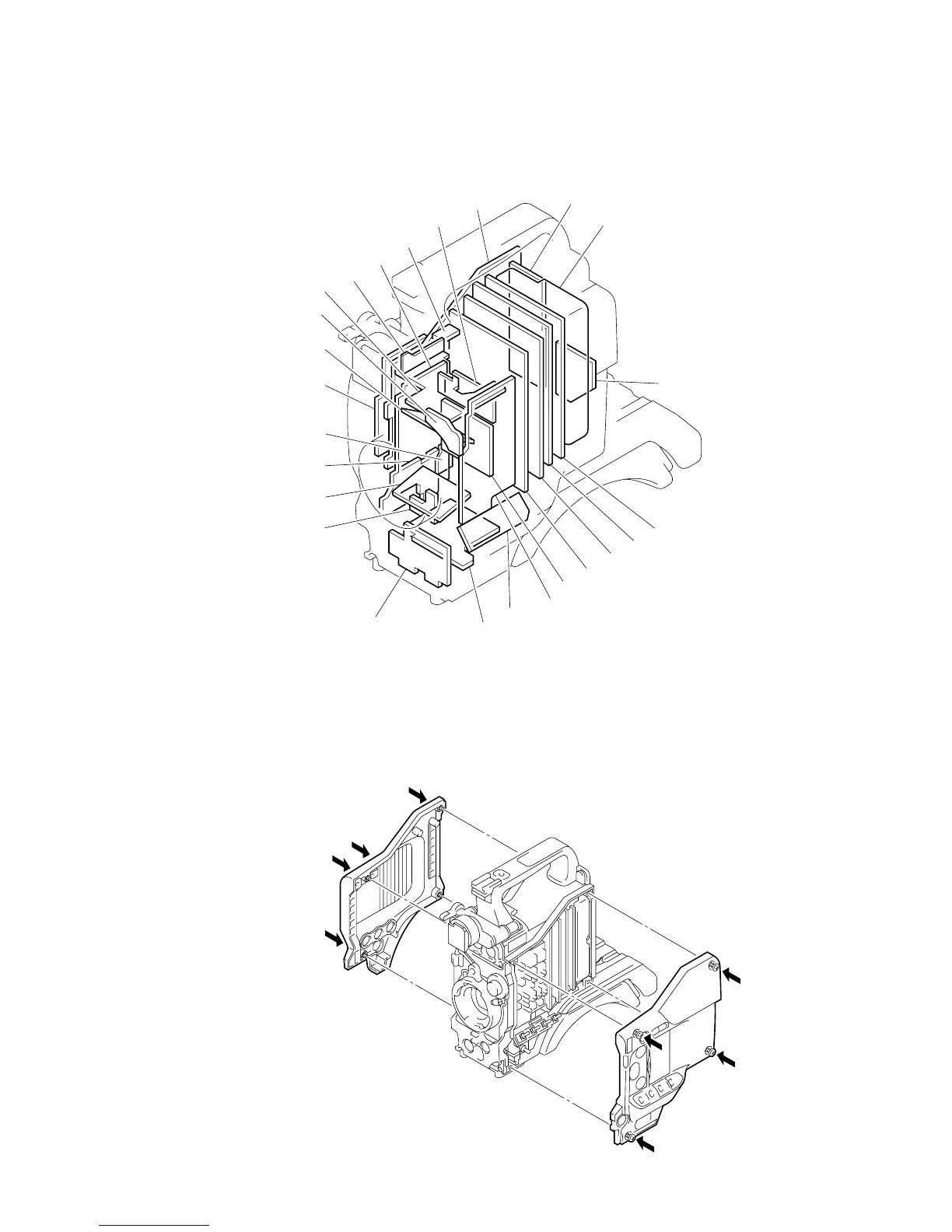

2-1. BOARD LAYOUT
2-2. REMOVAL OF CABINET
2-2-1. Removal of Side Plate
Loosen the four screws respectively to remove the side
plates.
SW-791 board
PA-220(G) board
VA-185 board
PR-240 board
IF-700 board
BP-30 board
SW-793 board
SW-792 board
DC-DC converter
CN-1294 board
MB-785 board
CN-1349 board
TG-197 board
CN-1595 board
SE-366 board
PA-219(B) board
AT-125 board
CN-1410 board
CN-1684 board
PA-221(R) board
CN-1194 board
ES-22 board
CN-1594 board
NR-63 board
SW-790 board
