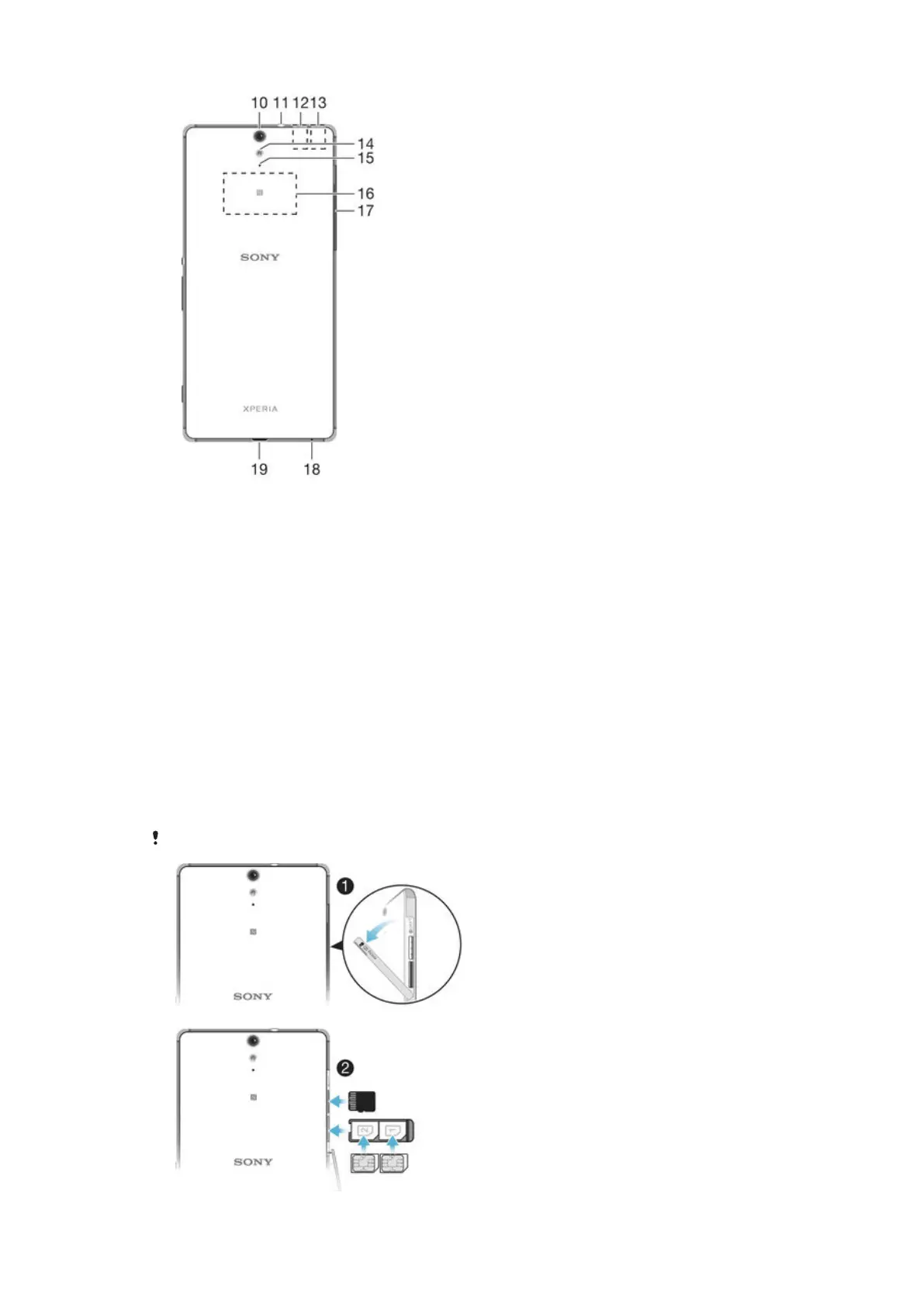

Sony E5563 - Assembly

1. Charging/Notification light
2. Proximity/Light sensor
3. Ear speaker
4. Front camera lens
5. Front camera light
6. Power key
7. Volume/Zoom key
8. Camera key
9. Speaker
10. Main camera lens
11. Headset jack
12. Main Wi-Fi/Bluetooth antenna area
13. GPS antenna area
14. Main camera light
15. Second microphone
16. NFC™ detection area
17. Nano SIM/Memory card slot cover
18. Main microphone
19. Charger/USB cable port
Assembly
Your device only supports nano SIM cards.
8
