Sony ECM-44BMP - Page 11

9

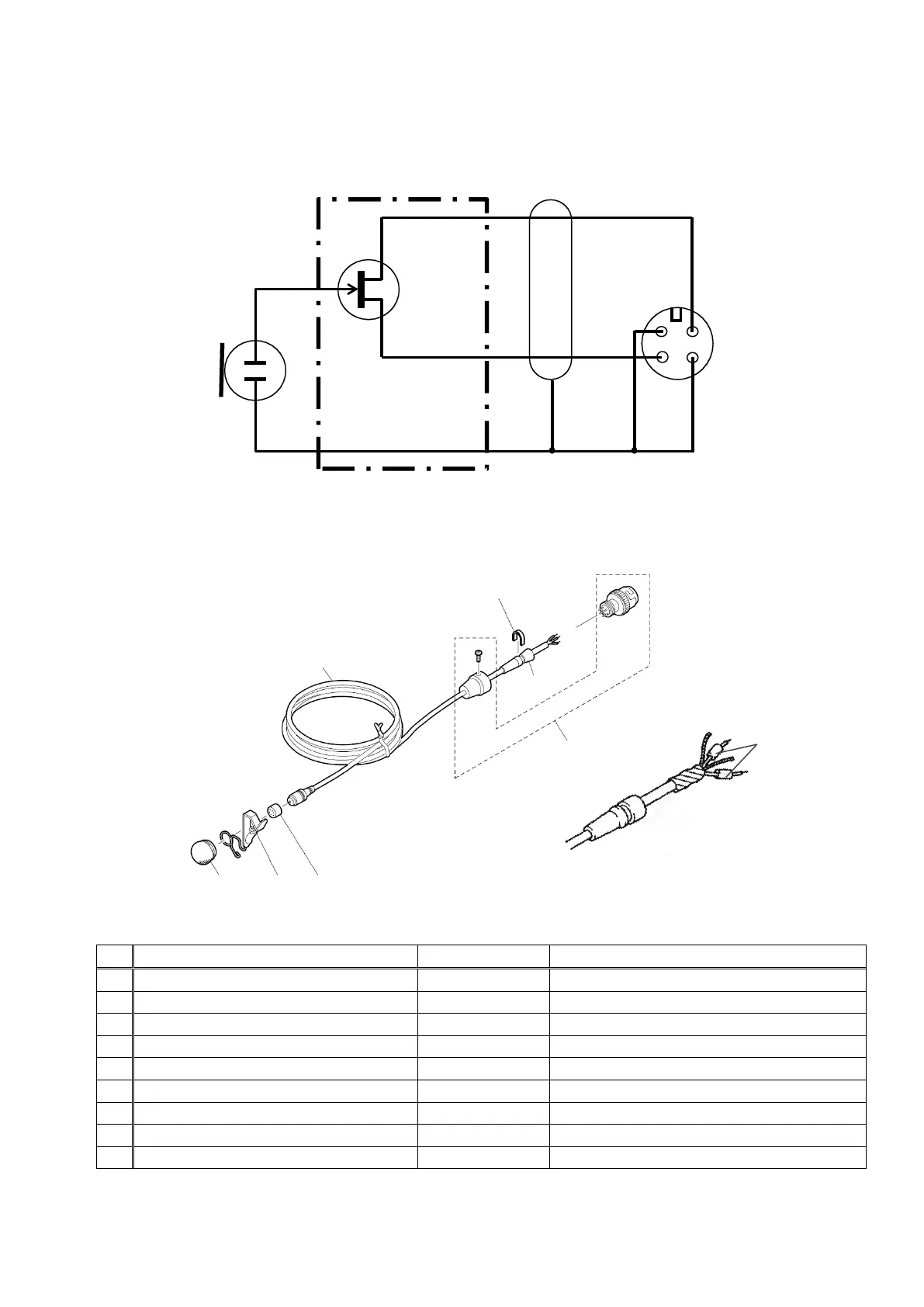

A. Not improved unit for high frequency interference (bushing: black)
1. Schematic diagram
2. Part Required
Part Name
Part No.
Remarks
1
Capsule ASSY
A-1541-734-A
2
Amplifier Case ASSY
A-2203-644-A
Changed from X-2537-418-5
3
Connector (plug)
1-560-155-73
4
Microphone Bushing
2-523-605-11
Color: black, Length: short
5
Cord Clamp
2-523-606-01
6
-
-
Not used
7
Horizontal Holder Clip ASSY
X-2537-404-4
8
Wind screen ASSY
X-2537-410-1
9
Heat shrinkable tube
-
Included in amplifier case ASSY
CABLE
RED
WHITE
SHIELD
AMPLIFIER CASE ASSY
CAPSULE
CN
S
1
2
3
4
Fig. 5
①
②
④
③
⑤
⑦ ⑧
⑨
Fig. 6
