C. Improved unit for high frequency interference (2)(Bushing: Gray and long type)

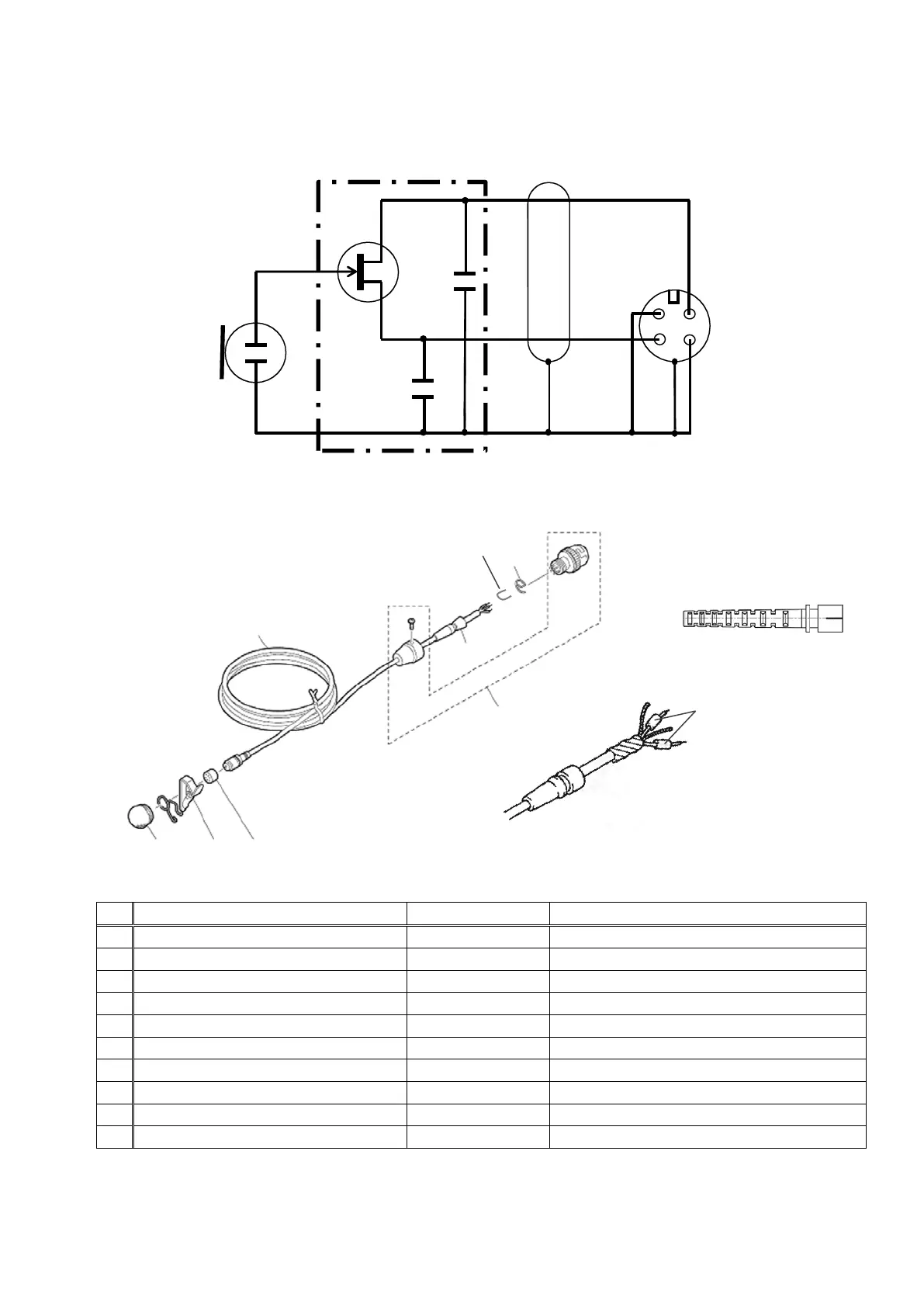

1. Schematic diagram
2. Part Required
Part Name
Part No.
Remarks
1
Capsule ASSY
A-1541-734-A
2
Amplifier Case ASSY
A-2203-645-A
Changed from X-2537-418-5
3
Connector (plug)
1-560-155-73
4
Microphone Bushing
4-589-384-01
Color: gray, Length: long
5
-
-
Not used
6
Ground Ring
3-615-397-01
7
Horizontal Holder Clip ASSY
X-2537-404-4
8
Wind screen ASSY
X-2537-410-1
9
Heat shrinkable tube
-
Included in amplifier case ASSY
10
Jumper wire
-
Included in amplifier case ASSY
CABLE
RED
WHITE
SHIELD
AMPLIFIER CASE ASSY
CAPSULE
CN
S
1
2
3
4
④
①
②
④
③
⑥
⑦
⑧
⑩
⑨
Fig. 35
Fig. 36
