Sony ECM-44BMP - Page 17

15

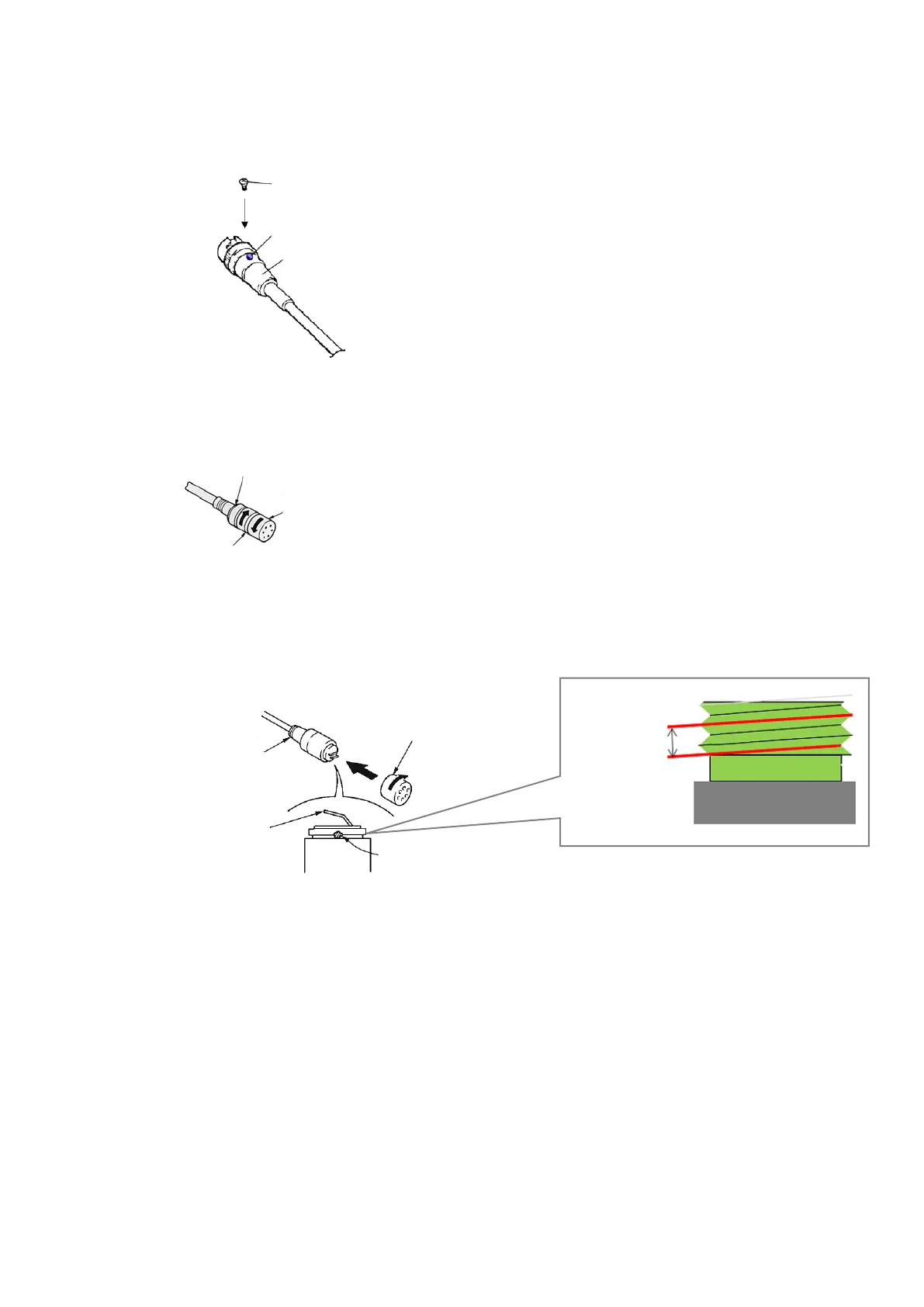

3) Fixing the connector cover
Apply thelocking agent for screw (ThreeBond 1401B:7-432-114-11 or equivalent) to the screw
hole on the connector cover and tighten the supplied screw (tightening torque: 0.08Nm)(Fig. 31)
3-5. Removal of capsule ASSY
The capsule ASSY can be removed as shown in the Fig. 32.
3-6. Note on handling the capsule ASSY.
Reassemble the capsule ASSY as shown in Fig. 33.
Fig. 31
Fig. 32
Capsule ASSY
Amplifier case ASSY
Locking agent for screw
Fig. 34
Connector cover
Position to apply
Supplied screw
Fig. 33
Tightening torque:
0.11 - 0.12Nm
Clean the contact spring
with ethanol.
Capsule ASSY
Locking agent for screw
Apply half of outer circumferential
surface indicated in Fig. 34.
Amplifier ASSY
Position to
apply locking
agent for screw
