Sony ECM-TS125 - Exploded Views and Parts Identification; Battery Box Assembly; Main Unit Assembly

— 5 —
— 6 —

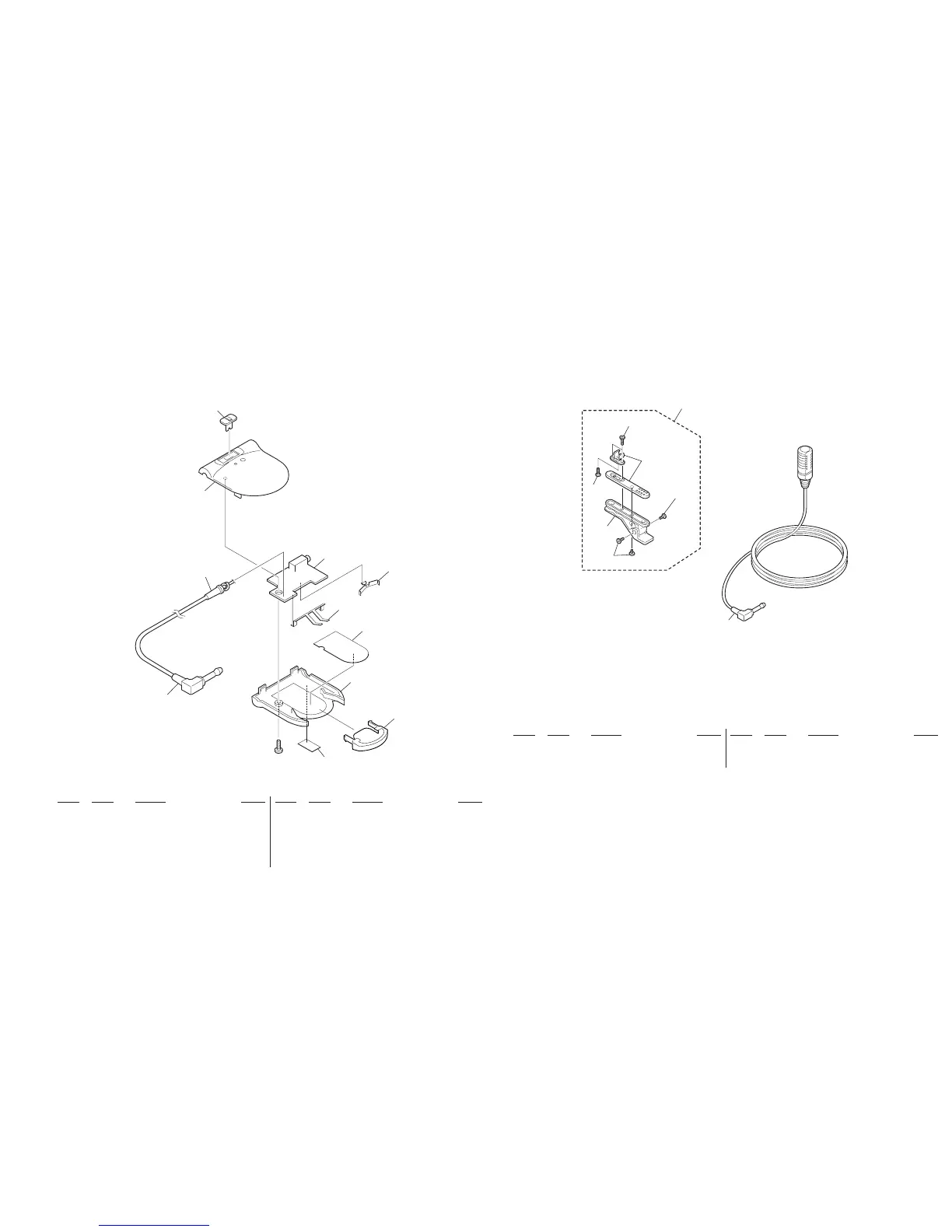

SECTION 3
EXPLODED VIEW
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories and packing materials is given in
the last of this parts list.
3-1. BATTERY BOX SECTION
3-2. MAIN SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
2
6
7
8
9
10
11
12
4
5
#1
51
53
53
54
54
not supplied
55
52
1 1-790-506-21 CORD,MICROPHONE (2 CORE)
2 2-545-592-01 BUSHING
4 X-2542-165-1 CASE(UPPER) ASSY, BATTERY
5 2-545-588-01 KNOB,SWITCH (POWER)
* 6 A-4542-575-A AMP BOARD, COMPLETE
7 2-545-589-01 TERMINAL, PLUS
51 A-4540-182-A CLIP ASSY, HOLDER
52 X-2542-079-1 CLIP ASSY
53 3-704-197-12 SCREW (M1.4 × 2.0), LOCKING
54 3-309-597-31 SCREW (1.4), TAPPING,PRECISION
55 A-4540-570-A MICROPHONE ASSY, LAVALIER (MIC UNIT)
8 2-545-590-01 TERMINAL, MINUS
9 2-545-599-01 SHEET, BLIND
10 2-545-586-01 CASE(LOWER), BATTERY
11 2-545-587-01 HOLDER, BATTERY
12 2-545-668-01 LABEL, MODEL NUMBER
#1 7-685-103-19 SCREW +P 2 × 5 TYPE2 NON-SLIT
