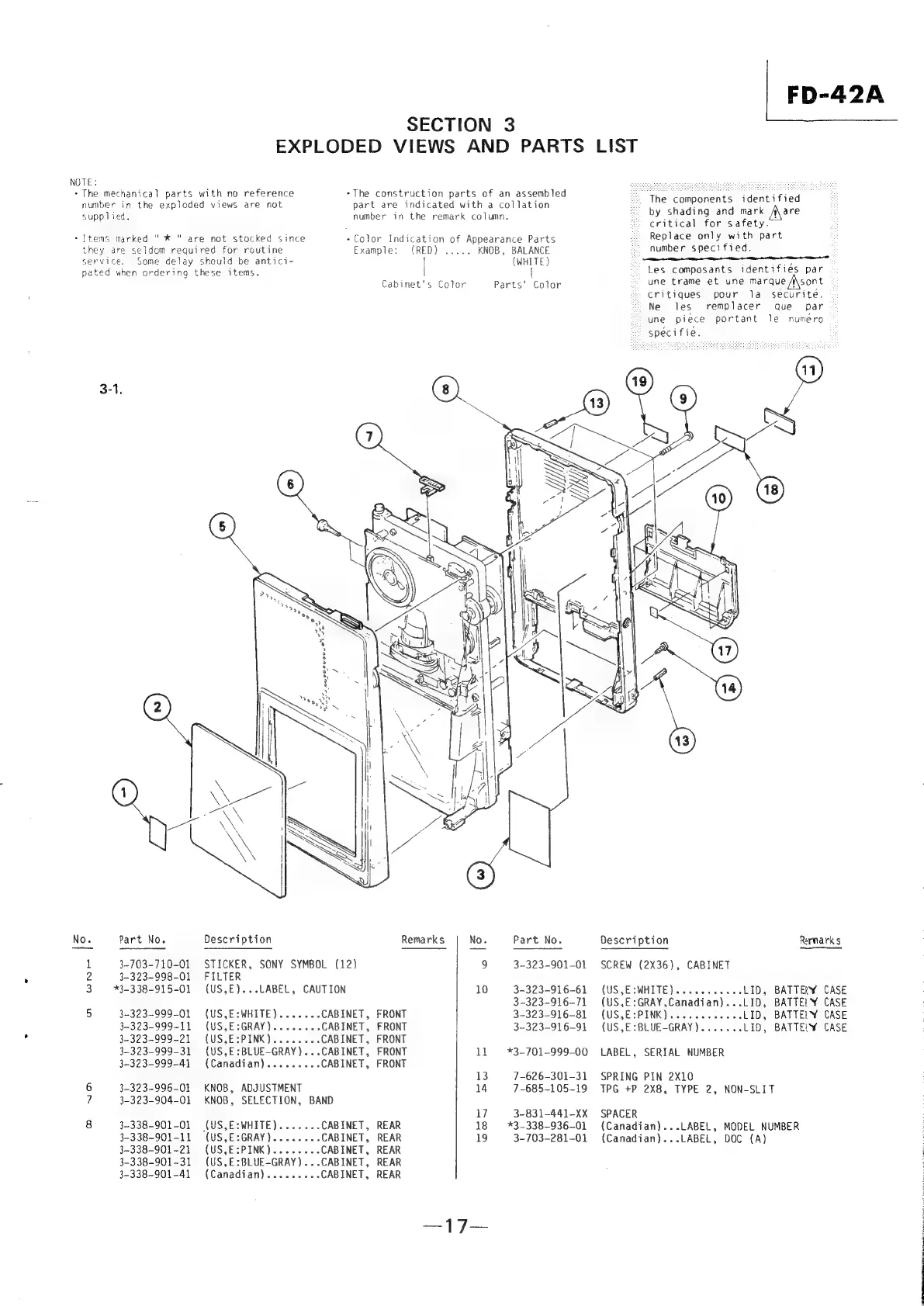

Sony FD-42A - Exploded Views and Parts List; Exploded View (Main Unit)

FD-42A
SECTION 3
EXPLODED VIEWS AND PARTS LIST
NOTE: ses Hic aS a AA Baca ges oe re
+The mechanical parts with no reference -The construction parts of an assembled Ree ae eee ee
number in the exploded views are not part are indicated with a collation The Seale ee
supplied. number in the remark column. by sha Ung vane Mer Are
critical for safety.
*Items marked "* " are not stocked since + Color Indication of Appearance Parts -- Replace only with part
they are seldom required for routine Example: (RED) ..... KNOB, BALANCE “number specified.
service, Some delay should be antici- ! :
(WHITE) : et
pated
when
ordering
these
items.
|
i
Les
composants
identifies
par
Cabinet's Color Parts’ Color ~ une trame et une marque /\sont
© critiques pour ja securite.
Ne les remplacer que par
une piece portant Je numéro
~ specifie.
3-1.
vy apooovoeret we
e
No. Part No. Description Remarks No. Part No. Description Rarnarks
1 3-703-710-01 STICKER, SONY SYMBOL (12) 9 3-323-901-01 SCREW (2X36), CABINET
2 3-323-998-01 FILTER
3 *3-338-915-01 (US,E}...LABEL, CAUTION 10 3-323-916-61 (US,E:WHITE).........., LID, BATTERY CASE
3-323-916-71 (US,E:GRAY,Canadian)...LID, BATTERY CASE
5 3-323-999-01 (US,E:WHITE)....... CABINET, FRONT 3~-323-916-81 (US,E:PINK).........05, LID, BATTERY CASE
3-323-999-11 (US,E:GRAY)........ CABINET, FRONT 3-323-916-91 (US,E:BLUE-GRAY)....... LID, BATTEY CASE
3-323-999-21 (US,E:PINK)........ CABINET, FRONT
3-323-999-31 (US,E:BLUE-GRAY)...CABINET, FRONT 11 *3-701-999-00 LABEL, SERIAL NUMBER
3-323-999-41 (Canadian)......... CABINET, FRONT
13 7-626-301-31 SPRING PIN 2X10
6 3-323-996-01 KNOB, ADJUSTMENT 14 7-685-105-19 TPG +P 2X8, TYPE 2, NON-SLIT
7 3-323-904-01 KNOB, SELECTION, BAND
17 3-831-441-XX SPACER
8 3-338-901-01 (US,E:WHITE)....... CABINET, REAR 18 = *3-338-936~01 (Canadian)...LABEL, MODEL NUMBER
3-338-901-11 (US,E:GRAY)........ CABINET, REAR 19 3-703-281-01 (Canadian)...LABEL, DOC (A)
3-338-901-21 (US,E:PINK)........ CABINET, REAR
3-338-901-31 (US,E:BLUE~GRAY)...CABINET, REAR
3-338-901-41 (Canadian)......... CABINET, REAR
—17—
