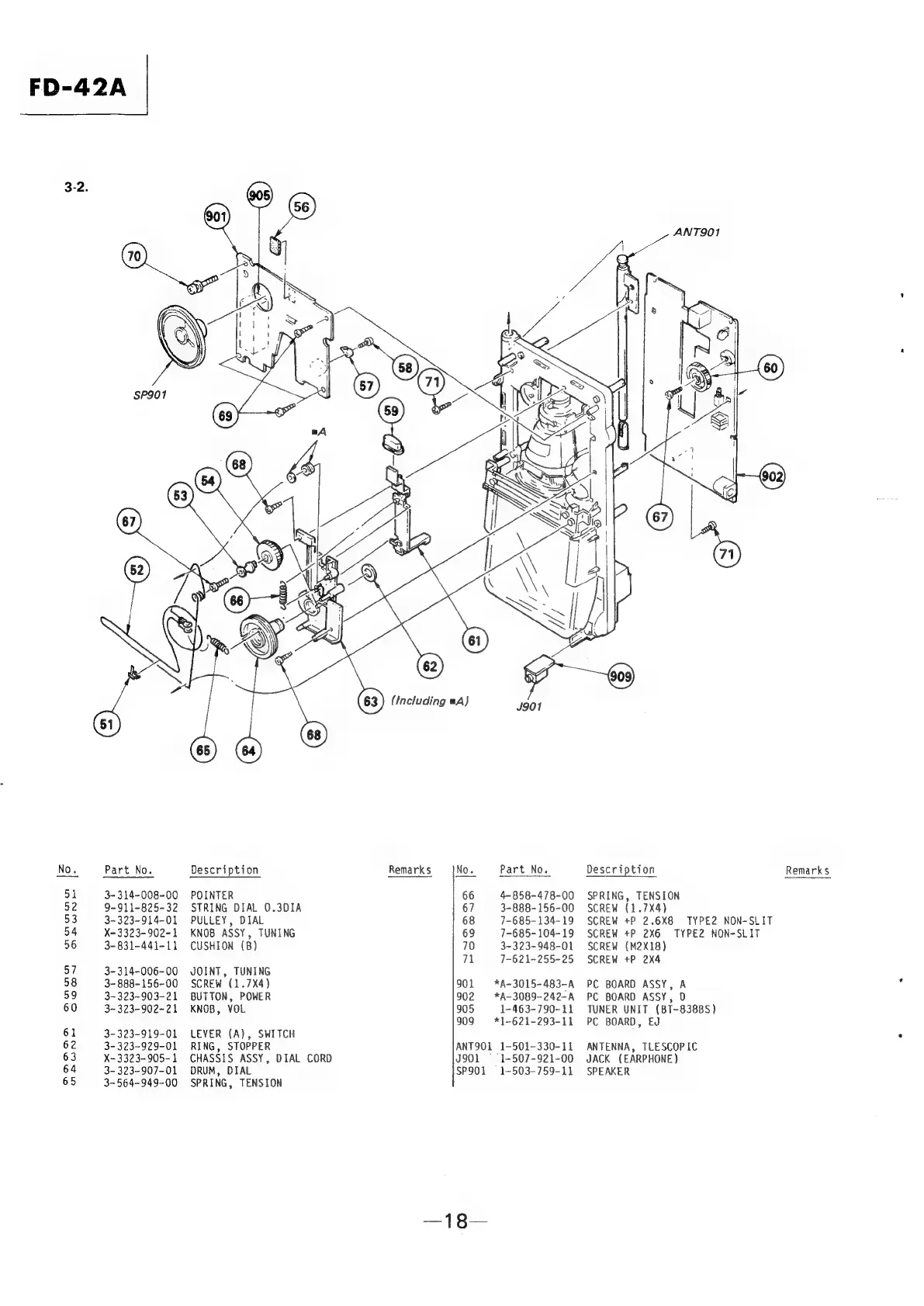

Sony FD-42A - Exploded View (Tuning Mechanism)

FD-42A
3-2.
No.
51
52
53
54
56
57
58
59
60
61
63
64
65
Part No.
3~-314-008-00
9-911-825-32
3-323-914-01
X-3323-902-1
3-831-441-11
3-314-006-00
3- 888- 156-00
3-323- 903-21
3-323-902-21
3-323-919-01
3-323-929-01
X-3323-905-1
3-323-907-01
3-564-949-00
Description
ANT901
Remarks
POINTER
STRING DIAL 0.3DIA
PULLEY, DIAL
KNOB ASSY, TUNING
CUSHION (B)
JOINT, TUNING
SCREW (1.7X4)
BUTTON, POWER
KNOB, VOL
LEVER (A), SWITCH
RING, STOPPER
CHASSIS ASSY, DIAL CORD
DRUM, DIAL
SPRING, TENSION
—18—
SCREW +P 2.6X8 TYPE2 NON-SLIT
SCREW +P 2X6 TYPE2 NON~SLIT
TUNER UNIT (BT-838BS)
Remarks No. Part No. Description
66 4-858-478-00 SPRING, TENSION
67 3-888-156-00 SCREW (1.7X4)
68 7-685- 134-19
69 7-685- 104-19
70 3-323-948-01 SCREW (M2X18)
71 7-621-255-25 SCREW +P 2X4
901 *A-3015-483-A PC BOARD ASSY, A
902 *A-3089-242-A PC BOARD ASSY, D
905 1-463-790-11
909 = *1-621-293-11 PC BOARD, EJ
ANT901 1-501-330-11 ANTENNA, TLESCOPIC
J901 =: 1-507-921-00 JACK (EARPHONE)
SP901 1-503-759-11 SPEAKER
