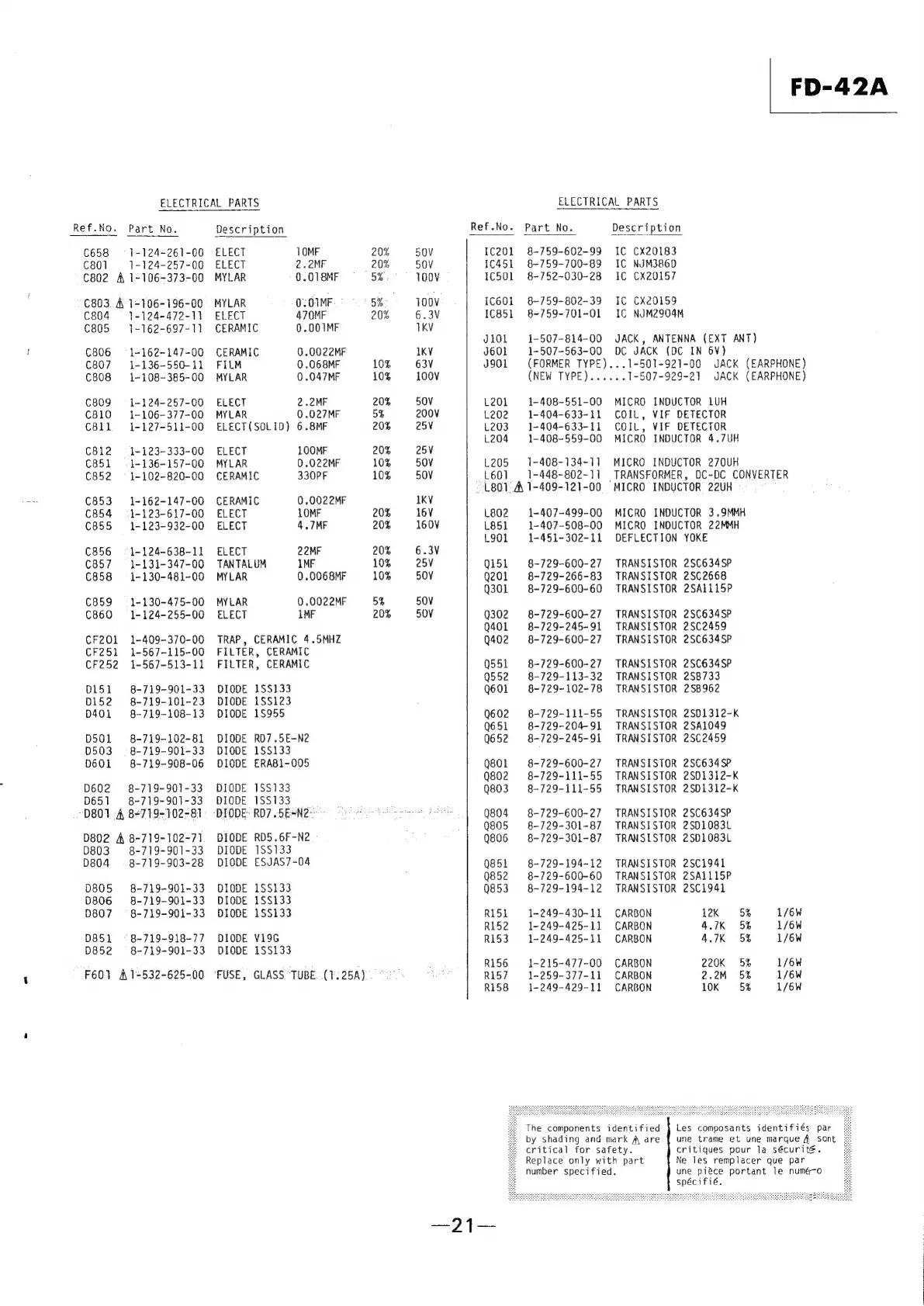

ELECTRICAL PARTS
Ref.No. Part No. Description
C658 = 1-124~-261-00 ELECT TOMF
C801 = 1-124-257-00 ELECT 2.2MF
C802 A 1-106-373-00 MYLAR 0.018MF
€803. A 1-106-196-60 MYLAR 0. 07MF
C804 = 1-124-472-11 ELECT 470MF
C805 = 1-162-697-11 CERAMIC 0.001MF
C806 = 1-162-147-00 CERAMIC 0.0022MF
C807 -1-136-550-11 FILM 0.068MF
C808 1-108-385-00 MYLAR 0.047MF
C809 = 1-124-257-00 ELECT 2.2MF
C810 = 1-106-377-00 MYLAR 0.027MF
C811 1-127-511-00 ELECT(SOLID) 6.8MF
C812 =: 1-123-333-00 ELECT LOOMF
C851 =: 1-136-157-00 MYLAR 0.022MF
C852 = 1-102-820-0900 CERAMIC 330PF
C853 1-162-147-00 CERAMIC 0.0022MF
C854 =: 1-123-617-00 ELECT LOMF
C855 = 1-123-932-00 ELECT 4.7MF
C856 =: 1-124-638-11 ELECT 22MF
C857 = 1-131-347-0060 TANTALUM IMF
C858 = 1-130-481-00 MYLAR 0.0068MF
C859 = 1-130-475-00 MYLAR 0.0022MF
C860 = =1-124-255-00 ELECT IMF
CF201 1-409-370-00 TRAP, CERAMIC 4.5MHZ
CF251 1-567-115-00 FILTER, CERAMIC
CF252 1-567-513-11 FILTER, CERAMIC
D151 8-719-901-33 OL00E 159133
D152 8-719-101-23 DIODE 1$5123
D401 8-719-108-13 DIODE 18955
D501 8-719-102-81 DIODE RD7.5E-N2
D503 = 8-719-901-33 DIODE 1$S133
D601 8-719-908-06 DIODE ERA81-005
D602 8-719-901-33 DIODE 188133
D651 = 8-719-901-33 DIODE 155133
D801 A 8+719-102-81. “DIODE: RD7.5E+N2-
0802 A 8-719-102-71. DIODE RDS.6F-N2
0803 =8-719-901-33 DIODE 18S133
D804 = 8-719-903-28 DIODE ESJAS7-04
D805 8-719-901-33 DIODE 1$5133
0806 = 8-719-901-33 DIODE 1$S8133
D807 = 8-719-901-33 DIODE 188133
D851 = 8-719-918-77 DIODE V19G
D852 = =8-719-901-33 DIODE 1$S133
F601 A1+532-625-00 FUSE, GLASS TUBE. (1.25A)
20%
20%
5%.
5%
20%
cup
10%
10%
20%
5%
20%
20%
10%
10%
20%
20%
20%
10%
10%
5%
20%
50V
50V
~ 100V
100V
6.3V
1KV
1KV
63V
100V
50V
200V
25V
25V
50V
50V
1KV
16V
160V
6.3V
25V
50V
50V
50V
FD-42A
ELECTRICAL PARTS
Ref.No. Part No. Description
1C201 8-759-602-99 IC CX20183
1C451 8-759-700-89 IC NJM386D
1C501 8-752-030-28 IC CX20157
iC60i 8-759-862-39 IC Cx20159
1C851 8-759-701-01 IC NJM2904M
J101 1-507-814-00 JACK, ANTENNA (EXT ANT)
J601 1-507-563-00 DC JACK (DC IN 6V)
J901 (FORMER TYPE)...1-501-921-00 JACK (EARPHONE)
(NEW TYPE)...... 1-507-929-21 JACK (EARPHONE)
L201 1-408-551-00 MICRO INDUCTOR 1UH
L202 1-404-633-11 COIL, VIF DETECTOR
L203 1-404-633-11 COIL, VIF DETECTOR
L204 1-408-559-00 MICRO INDUCTOR 4.7UH
L205 1-408-134-11 MICRO INDUCTOR 270UH
L601 1-448-802-11 TRANSFORMER, DC-DC CONVERTER
L801: A 1-409-121-00 MICRO INDUCTOR 22UH
L802 1-407-499-00 MICRO INDUCTOR 3.9MMH
L851 1-407-508-00 MICRO INDUCTOR 22MMH
L901 1-451-302-11 DEFLECTION YOKE
Q151 8-729-600-27 TRANSISTOR 2SC634SP
Q201 8-729-266-83 TRANSISTOR 2SC2668
Q301 8-729-600-60 TRANSISTOR 2SA1115P
Q302 8-729-600-27 TRANSISTOR 2SC634SP
Q401 8-729-245-91 TRANSISTOR 2502459
Q402 8-729-600-27 TRANSISTOR 2SC634SP
Q551 8-729-600-27 TRANSISTOR 2SC634SP
Q552 8-729-113-32 TRANSISTOR 258733
Q601 8-729-102-78 TRANSISTOR 2SB962
Q602 8-729-111-55 TRANSISTOR 2SD1312-K
Q651 8-729-204-91 TRANSISTOR 2SA1049
Q652 8-729-245-91 TRANSISTOR 2502459
Q801 8-729-600-27 TRANSISTOR 2SC634SP
Q802 8-729-111-55 TRANSISTOR 2SD1312-K
Q803 8-729-111-55 TRANSISTOR 2SD1312-K
Q804 8-729-600-27 TRANSISTOR 2SC634SP
Q805 8-729-301-87 TRANSISTOR 2SD1083L
Q806 8-729-301-87 TRANSISTOR 2SD1083L
Q851 8-729-194-12 TRANSISTOR 2SC1941
Q852 8-729-600-60 TRANSISTOR 2SA1115P
Q853 -8-729-194-12 TRANSISTOR 2SC1941
R151 1-249-430-11 CARBON 12K % 1/6W
R152 1-249-425-11 CARBON 4.7K 5% 1/6W
R153 1-249-425-11 CARBON 4.7K 5% 1/6W
R156 1-215-477-00 CARBON 220K 5% 1/6W
R157 1-259-377-11 CARBON 2.2M 5% 1/6W
R158 1-249-429-11 CARBON 10K 5% 1/6W
