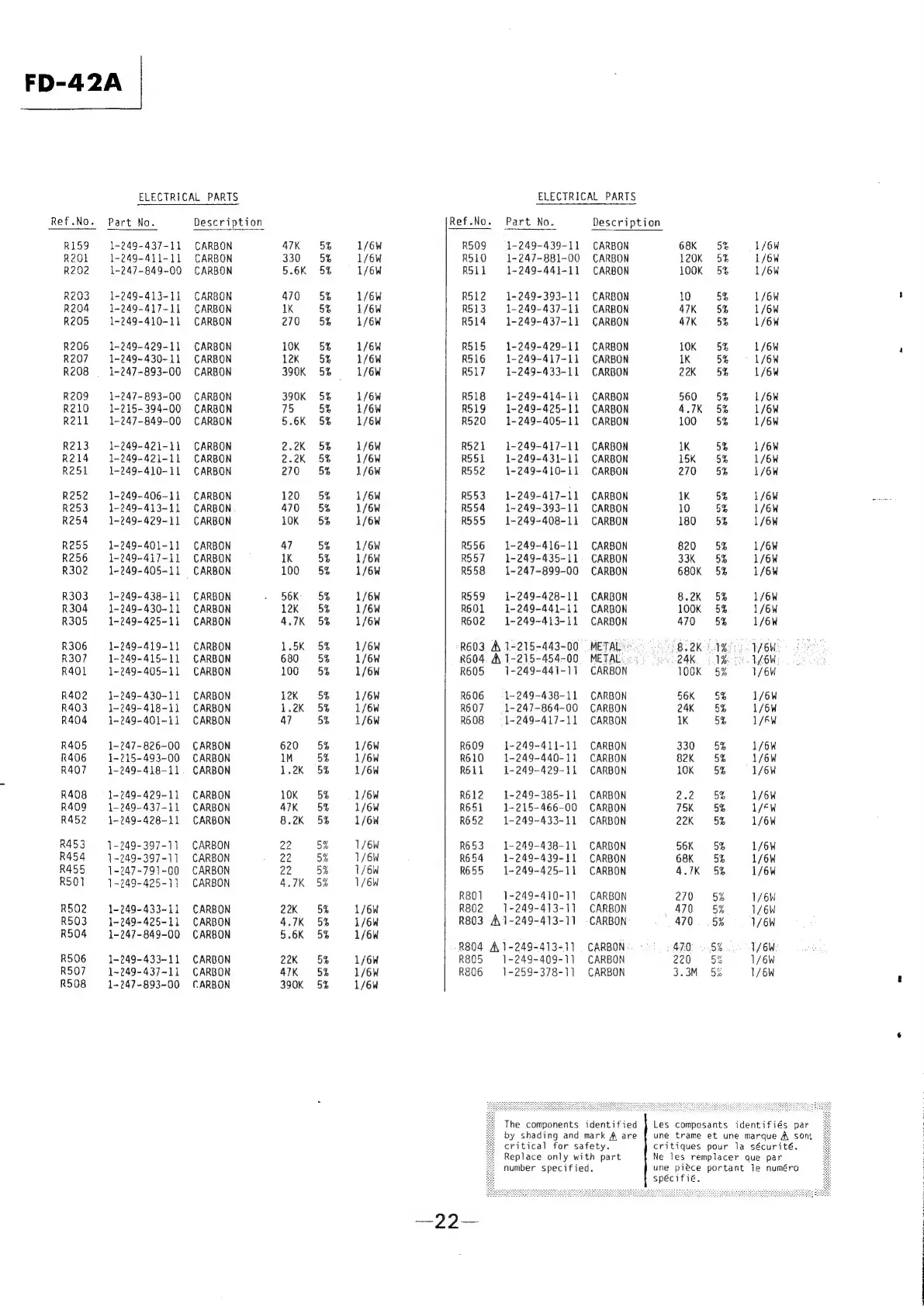

FD-42A
ELECTRICAL PARTS ELECTRICAL PARTS
Ref.No. Part No. Description Ref.No. Part No. Description
R159 1-249-437-11 CARBON 47K 5% 1 /6W R509 =: 1-249-439-11 CARBON 68K 5% «1 /6W
R201 1-249-411-11 CARBON 330 5% = 1/6W R510 1-247-881-00 CARBON 120K 5% = 1/6W
R202 1-247-849-00 CARBON 5.6K 5% 1/6W R511 1-249-441-11 CARBON 100K 5% = 1/6W
R203 1-249-413-11 CARBON 470 «5% =A /6W R512 1-249-393-11 CARBON 10 5% 1/6W ’
R204 1-249-417-11 CARBON 1K 5%sCL/6W R513. 1-249-437-11 CARBON 47K 5% 1/6
R205 1-249-410-11 CARBON 270 5% © «1/6W R514 1-249-437-11 CARBON 47K 5% © 1/6W
R206 1-249-429-11 CARBON 10K 5% 1/6W R515 1-249-429-11 CARBON 10K 5% 1/6 ;
R207 1-249~430-11 CARBON 12k 5% «1 /6W R516 1-249-417-11 CARBON iK 5% = -1/6W
R208 1-247-893-00 CARBON 390K 5% 1/6W R517: 1-249-433-11 CARBON 22k «5% OL /6W
R209 1-247-893-00 CARBON 390K 5% 1/6 R518 1-249-414-11 CARBON 560 5% 1/6W
R210 1-215-394-00 CARBON 75 5% 1/6W R519 1-249-425-11 CARBON 4.7K 5% 1/6W
R211 1-247-849-00 CARBON 5.6K 5% 1/6W R520 1-249-405-11 CARBON 100 5% 1/6W
R213 1-249-421-11 CARBON 2.2K 5% 1/6W R521: 1-249-417-11 CARBON 1K «5% /6W
R214 1-249-421-11 CARBON 2.2K 5% 1/6W R551 1-249-431-11 CARBON 15K 5% A /6W
R251 1-249-410-11 CARBON 270 5% = «1/6W R552 1-249-410-11 CARBON 270 «5% =A /6W
R252 1-249-406-11 CARBON 120 5% 1/6W R553. -1-249-417-11 CARBON 1K 5% = -1/6W ~_
R253 1-249-413-11 CARBON 470 5% 1/6 R554: 1-249-393-11 CARBON 10 5% 1/6W
R254 1-249-429-11 CARBON 10K 5% = 1/6W R555 1-249-408-11 CARBON 180 5% 1/6W
R255 1-249-401-11 CARBON 47 5% 1 /6W R556 1-249-416-11 CARBON 820 5% 1/6W
R256 1-249-417-11 CARBON 1K 5% 1/6W R557: 1-249-435-11. CARBON 33K 5% = 1/6W
R302 1-249-405-11 CARBON 100 5% 1/6W R558 1-247-899-00 CARBON 680K 5% 1/6W
R303 1-249-438-11 CARBON . 56K: 5% = 1/6W R559 1-249-428-11 CARBON 8.2k 5% 1/6W
R304 1-249-430-11 CARBON 12K 5% /6W R601 1-249-441-11 CARBON 100K 5% 1/6W
R305 1-249-425-11 CARBON 4.7K 5% 1/6W R602 -:1-249-413-11 CARBON 470 5% 1/6
R306 1-249-419-11 CARBON 1.5K 5% 1/6W R603 A 1=215-443-00 METAL=® Bo 2K L1G WeW! fe
R307 1-249-415-11 CARBON 680 5% 1/6W R604 A 1-215-454-00 METAL 24K De LOWE
R401 —:1-249-405-11 CARBON 100 5% 1/6W R605 1-249-441-11 CARBON 100K 5% 1/6W
R402 1-249-430-11 CARBON 12K 5% 1 /6W R606 =: 1-249-438-11 CARBON 56K 5% 1 /6W
R403 1+249-418-11 CARBON 1.2K 5% 1/6W R607 1-247-864-00 CARBON 24K «5% /6W
R404 1-249-401-11 CARBON 47 5R OL /6W R608 =: 1-249-417-11 CARBON 1K 5% OL /AW
R405 1-247-826-00 CARBON 620 5% 1/6W R609 1-249-411-11 CARBON 330 5% 1/6W
R406 1-215-493-00 CARBON IM 5% —A/6W R610 1-249-440-11 CARBON B2k 5% = 1/6W
R407 1-249-418-11. CARBON 1.2K 5% 1/6W R611 1-249-429-11 CARBON 10K 5% 1/6W
R408 = 1-249-429-11 CARBON 10K 5% = 1/6W R612 1-249-385-11 CARBON 2.2 5% 1/6W
R409 1-249-437-11 CARBON 47K 5% 1 /6W R651 1-215-466-00 CARBON 75K 5% 9 1/FW
R452 1-249-428-11 CARBON 8.2k 5% = 1/6W R652. 1-249-433-11 CARBON 22k 5& OL/6W
R453 1-249-397-11 CARBON 22 «5% = «1/6 R653 1-249-438-11 CARBON 56K 5% 1/6W
R454} -249-397-11 CARBON 22 % 1/6 R654 1-249-439-11 CARBON 68K 5B /6W
R455 — 1-247-791-00 CARBON 22 «5% 1 /6W R655 1-249-425-11 CARBON 4.7K 5% 1/6
R501 1-249-425-11 CARBON 4.7K 5% 1/6W
R801 1-249-410-11 CARBON 270 5% «1/6
R502 1-249-433-11 CARBON 22k 5% /6W R802 -1-249-413-11 CARBON 470 5% = 1/6W
R503 1-249-425-11 CARBON 4.7K 5% 1 /6W R803 A\1-249-413-11 CARBON 470. 5% (1 /6W
R504 = 1-247-849-00 CARBON 5.6K 5% 1/6W
R804 A1-249-413-11 CARBON 470 SR. 1/6W
R506: 1-249-433-11 CARBON 22K «5% 1/6 R805 1-249-409-11 CARBON 220 5% ~~ -1/6W
R507. 1-249-437-11 CARBON 47K 5% 1/6W R806 —-1-259-378-11 CARBON 3.3M 52 = 1/6W ;
R508 — 1-247-893-00 CARBON 390K 5% 1/6W
The components identified | Les composants identifiés par
by shading and mark A are [ une trame et une marque A sont
critical for safety. critiques pour la sécurité.
Replace only with part Ne les remplacer que par
number specified. une piéce portant te numéro
spécifié.
