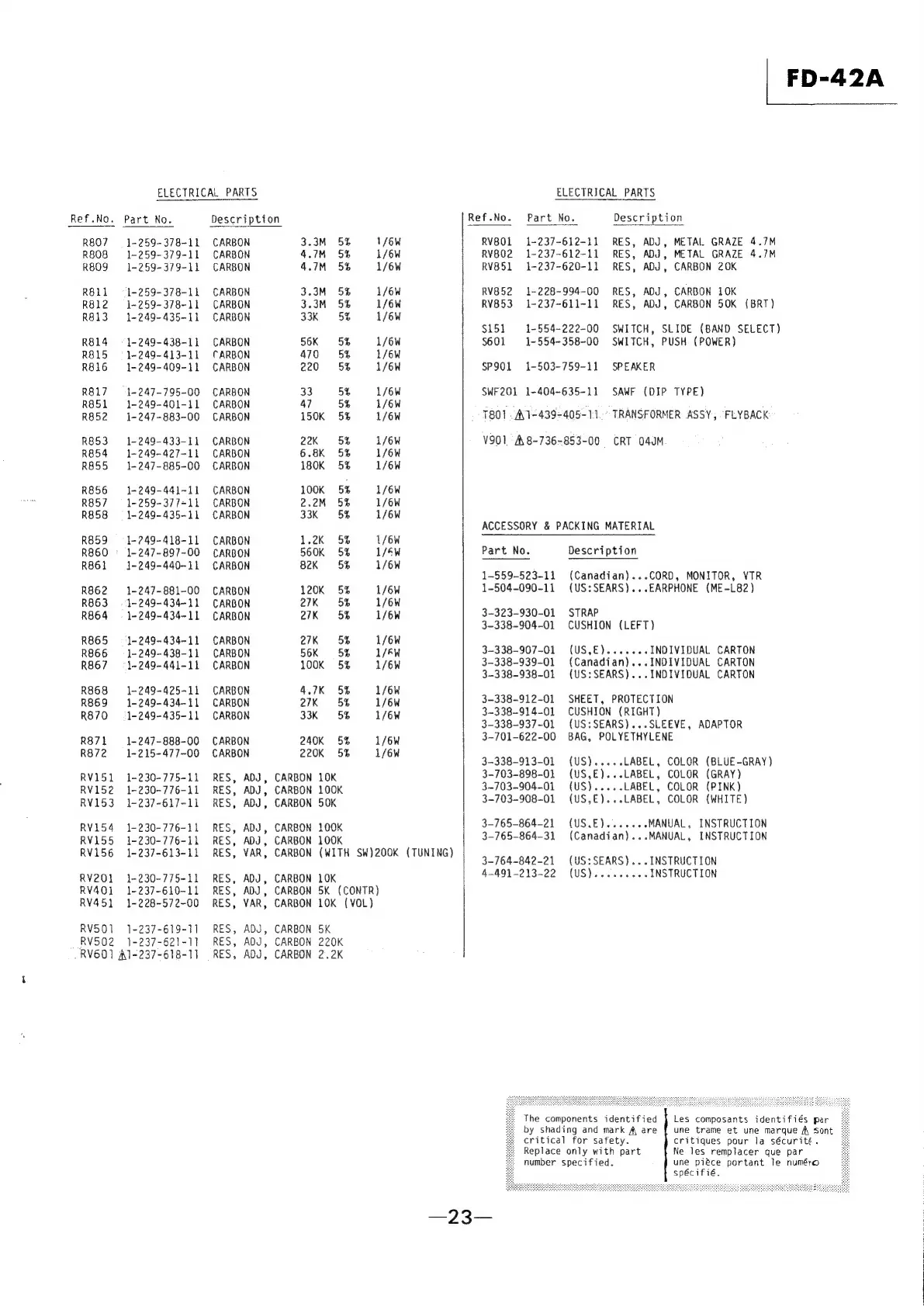

ELECTRICAL PARTS
Ref.No. Part No. Description
R807 = J-259-378-11 CARBON 3.3M 5% 1/6W
R808 1-259-379-11 CARBON 4.7M 5% 1/6W
R809 = 1-259-379-11 CARBON 4.7M 5% 1/6W
R811 =: 1-259-378-11 CARBON 3.3M 5% 1/6W
R812 1-259-378-11 CARBON 3.3M 5% 1/6W
R813 1-249-435-11 CARBON 33K 5% 1/6W
R814 =: 1-249-438-11 CARBON 56K = 5% 1/6W
R815 = 1-249-413-11 CARBON 470 5% 1/6W
R816 = 1-249-409-11 CARBON 220 «5% 1/6W
R817 =: 1-247-795-00 CARBON 33 5% 1/6W
R851 1-249-401-11 CARBON 47 5% 1/6W
R852 ~=—-1-247-883-00 CARBON 150K 5% 1/6W
R853 1-249-433-11 CARBON 22k 5% 1/6W
R854 = 1-249-427-11 CARBON 6.8K 5% 1/6W
R855 1-247-885-00 CARBON 180K 5% 1/6W
R856 1-249-441-11 CARBON 100K 5% 1/6W
R857 = 1-259-377-11 CARBON 2.2M 5% 1/6W
R858 = 1-249-435-11 CARBON 33K 5% 1/6W
R859 —s- 1-2 49-418-11 CARBON 1.2K 5% 1/6W
R860 = =1-247-897-00 CARBON 560K 5% 1/4W
R861 1-249-440-11 CARBON 82K = 5% 1/6W
R862 = 1-247-881-00 CARBON 120K 5% 1/6W
R863 =: 1-249-434-11 CARBON 27K 5% 1/6W
R864 = 1-249-434-11 CARBON 27K 5% 1/6W
R865 =: 1-249-434-11 CARBON 27K = 5% 1/6W
R866 = 1-249-438-11 CARBON 56K = 5% 1/6W
R867 =: 1-249-441-11 CARBON 100K 5% 1/6W
R868 1-249-425-11 CARBON 4.7K 5% 1/6W
R869 = 1-249-434-11 CARBON 27K 5% 1/6W
R870 =: 1-249-435-11 CARBON 33K 5% 1/6W
R871 = 1-247-888-00 CARBON 240K 5% 1/6W
R872 =1-215-477-00 CARBON 220K 5% 1/6W
RV151 1-230-775-11 RES, ADJ, CARBON 10K
RV152 1-230-776-11 RES, ADJ, CARBON 100K
RV153 1-237-617-11 RES, ADJ, CARBON 50K
RV154 1-230-776-11 RES, ADJ, CARBON LOOK
RV155 1-230-776-11 RES, ADJ, CARBON 100K
RV156 1-237-613-11 RES, VAR, CARBON (WITH SW)200K (TUNING)
RV2O1 1-230-775-11 RES, ADJ, CARBON 10K
RV401 1-237-610-11 RES, ADJ, CARBON 5K (CONTR)
RV451 1-228-572-00 RES, VAR, CARBON 10K (VOL)
RV501 1-237-619-1211 RES, ADJ, CARBON 5K
RV502 1-237-621-11 RES, ADJ, CARBON 220K
RV601 Al~237-618-11
RES, ADJ, CARBON
2.2K
Ref .No.
FD-42A
ELECTRICAL PARTS
Part No. Description
RV801
RY802
RV851
RV852
RV853
$151
S601
SP901
SWF201
1-237-612-11
1-237-612-11
1-237-620-11
1-228-994-00
1-237-611-11
1-554-222-00
1-554-358-00
1-503-759-11
1-404-635-11
RES, ADJ, METAL GRAZE 4.7M
RES, ADJ, METAL GRAZE 4.7M
RES, ADJ, CARBON 20K
RES, ADJ, CARBON 10K
RES, ADJ, CARBON 50K (BRT)
SWITCH, SLIDE (BAND SELECT)
SWITCH, PUSH (POWER)
SPEAKER
SAWF (DIP TYPE)
7801. A1-439-405-11
TRANSFORMER ASSY, FLYBACK
V901 A8-736-853-00 CRT 040M
ACCESSORY & PACKING MATERIAL
Part No.
1-559-523-11
1-504-090-11
3-323-930-01
3-338-904-01
3-338-907-01
3-338-939-01
3-338-938-01
3-338-912-01
3~338-914-01
3-338-937-01
3-701-622-00
3-338-913-01
3-703-898-01
3-703-904-01
3-703-908-01
3-765-864-21
3-765-864-31
3-764-842-21
4-491-213-22
The components identified
by shading and mark A are
critical for safety.
Replace only with part
number specified.
Description
(Canadian)...CORD, MONITOR, VTR
(US:SEARS)...EARPHONE (ME-L82)
STRAP
CUSHION (LEFT)
(USS EDs sracnterd INDIVIDUAL CARTON
(Canadian)... INDIVIDUAL CARTON
(US:SEARS)... INDIVIDUAL CARTON
SHEET, PROTECTION
CUSHION (RIGHT)
(US:SEARS)...SLEEVE, ADAPTOR
BAG, POLYETHYLENE
(US).....LABEL, COLOR (BLUE-GRAY)
(US,E)...LABEL, COLOR (GRAY)
(US)..... LABEL, COLOR (PINK)
(US,E)...LABEL, COLOR (WHITE)
(USE) seceeee MANUAL, INSTRUCTION
(Canadian)...MANUAL, INSTRUCTION
(US: SEARS)... INSTRUCTION
(US) Avge. asi INSTRUCTION
