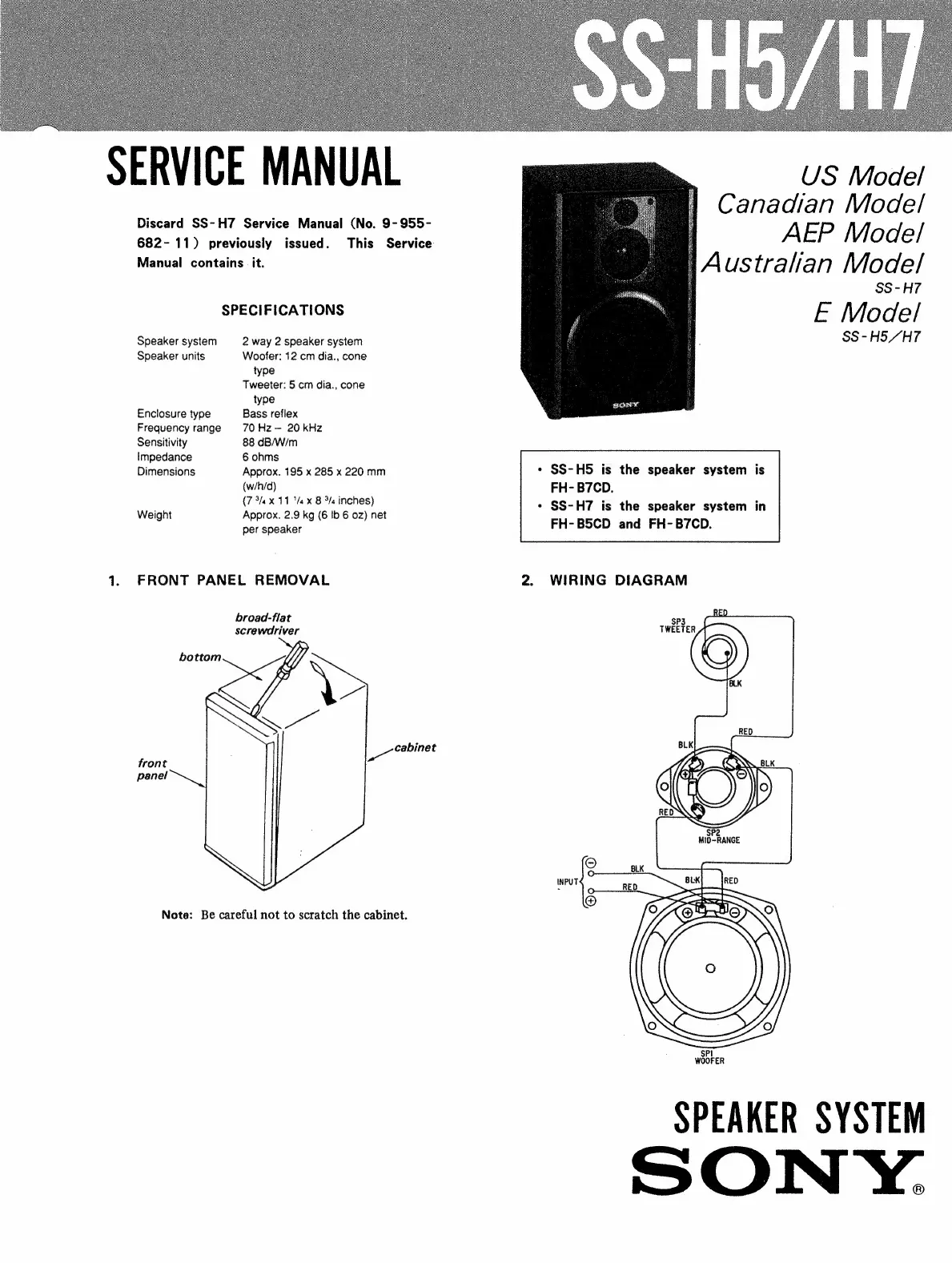

SERVICE MANUAL
Discard SS-H7 Service Manual (No. 9-955-
1.
682-11) previously issued. This Service
Manual contains it.
Speaker system
Speaker units
Enclosure type
Frequency range
Sensitivity
Impedance
Dimensions
Weight
SPECIFICATIONS
2 way 2 speaker system
Woofer: 12 cm dia., cone
type
Tweeter: 5 cm dia., cone
type
Bass reflex
70 Hz —- 20 kHz
88 dB/W/m
6 ohms
Approx. 195 x 285 x 220 mm
(w/h/d)
(7 3/4 x 11 %/s x 8 3/4 inches)
Approx. 2.9 kg (6 Ib 6 02) net
per speaker
FRONT PANEL REMOVAL
broad-flat
screwdriver
Note: Be careful not to scratch the cabinet.
US Model
Canadian Model!
AEP Mode!
ustralian Model
SS-H7
E Model
SS-H5/H7
* SS-H5 is the speaker system is
FH-B7CD.
* SS-H7 is the speaker system in
FH-B5CD and FH-B7CD.
2. WIRING DIAGRAM
SPEAKER SYSTEM
ONY.
