SS-H5/H7 :

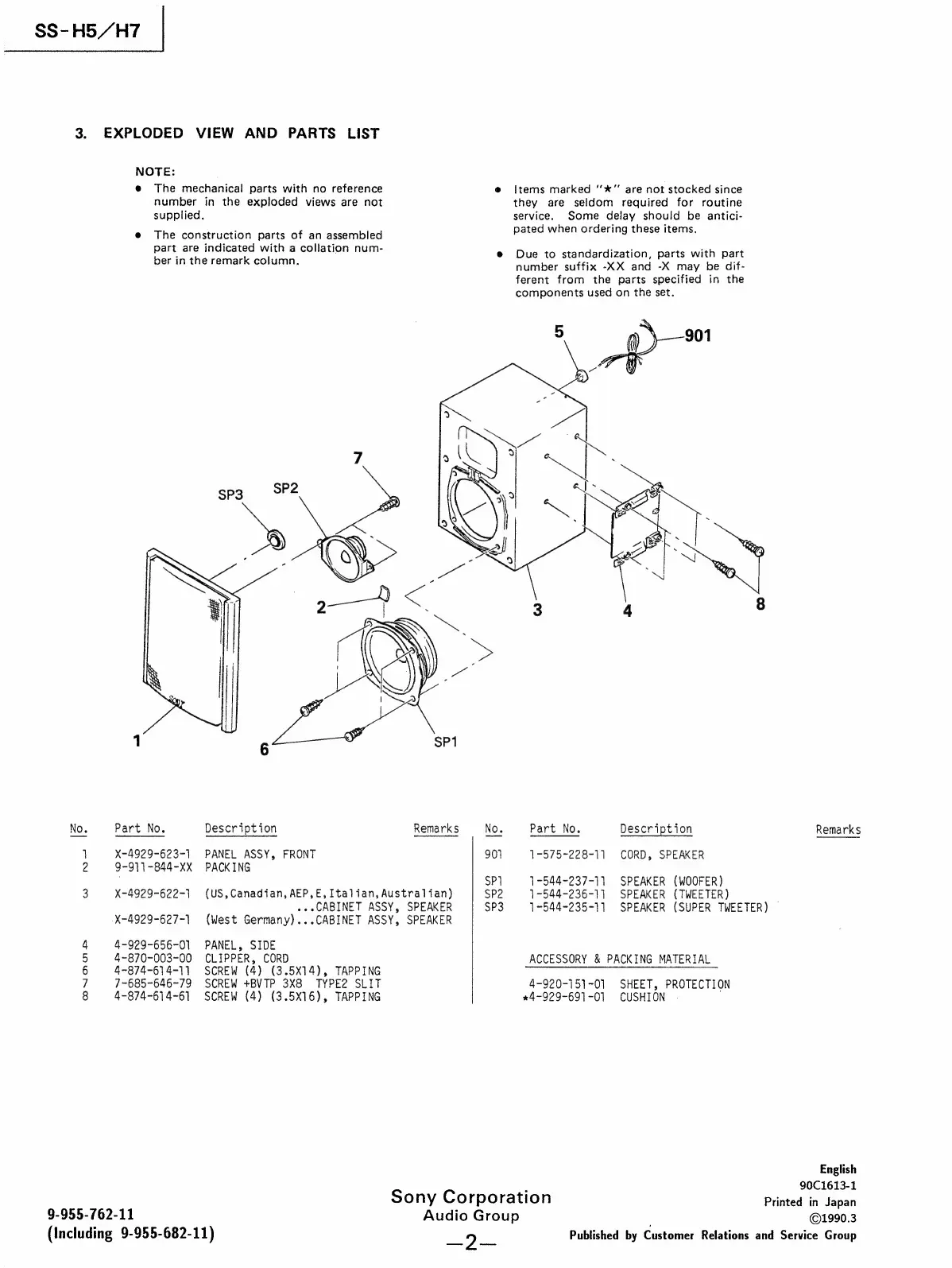

3. EXPLODED VIEW AND PARTS LIST
NOTE:
@e The mechanical parts with no reference
number in the exploded views are not
supplied.
The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.
Items marked “*" are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
) 901
No. Part No. Description Remarks No. Part No. Description Remarks
1 X-4929-623-] PANEL ASSY, FRONT 901 1-575-228-11 CORD, SPEAKER
2 9-911-844-XX PACKING
SP} 1-544-237-11 SPEAKER (WOOFER)
3 X-4929-622-1 (US,Canadian, AEP,E, Italian, Australian) SP2 1-544-236-11 SPEAKER (TWEETER)
«CABINET ASSY, SPEAKER SP3 1-544-235-11 SPEAKER (SUPER TWEETER)
X~4929-627-1 (West Germany)...CABINET ASSY, SPEAKER
4 4-929-656-01 PANEL, SIDE
5 4-870-003-00 CLIPPER, CORD ACCESSORY & PACKING MATERTAL
6 4-874-614-11 SCREW (4) (3.5X14), TAPPING
7 7-685-646-79 SCREW +BVTP 3X8 TYPE2 SLIT 4-920-151-01 SHEET, PROTECTION
8 4-874-614-61 SCREW (4) (3.5X16), TAPPING *4-929-691-01 CUSHION
English
. 90C1613-1
Sony Corporation Printed in Japan
9-955-762-11 Audio Group ©1990.3
(Including 9-955-682-11)
aes
Published by Customer Relations and Service Group
