Sony GN6UR - Connector

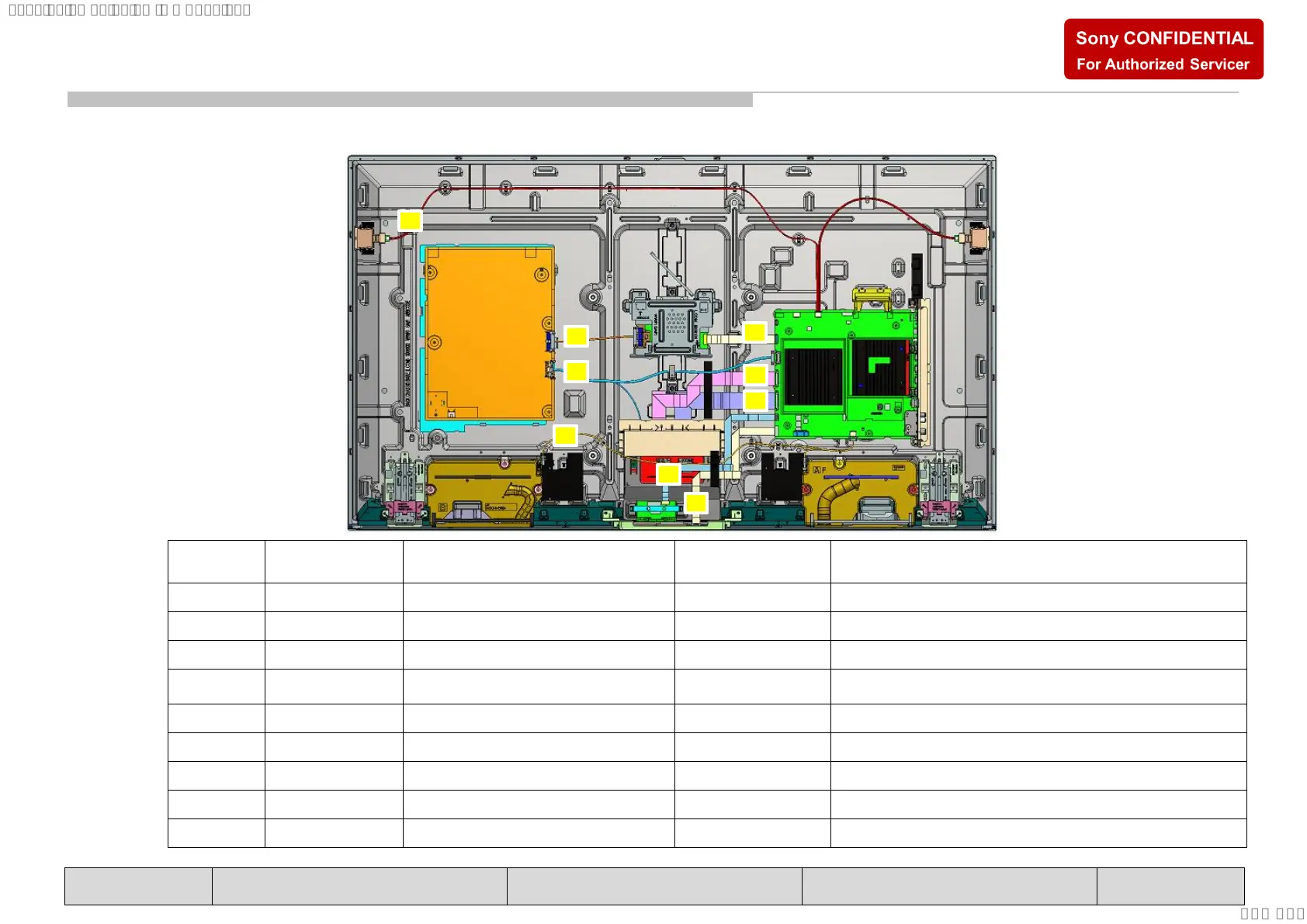

CONNECTOR
32
SECTION 1
XBR-55X9*H
7
2
4
8
1
REF. NO PART NO. DESCRIPTION DESTINATION REMARKS
1
1-006-501-11 CONNECTOR ASSY 4P (SP)
-
CN3201(BNB)/CN9002(BM3JT)-
SP(1)
2
1-007-097-11 CONNECTOR ASSY 4P (PZ)
-
CN9000(BM3JT)-
PZ(1)
3
1-007-098-11 CONNECTOR ASSY 15P
-
CN6601(G01/G02/G03)-
CN1003(LD55/LD65/LD75)(1)
4
1-007-099-11 CONNECTOR ASSY 28P
-
CN6401(G01/G02/G03)-CN800(BM3JT)-CON3(T-
CON)/J105/J114(T-
CON)(1)
5
1-007-100-11 FLEXIBLE FLAT CABLE 20P
-
CN1202(BM3JT)-
CN1202(WIFI/BT)(1)
6
1-007-103-11 FLEXIBLE FLAT CABLE 25P
-
CN1203(BM3JT)-
CN102(HT1)(1)
7
1-007-107-11 FLEXIBLE FLAT CABLE 30P
-
CN1000(LD55/LD65)-
CN8200(BM3JT)(1)
8
1-007-108-11 FLEXIBLE FLAT CABLE 41P
-
CN9200(BM3JT)-U2(T-CON)/J104(T-
CON)(1)
9
1-007-110-11 FLEXIBLE FLAT CABLE 51P
-
CN9201(BM3JT)-U1(T-CON)/J103(T-
CON)(1)
5
9
3
6
