Sony GN6UR - Section 1: XBR-55 X9*H; 1-1. Disassembly and Removal Caution

Rear Cover
6

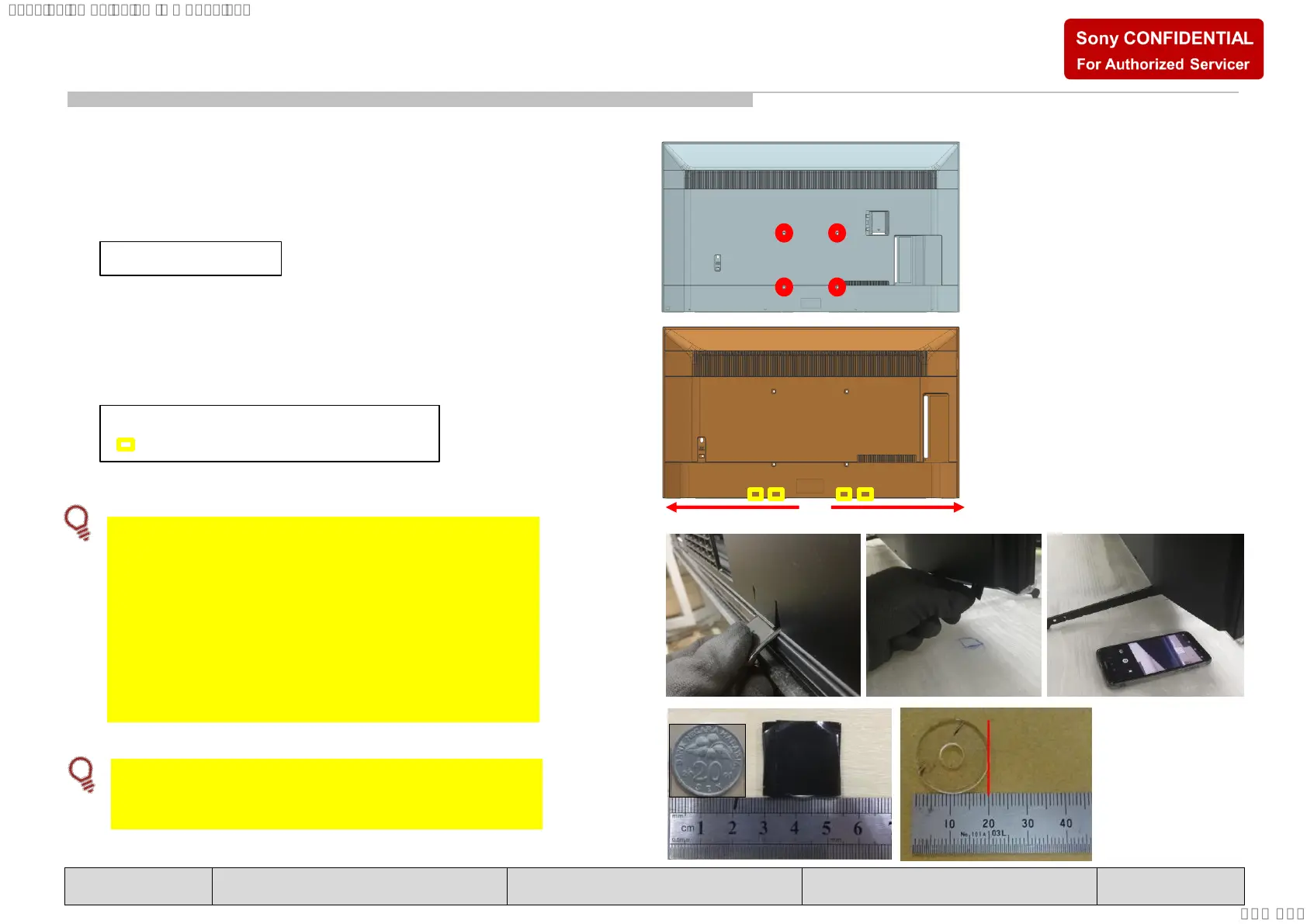

1. Disassemble ornament screw from Rear Cover.
1-1. DISASSEMBLY AND REMOVAL CAUTION
2. Unhook Rear Cover-Bezel hook, starting from hook closest
to Stand Cover.
 Unhook the left side of the hook first starting from the
hook closest to the Stand Cover. Then proceed with the
right side.
 When unhooking, pull Rear Cover to ensure hook
doesn’t lock back.
 Use masking jig/ mirror to locate bottom Rear Cover-
bezel hook.
1
2
Legend
=Bottom Back Chassis -Bezel Hook
Coin or jig to unhook bottom Rear Cover-Bezel hook
*Wrap coin in tape (55mmX25mm)
*Thickness of coin approximately 2mm
TOOLS & EQUIPMENTS
SECTION 1 SECTION 2 SECTION 3 SMART CORE
SECTION 1
XBR-55X9*H
Total screws : 4pcs
