Sony GN6UR - Page 38

Rear Cover
SECTION 2
XBR-65X9*H
38

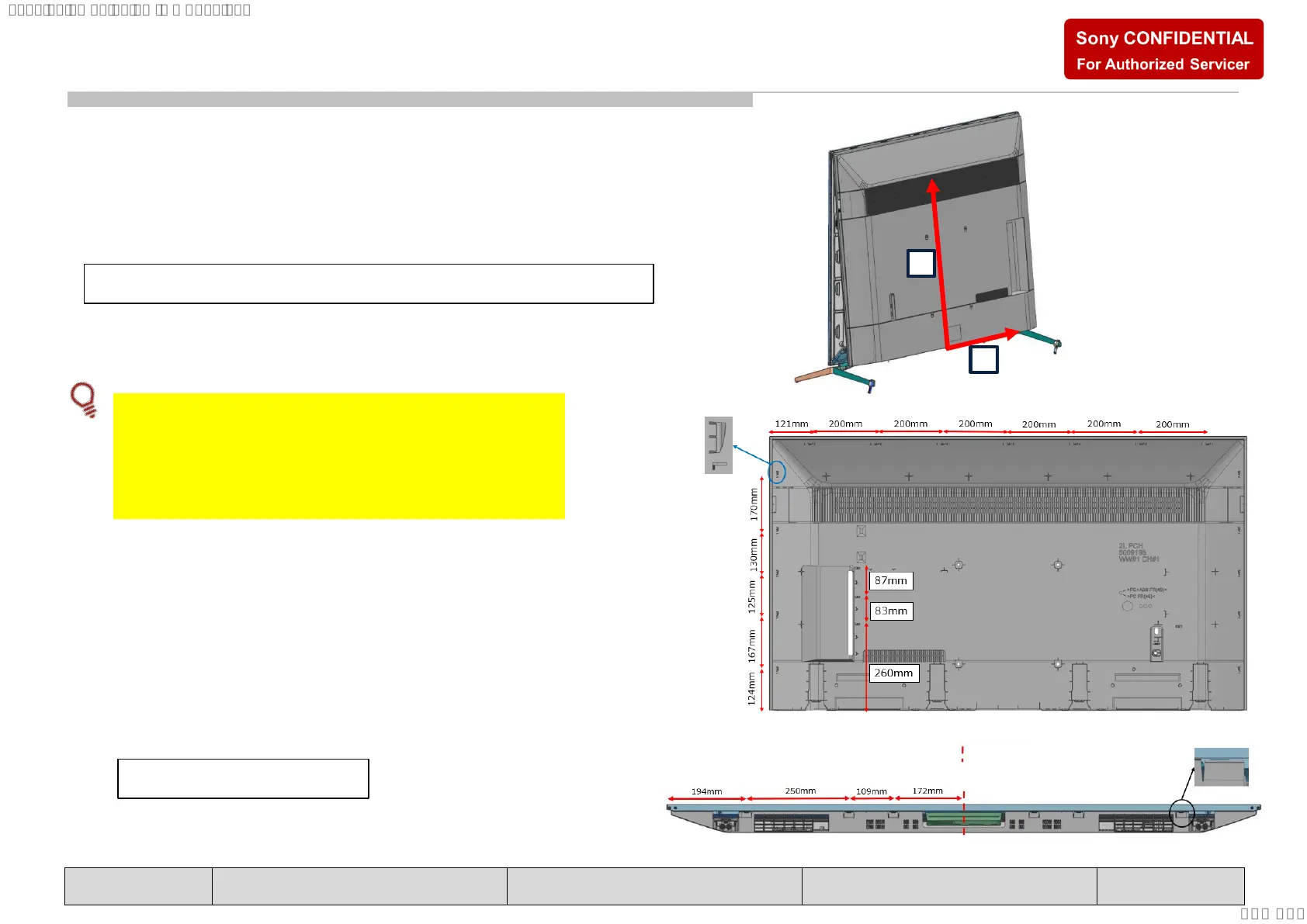

6. Unhook top Rear Cover - Back Chassis hook.
 Pull Rear Cover at Stand Cover area while
supporting Rear Cover with hand.
 Push Rear Cover upwards to release the top
hooks then lower the Rear Cover.
Total Rear Cover-Back Chassis Hooks (Top Side) : 7 hooks
1
2
TOOLS & EQUIPMENTS
SECTION 1 SECTION 2 SECTION 3 SMART CORE
2-1. DISASSEMBLY AND REMOVAL CAUTION
Bottom hook position
