Sony HBD-E490 - Top Chassis, KARAOKE Board (RU), POWER KEY Board, PANEL Board

HBD-E190/E290/E490/E690
16

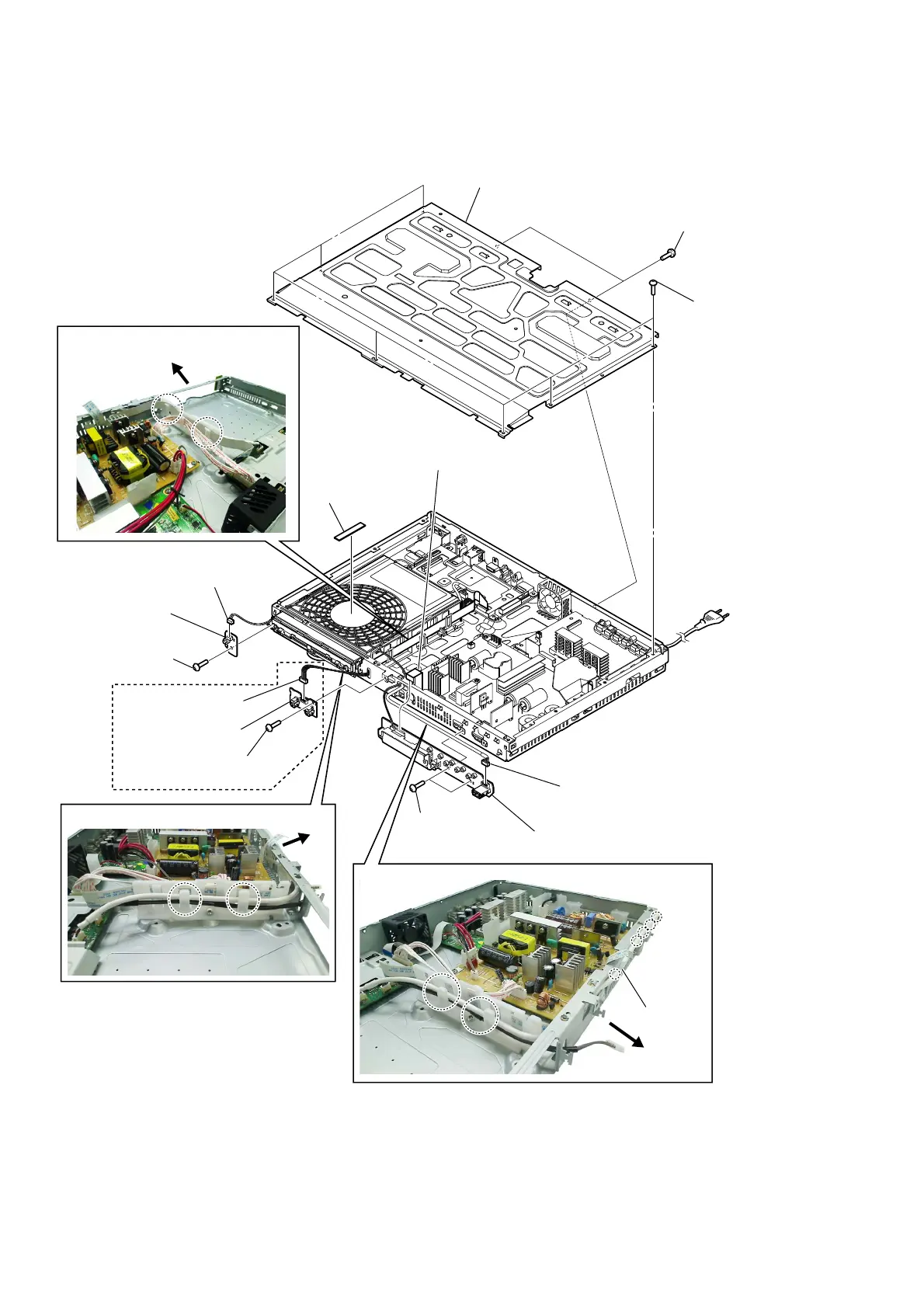

2-6. TOP CHASSIS, KARAOKE BOARD (RU), POWER KEY BOARD, PANEL BOARD
Ver. 1.1
• Abbreviation
RU : Russian model
:LUHVHWWLQJ
front side
5 one screw
(+BV3 (3-CR))
6 POWER KEY board
4 CN301 (2P)
1 two screws
(+BV3 (3-CR))
7 sheet, sound
9 harness (USB) CN03 (5P)
harness (USB)
8 wire (flat type)
(13 core) (CN02)
qa PANEL board
3 chassis, top
2 seven screws
(+BV3 (3-CR))
0 two screws
(+BV3 (3-CR))
:LUHVHWWLQJ
:LUHVHWWLQJ
front side
front side
qs CN201 (6P)
qd one screw
(+BV3 (3-CR))
qf KARAOKE board
(RU)
