Sony HBD-E490 - BD Drive and MB148 Board Replacement

HBD-E190/E290/E490/E690
17

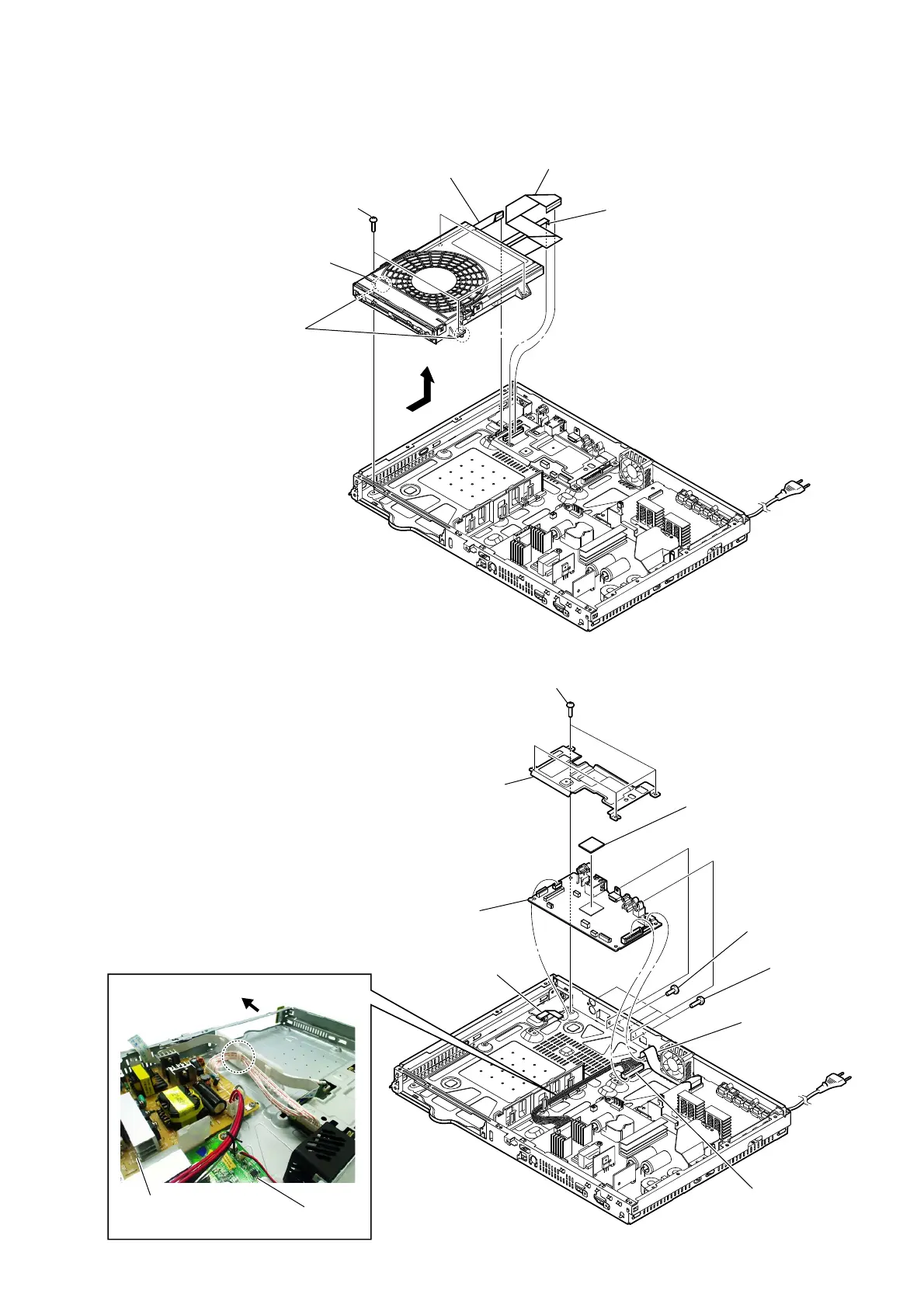

2-7. BD DRIVE (BPX-7)
2-8. MB148 BOARD
4 four screws
(+BV3 (3-CR))
7 BD drive BPX-7
5 boss
6
1 flexible flat cable (45 core) (CN1101)
3 wire (flat type)
(9 core) (CN1260)
2 wire (flat type) (5 core) (CN1270)
Note:
When you install the BD
drive (BPX-7), please match
the position of the boss two
places.
1 wire (flat type) (7 core)
(CN5902)
2 wire (flat type)
(30 core) (CN5904)
3 CN5301 (11P)
:LUHVHWWLQJ
front side
AMP board
switching regulator
(SWR1)
5 three screws
(+BV3 (3-CR))
4 four screws (+BV3 (3-CR))
7 heat sink (MB)
8 sheet, radiation
9 MB148 board
6 one screw (+B 3
u 5)
Ver. 1.1
