Sony HBD-E690 - BD Drive Section (BPX-7)

84
HBD-E190/E290/E490/E690

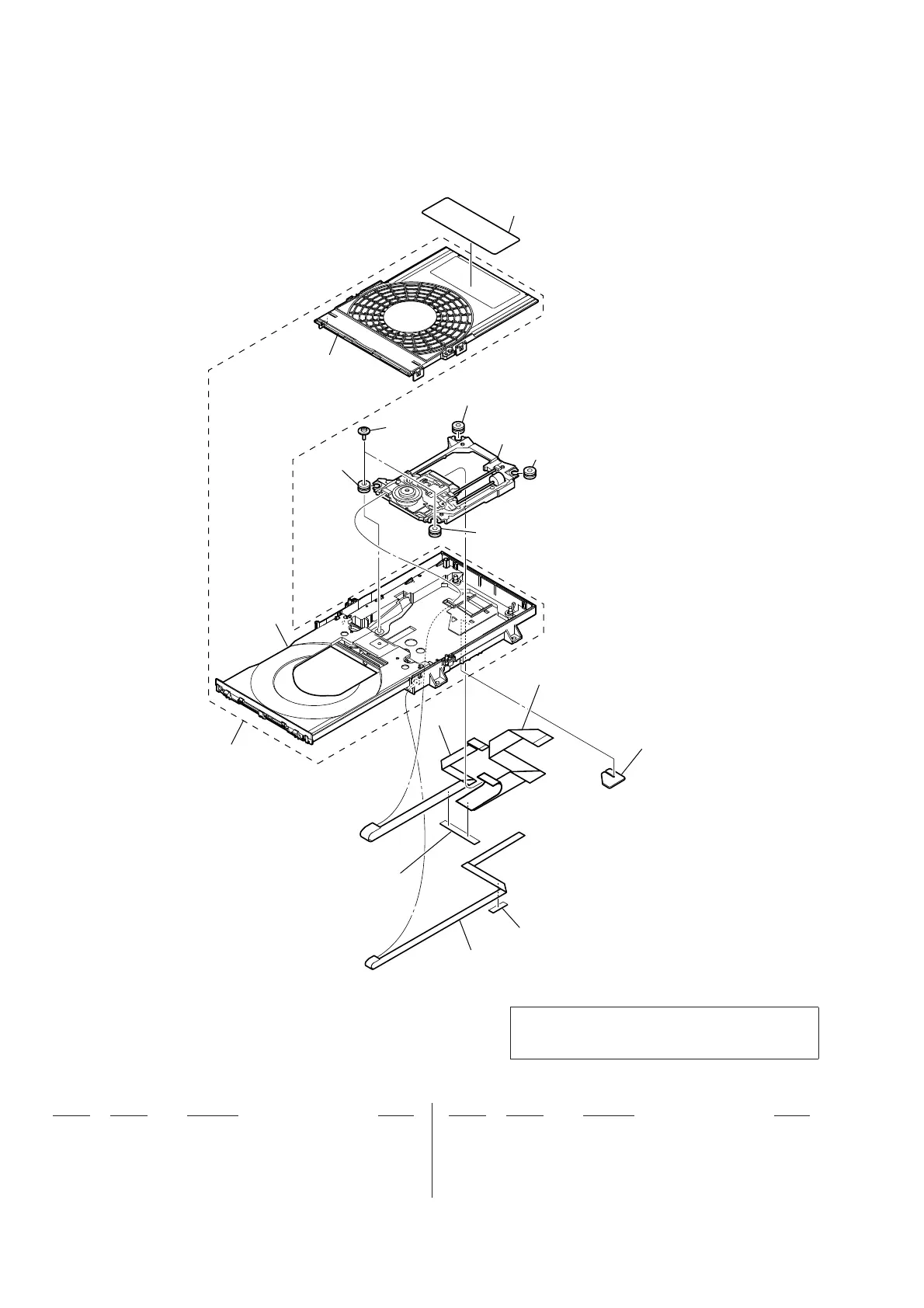

6-5. BD DRIVE SECTION (BPX-7)
Note: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND FFC”
on page 13 when you install it in the unit.
not supplied
202
201
not supplied
not supplied
not supplied
206
207
208
203
205
204
204
204
204
not supplied
201 4-295-426-01 COVER, DRIVE
202 A-1850-153-C LOADING FOR SERVICE (BPX-7)
203 2-345-115-01 SCREW (S), FLOAT
204 4-175-937-31 INSULATOR
0 205 8-820-452-03 DEVICE, OPTICAL KEM480AAA/C2RP1
206 1-839-608-61 WIRE (FLAT TYPE) (9 CORE)
207 1-839-609-11 FLEXIBLE FLAT CABLE (45 CORE)
208 1-839-611-61 WIRE (FLAT TYPE) (5 CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.2
