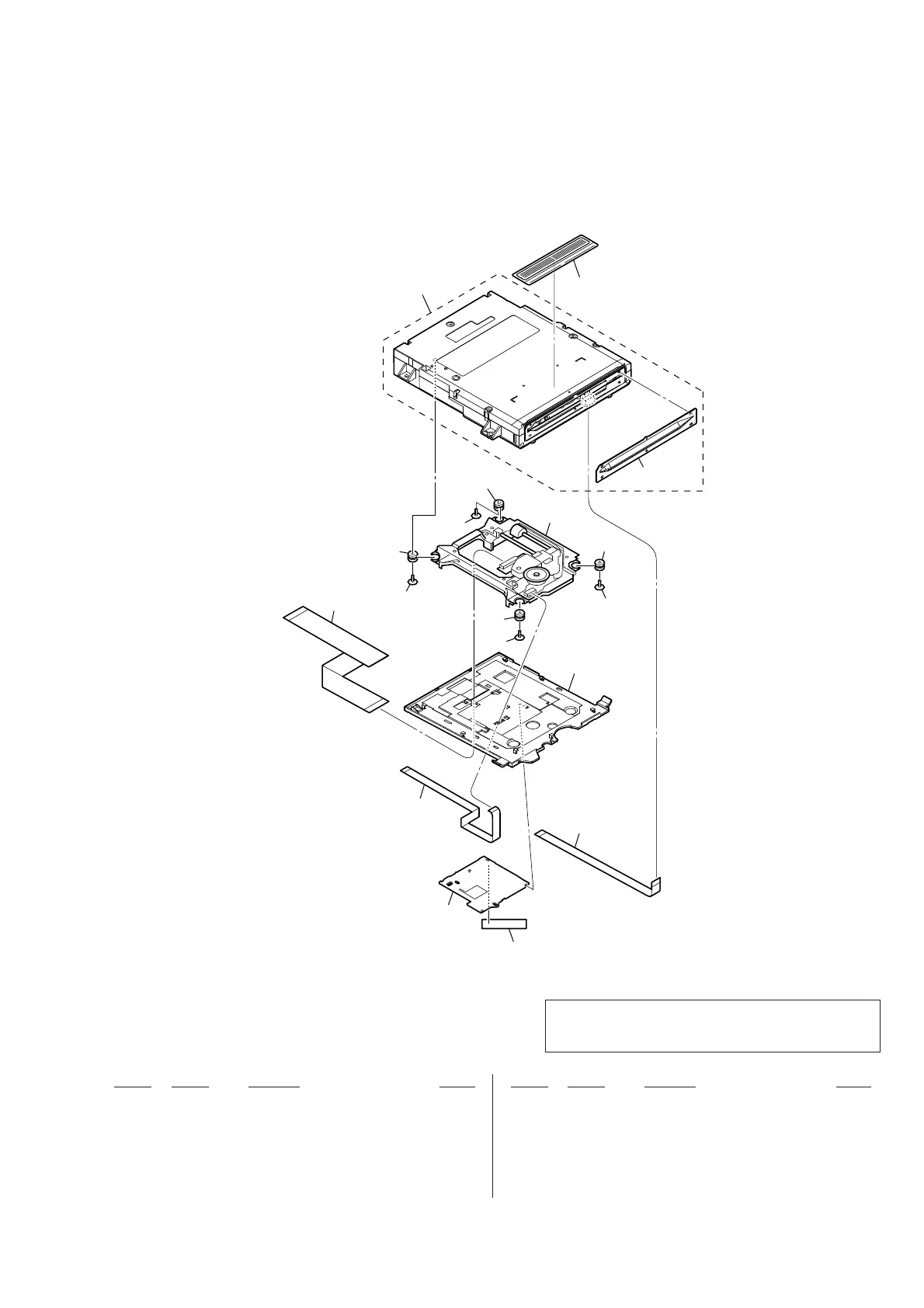

6-4. BD DRIVE SECTION (BSX-3)
151 4-294-288-01 GUIDE, FFC
152 2-345-115-01 SCREW (S), FLOAT
153 4-175-937-31 INSULATOR
154 4-293-849-01 COVER, BOTTOM
155 4-176-895-01 CURTAIN
FFC1 1-838-108-11 CABLE, FLEXIBLE FLAT (45P)
FFC2 1-828-302-61 WIRE (FLAT TYPE) (7 CORE)
FFC3 1-827-996-61 WIRE (FLAT TYPE) (9 CORE)
LOM1 A-1839-907-A LOADING ASSY (NX)
(Including MS-486 board, loading motor)
0 OP1 8-820-452-03 OPTICAL PICK-UP (KEM480AAA/C2RP1)
(for SERVICE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
FFC1
FFC3
OP1
LOM1
FFC2
155
154
151
152
152
153
153
153
153
152
152
not supplied
not supplied
Note: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND WIRE
(FLAT TYPE)” on page 26 when you install it in the unit.
