Sony HBD-T79 - FL Board Section

86
HBD-N590/N790W/N890W/N990W/N995W/T79

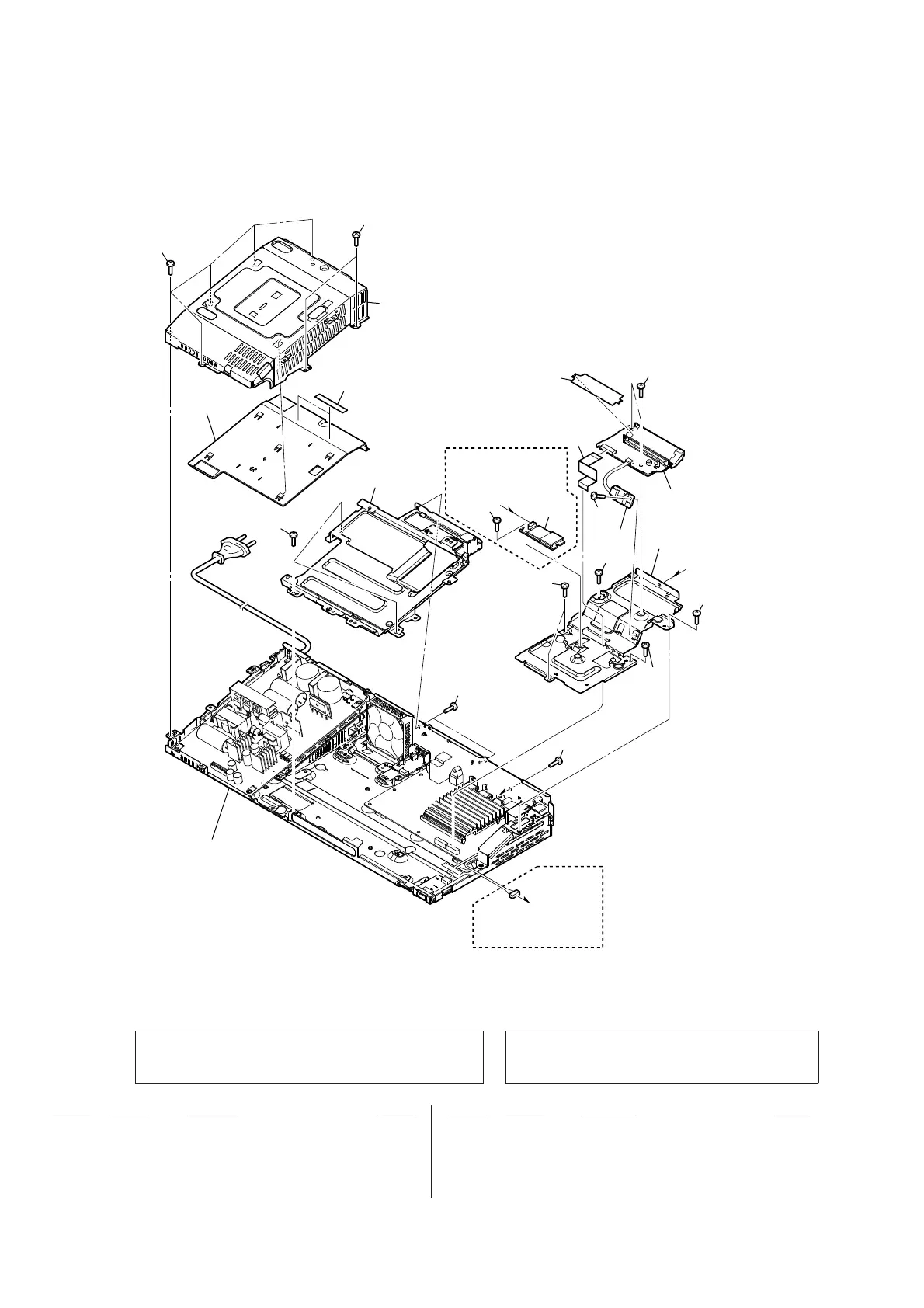

6-5. FL BOARD SECTION
201 3-077-331-41 +BV3 (3-CR)
202 3-077-331-62 +BV3 (3-CR)
203 A-1850-453-A SIRCS BOARD, COMPLETE
204 A-1850-452-A FL BOARD, COMPLETE
205 3-077-331-91 +BV3 (3-CR)
FFC8 1-828-339-61 WIRE (FLAT TYPE) (15 CORE)
WLC1 1-458-494-11 CARD, WIRELESS LAN
(N590/N790W/N890W/N990W/T79)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
switching regulator section
203
204
205
205
201
202
202
202
202
202
202
202
202
201
not supplied
not supplied
not supplied
not supplied
FFC8
WLC1
not supplied
not supplied
D
D
E
E
(N590/N790W/
N890W/N990W/T79)
(N590/N790W/
N890W/N990W/T79)
Note 2: When the wireless LAN card (WLC1) is replaced,
refer to “CHECKING METHOD OF NETWORK
OPERATION” on servicing notes (page 9).
Note 1: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND WIRE
(FLAT TYPE)” on page 26 when you install it in the unit.
Ver. 1.1
