89
HBD-N590/N790W/N890W/N990W/N995W/T79

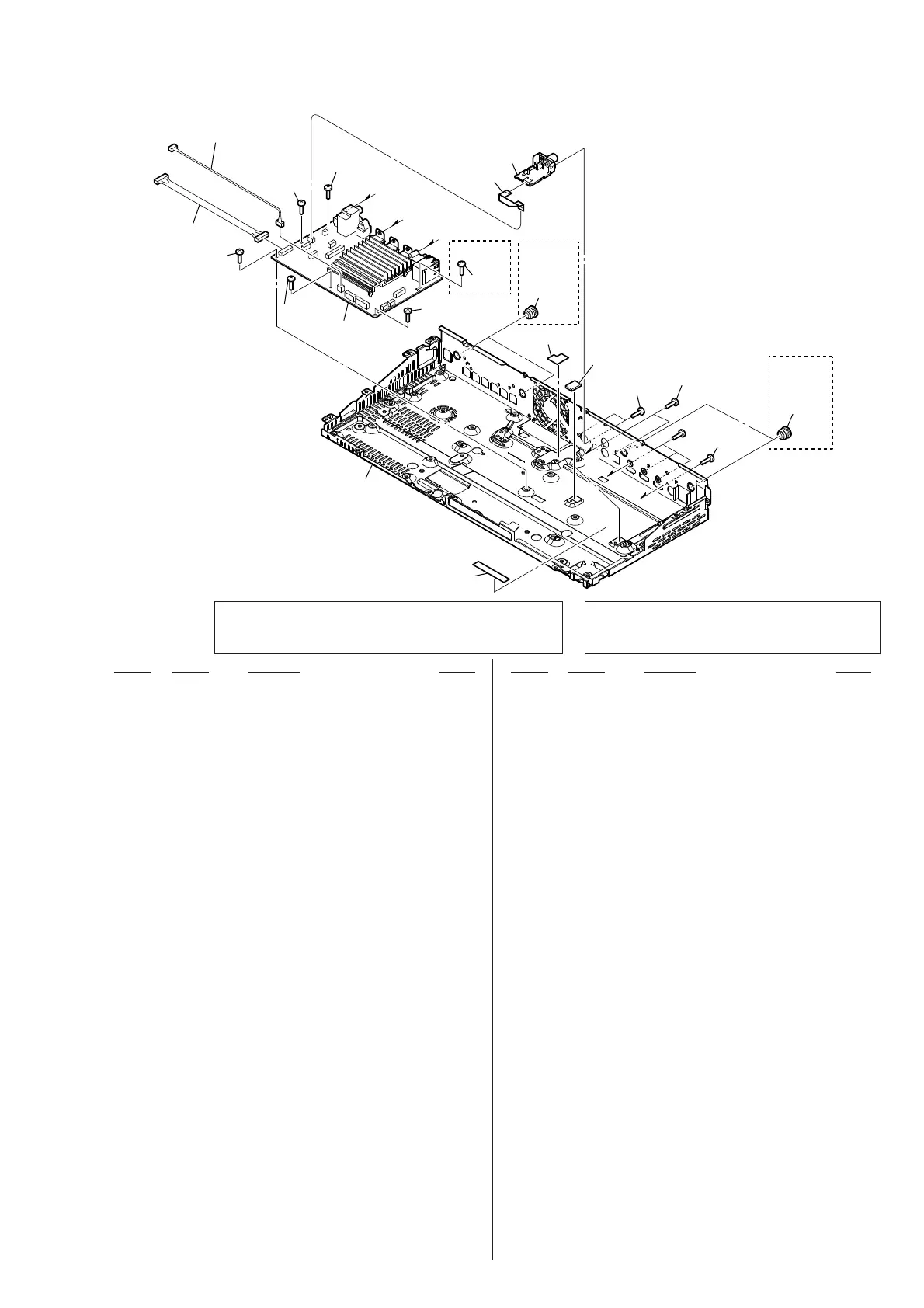

6-8. MB-149 BOARD SECTION
9 351 A-1865-341-A MB-149 BOARD, COMPLETE (for SERVICE)
(N590: AEP)
9 351 A-1865-342-A MB-149 BOARD, COMPLETE (for SERVICE)
(N590: UK)
9 351 A-1865-343-A MB-149 BOARD, COMPLETE (for SERVICE)
(N590: SP)
9 351 A-1865-344-A MB-149 BOARD, COMPLETE (for SERVICE)
(N590: AUS)
9 351 A-1865-345-A MB-149 BOARD, COMPLETE (for SERVICE)
(N790W: US/T79)
9 351 A-1865-347-A MB-149 BOARD, COMPLETE (for SERVICE)
(N790W: AEP)
9 351 A-1865-348-A MB-149 BOARD, COMPLETE (for SERVICE)
(N790W: UK)
9 351 A-1865-350-A MB-149 BOARD, COMPLETE (for SERVICE)
(N890W: US)
9 351 A-1865-351-A MB-149 BOARD, COMPLETE (for SERVICE)
(N890W: CND)
9 351 A-1865-352-A MB-149 BOARD, COMPLETE (for SERVICE)
(N890W: AEP)
9 351 A-1865-353-A MB-149 BOARD, COMPLETE (for SERVICE)
(N890W: E3)
9 351 A-1865-354-A MB-149 BOARD, COMPLETE (for SERVICE)
(N890W: E15)
9 351 A-1865-355-A MB-149 BOARD, COMPLETE (for SERVICE)
(N890W: EA)
9 351 A-1865-356-A MB-149 BOARD, COMPLETE (for SERVICE)
(N890W: SP)
9 351 A-1865-358-A MB-149 BOARD, COMPLETE (for SERVICE)
(N890W: TW)
9 351 A-1866-001-A MB-149 BOARD, COMPLETE (for SERVICE)
(N995W)
9 351 A-1866-002-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: CND)
9 351 A-1866-003-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: AEP)
9 351 A-1866-004-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: RU)
9 351 A-1866-005-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: E12)
9 351 A-1866-006-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: E3)
9 351 A-1866-007-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: E15)
9 351 A-1866-008-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: EA)
9 351 A-1866-009-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: SP)
9 351 A-1866-010-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: AUS)
9 351 A-1866-011-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: TH)
9 351 A-1866-012-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: TW)
9 351 A-1866-013-A MB-149 BOARD, COMPLETE (for SERVICE)
(N990W: MX)
9 351 A-1870-869-A MB-149 BOARD, COMPLETE (for SERVICE)
(N790W: PX)
9 351 A-1882-499-A MB-149 BOARD, COMPLETE (for SERVICE)
(N890W: RU)
352 3-077-331-62 +BV3 (3-CR)
353 4-298-558-01 SHEET (RADIATION)
354 3-077-331-41 +BV3 (3-CR)
355 4-235-399-01 CATCHER (N990W/N995W)
FFC6 1-828-295-61 WIRE (FLAT TYPE) (7 CORE)
TU1 A-1846-432-A TUNER 2FMPR-NS (AEP, UK)
TU1 A-1846-434-A TUNER 2FMF-NS (US, CND, PX)
TU1 A-1848-566-A TUNER 2FMP-NS
(E3, E12, E15, EA, MX, SP, TW, TH, AUS, CH, RU)
#1 7-682-544-04 SCREW +B 3X3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not supplied
#1
not supplied
not supplied
FFC6
TU1
353
355
355
354
354
354
351
352
352
(N990W/
N995W)
(N990W/
N995W)
(N590)
352
352
352
352
L
M
N
L
M
N
Note 2: When the MB-149 board is replaced, refer to
“CHECKING METHOD OF NETWORK OP-
ERATION” on servicing notes (page 9).
Note 1: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND WIRE
(FLAT TYPE)” on page 26 when you install it in the unit.
Ver. 1.1
