Sampling frequencies
MP3 (MPEG 1 Audio Layer-3):
32/44.1/48 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
(USB) port:
Maximum current: 500 mA
Tuner Section
System PLL quartz-locked digital
synthesizer
FM tuner section
Tuning range
North American models: 87.5 MHz - 108.0 MHz
(100 kHz step)
Other models: 87.5 MHz - 108.0 MHz (50
kHz step)
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
North American, Mexican, and Latin American
models:
530 kHz - 1,710 kHz (with
the interval set at 10 kHz)
531 kHz - 1,710 kHz (with
the interval set at 9 kHz)
European, Russian, and Middle Eastern models:
531 kHz - 1,602 kHz (with
the interval set at 9 kHz)
Australian and New Zealand models:
531 kHz - 1,710 kHz (with
the interval set at 9 kHz)
530 kHz - 1,710 kHz (with
the interval set at 10 kHz)
Other models: 531 kHz - 1,602 kHz (with
the interval set at 9 kHz)
530 kHz - 1,610 kHz (with
the interval set at 10 kHz)
Antenna (aerial) AM loop antenna (aerial)
Intermediate frequency 450 kHz
Video Section (DZ370/DZ570/DZ777)
Outputs VIDEO: 1 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
P
B/CB, PR/CR: 0.7 Vp-p
75 ohms
HDMI OUT: Type A (19
pin)
Video Section (DZ560/DZ660)
Outputs VIDEO: 1 Vp-p 75 ohms
R/G/B: 0.7 Vp-p 75 ohms
HDMI OUT: Type A (19
pin)
General
Power requirements
Mexican models: 120 V AC, 60 Hz
Taiwan models: 120 V AC, 50/60 Hz
Latin American models: 110 V - 240 V AC, 50/60 Hz
Other models: 220 V - 240 V AC, 50/60 Hz
Power consumption On: 170 W
Standby: 0.3 W (at the
Power Saving mode)
Output voltage (DIGITAL MEDIA PORT)
DC 5 V
Output current (DIGITAL MEDIA PORT)
700 mA
imensions (approx.) 430 mm × 66 mm × 385 mm
(w/h/d) incl. projecting parts
Mass (approx.) 4.2 kg
Design and specifi cations are subject to change
without notice.
Special Component Notice
The components identifi ed by mark 9 contain confi dential infor-
mation.
Strictly follow the instructions whenever the components are re-
paired and/or replaced.
• Abbreviation
AUS : Australian model
E3 : 240 V AC Area in E model
E12 : 220-240 V AC area in E model
E15 : Iran model
E32 : 110 – 240V AC area in E model
KR : Korean model
MX : Mexican model
TW : Taiwan model
Model Part No.
DZ370: E12 model
3-273-759-9[]
DZ560: UK model
3-273-761-0[]
DZ660: AEP, UK model
3-273-761-1[]
DZ777: E3 model
3-273-761-3[]
DZ777: AUS model
3-273-761-4[]
DZ777: KR model
3-273-761-6[]
DZ777: E15 model
3-273-761-9[]
DZ570: E12 model
3-273-762-0[]
DZ570: E3 model
3-273-762-1[]
DZ570: MX model
3-273-762-2[]
DZ570: AUS model
3-273-762-3[]
DZ570: KR model
3-273-762-6[]
DZ570: E32 model
3-273-762-7[]
DZ570: TW model
3-273-762-8[]
DZ570: E15 model
3-273-762-9[]
DZ570: PX model
3-875-160-1[]

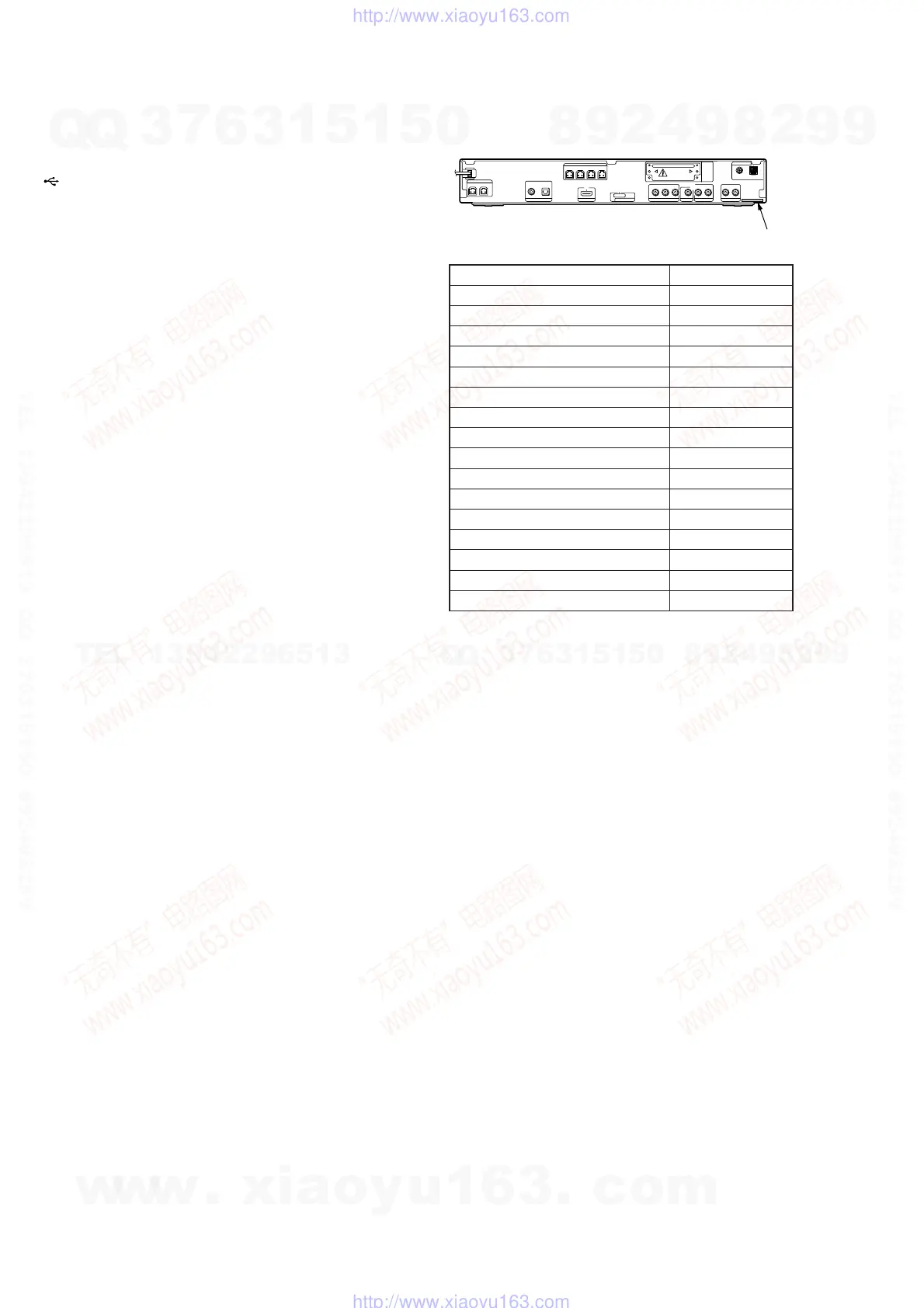

MODEL IDENTIFICATION
– Back Panel –
Parts No.
Ver. 1.1
