26
HCD-EP30/EP40
12
3
5
1
2
11
10
9
8
7
6
#1
#1
#4
#2
#
#2
#2
#3
#5
Front panel section
CD cabinet section
#3
#3
#1
TR401

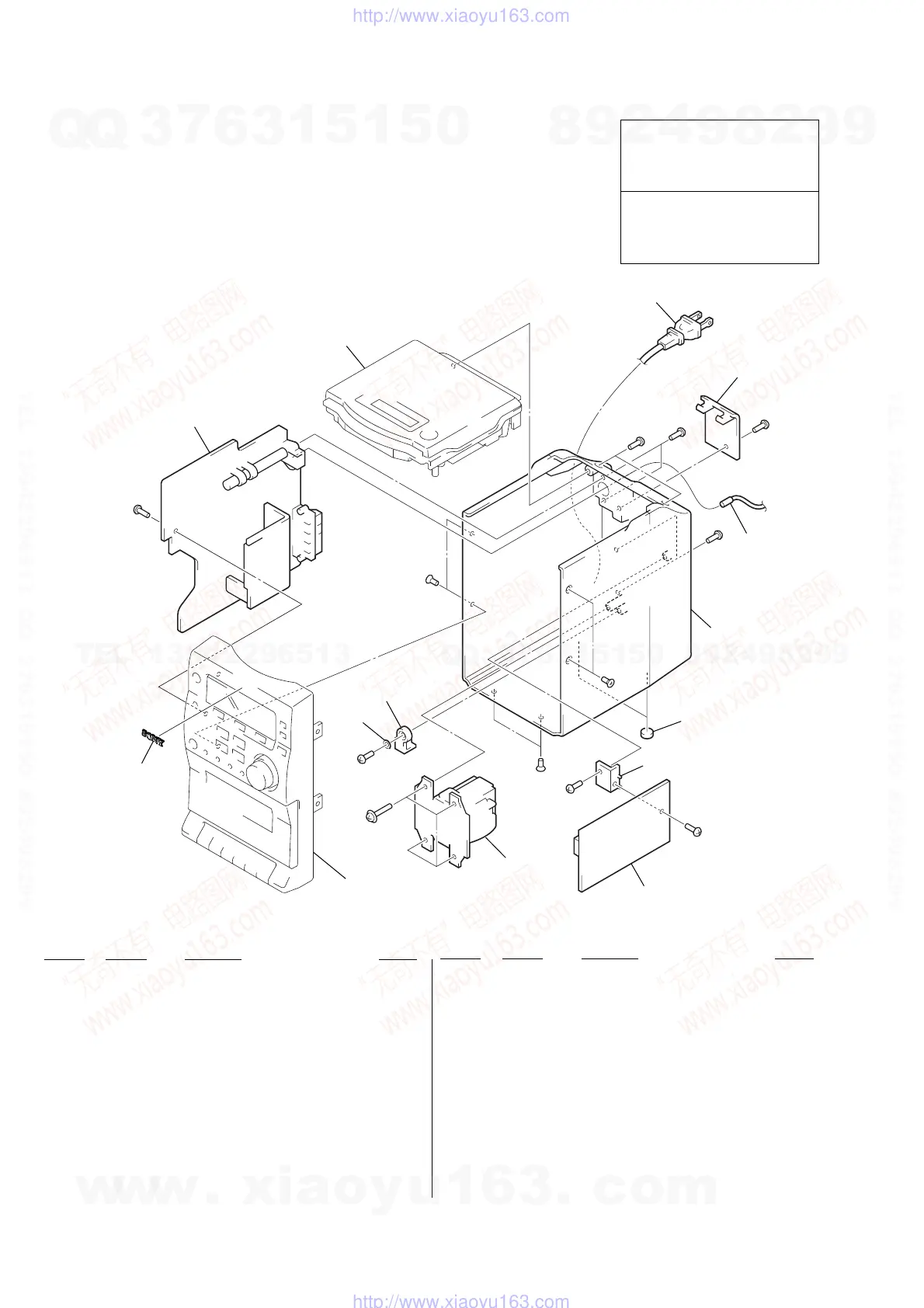

7-1. CABINET SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-451-162-00 WASHER
2 4-235-952-01 AC CORD HOLDER
3 4-236-194-01 EMBLEM BADGE
5 A-4726-713-A MAIN BOARD, COMPLETE (EP40)
5 A-4726-786-A MAIN BOARD, COMPLETE (EP30: AEP, UK)
5 A-4726-868-A MAIN BOARD, COMPLETE
(US, CND, SP, EA, TW, MX, AR, AUS)
06 1-555-750-00 CORD, POWER (AEP, UK, EA, SP)
06 1-696-966-31 CORD, POWER (AUS)
06 1-783-525-31 CORD, POWER (TRACKING) (TW, MX)
06 1-783-820-11 CORD, POWER (US, CND)
06 1-783-940-51 CORD, POWER (AR)
7 4-235-974-01 CAB, ANTENNA COVER
8 1-823-170-11 CORD (WITH CONNECTOR) (FM ANT)
9 4-235-972-01 REAR CABINET (AEP, UK)
9 4-236-544-01 REAR CABINET
(US, CND, EA, SP, AR, TW, MX, AUS)
10 4-235-995-01 RUBBER FOOT
11 4-235-944-01 POWER PWB MOUNTING BKT
12 A-4726-866-A POWER BOARD, COMPLETE
(US, CND, MX, TW)
12 A-4726-715-A POWER BOARD, COMPLETE
(AEP, UK, EA, SP, AR, AUS)
0TR401 1-437-463-11 TRANSFORMER, POWER
(AEP, UK, EA, SP, AR, AUS)
0TR401 1-437-476-11 TRANSFORMER, POWER (US, CND, TW, MX)
• Abbreviation
AR : Argentina model
AUS : Australian model
CND : Canadian model
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
EA : Saudi Arabia model
MX : Mexican model
SP : Singapore model
TW : Taiwan model
