Sony HCD-EX9 - MAIN Board Section

50
HCD-EX6/EX6T/EX8/EX8T/EX9/EX9T
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 A-1748-728-A MAIN-AMP BOARD, COMPLETE (EX9:E2,E51,AR)
201 A-1748-729-A MAIN-AMP BOARD, COMPLETE (EX8:E2,E51,AR)
201 A-1748-730-A MAIN-AMP BOARD, COMPLETE (EX6)
201 A-1748-731-A MAIN-AMP BOARD, COMPLETE (EX9T)
201 A-1748-732-A MAIN-AMP BOARD, COMPLETE (EX8T)
201 A-1748-733-A MAIN-AMP BOARD, COMPLETE (EX6T)
201 A-1771-591-A MAIN-AMP BOARD, COMPLETE (EX9:MX)
201 A-1771-592-A MAIN-AMP BOARD, COMPLETE (EX8:MX)
202 3-905-609-31 SCREW (TRANSISTOR)
0 PT004 1-445-346-11 TRANSFORMER, POWER (MAIN) (EX6/EX6T)
0 PT005 1-445-568-11 TRANSFORMER, POWER (MAIN)
(EX8:E2,E51,AR/EX8T)
0 PT005 1-445-571-11 TRANSFORMER, POWER (MAIN) (EX8:MX)
0 PT005 1-445-941-11 TRANSFORMER, POWER (MAIN) (EX9:MX)
0 PT005 1-445-942-11 TRANSFORMER, POWER (MAIN)
(EX9:E2,E51,AR/EX9T)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#6 7-685-880-09 SCREW +BVTT 4X6 (S)

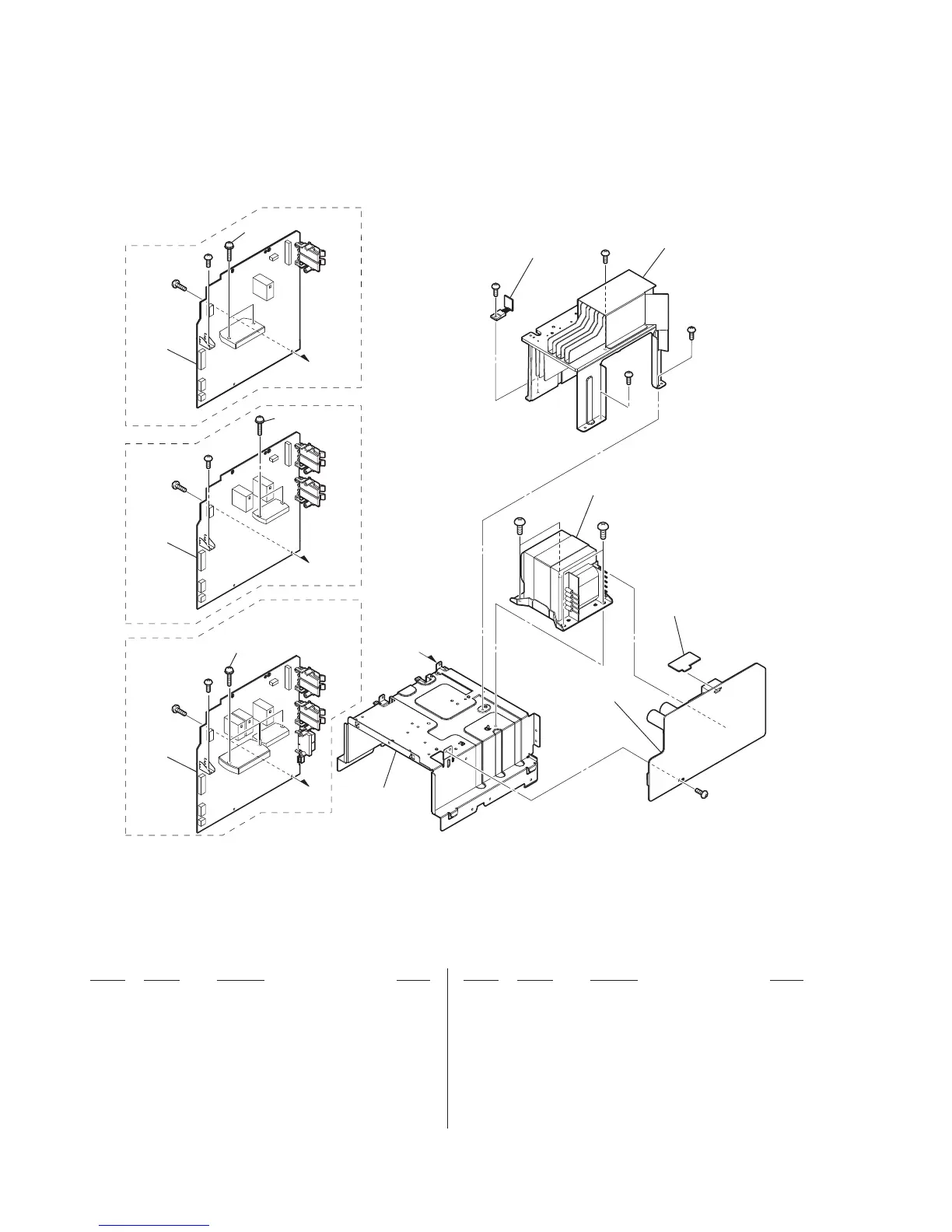

7-5. MAIN BOARD SECTION
A
A
A
A
PT004 (EX6/EX6T)
PT005 (EX8/EX8T/EX9/EX9T)
not supplied
not supplied
not supplied
(REG board)
not supplied
(WIRE COVER board)
not supplied
(PT-POWER board)
201
202
202
202
#1
#1
#1
#1
#1
#1
#1
#1
#1
#6
#6
#1
#1
EX8/EX8T
EX6/EX6T
EX9/EX9T
201
201
Ver. 1.1
