Sony HCD-EX9T - Tape Mechanism Deck (HCD-EX6 T;EX8 T;EX9 T); Front Panel Section

HCD-EX6/EX6T/EX8/EX8T/EX9/EX9T
8

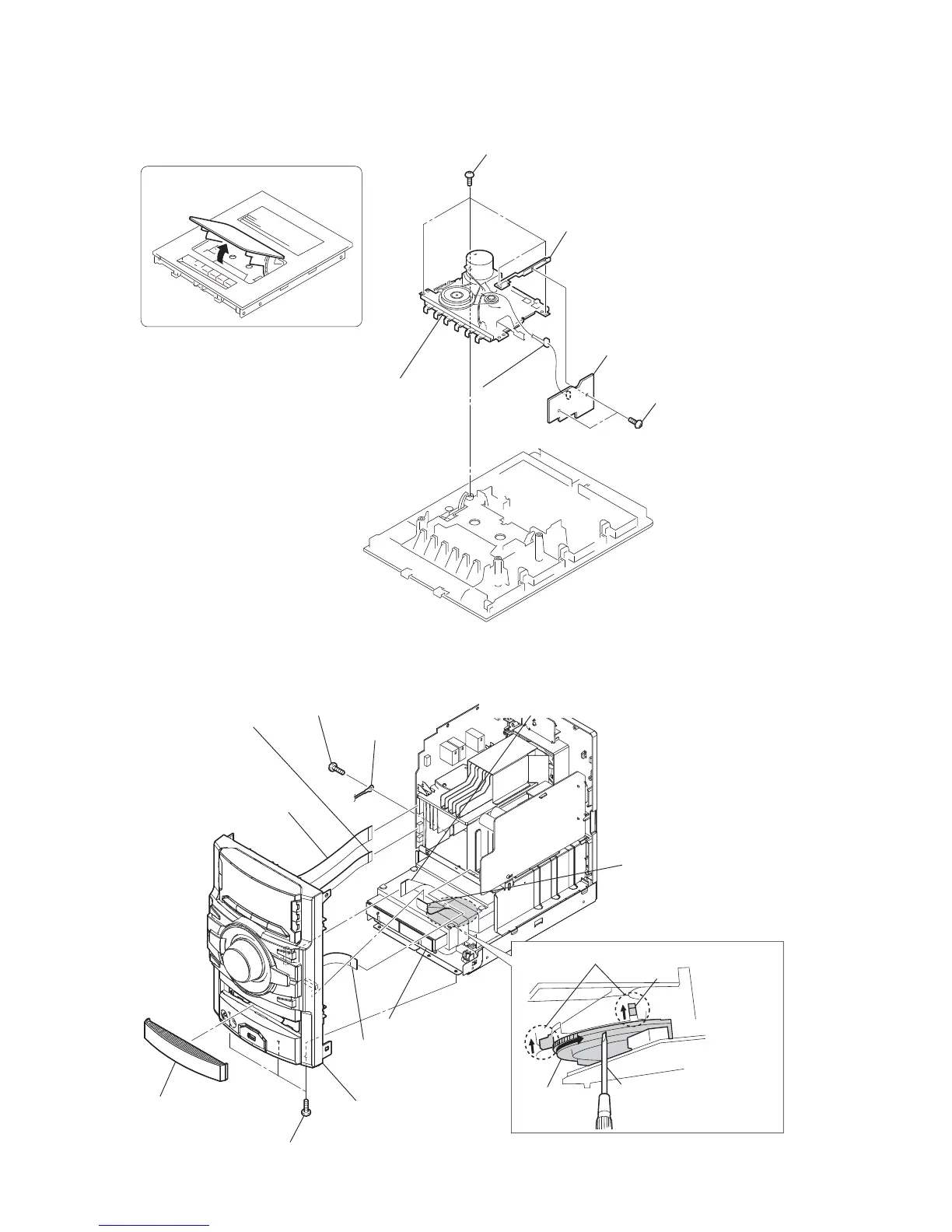

2-3. TAPE MECHANISM DECK
(HCD-EX6T/EX8T/EX9T)
2-4. FRONT PANEL SECTION
1 Open the cassette box.
2 four screws
( +BVTP 2.6 u8 )
7 tape mechanism deck
3 two screws
( +BVTP 3 u6 )
6 DECK board
4 bracket (deck)
5 CN501 (8P)
qa three screws
(+BVTT 3 u8)
qs front panel section
9 screw
(+BVTP 3 u10)
0 lug
2 Pull the tray by hand.
3 loading panel
1
Turn a gear by a driver
till a lever rises up to the
position of the figure.
lever
state of opening the CD tray
gear
4 wire (flat type) (19 core)
(CN603) (EX6/EX8/EX9)
wire (flat type) (21 core)
(CN602) (EX6T/EX8T/EX9T)
5 wire (flat type) (9 core)
(CN604)
6 wire (flat type) (11 core)
(CN011)
7 wire (flat type) (13 core)
(CN302)
8 wire (flat type) (25 core)
(CN902)
