Sony HCD-FX900KW - Section 8 Exploded Views; Overall Assy

90
HCD-FX900KW
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AR : Argentine model
AUS: Australian model
E32 : 110-240V AC area in E model
KR : Korean model
SP : Singapore model
TW : Taiwan model
Ref. No.

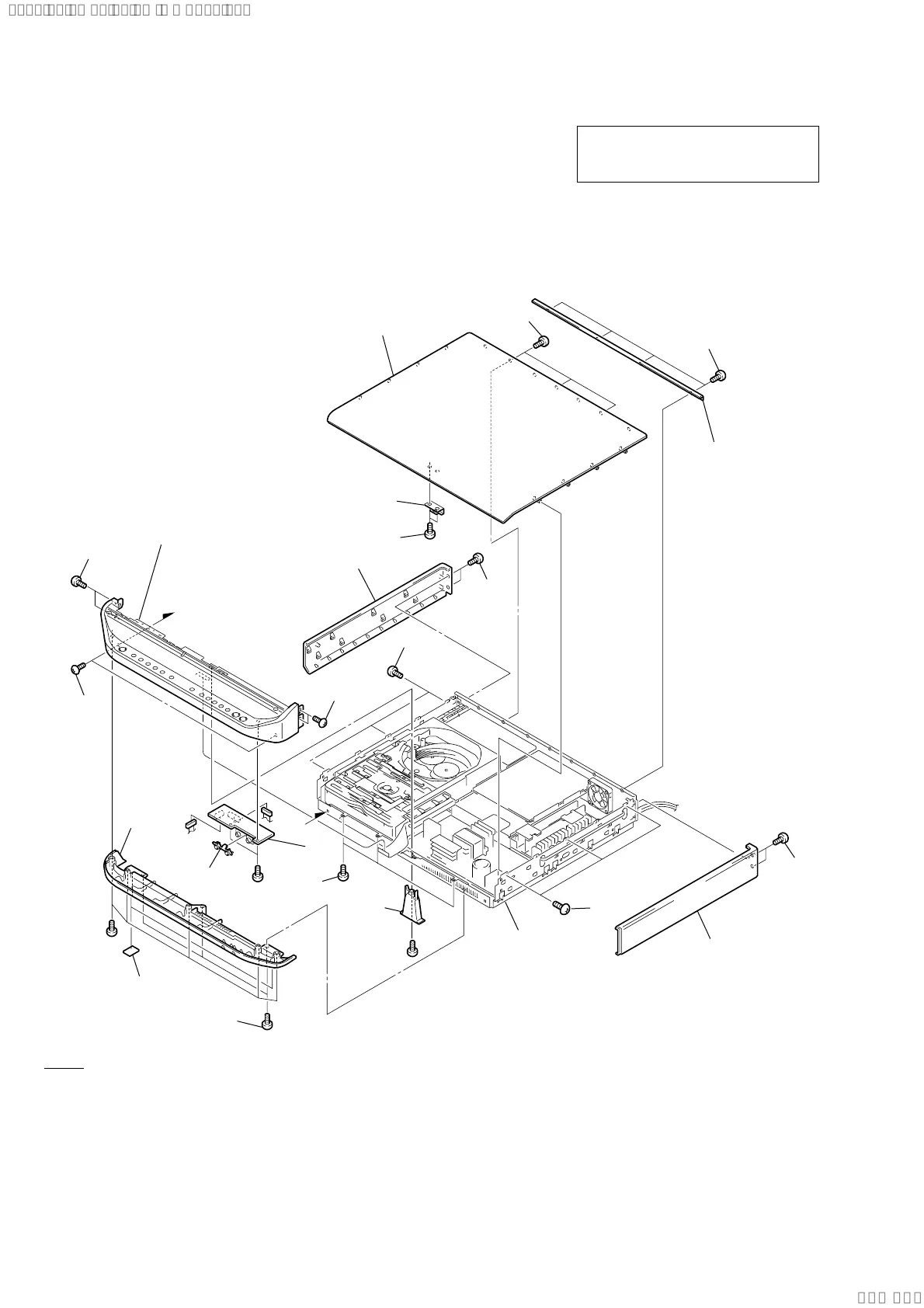

8-1. OVERALL ASSY
chassis section-1
#2
#1
#3
not
supplied
not
supplied
front panel section
a
a
2
3
4
1
9
9
9
9
5
7
8
10
6
10
10
10
9
9
10
10
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
