HCD-GTR333/GTR555/GTR777/GTR888
12

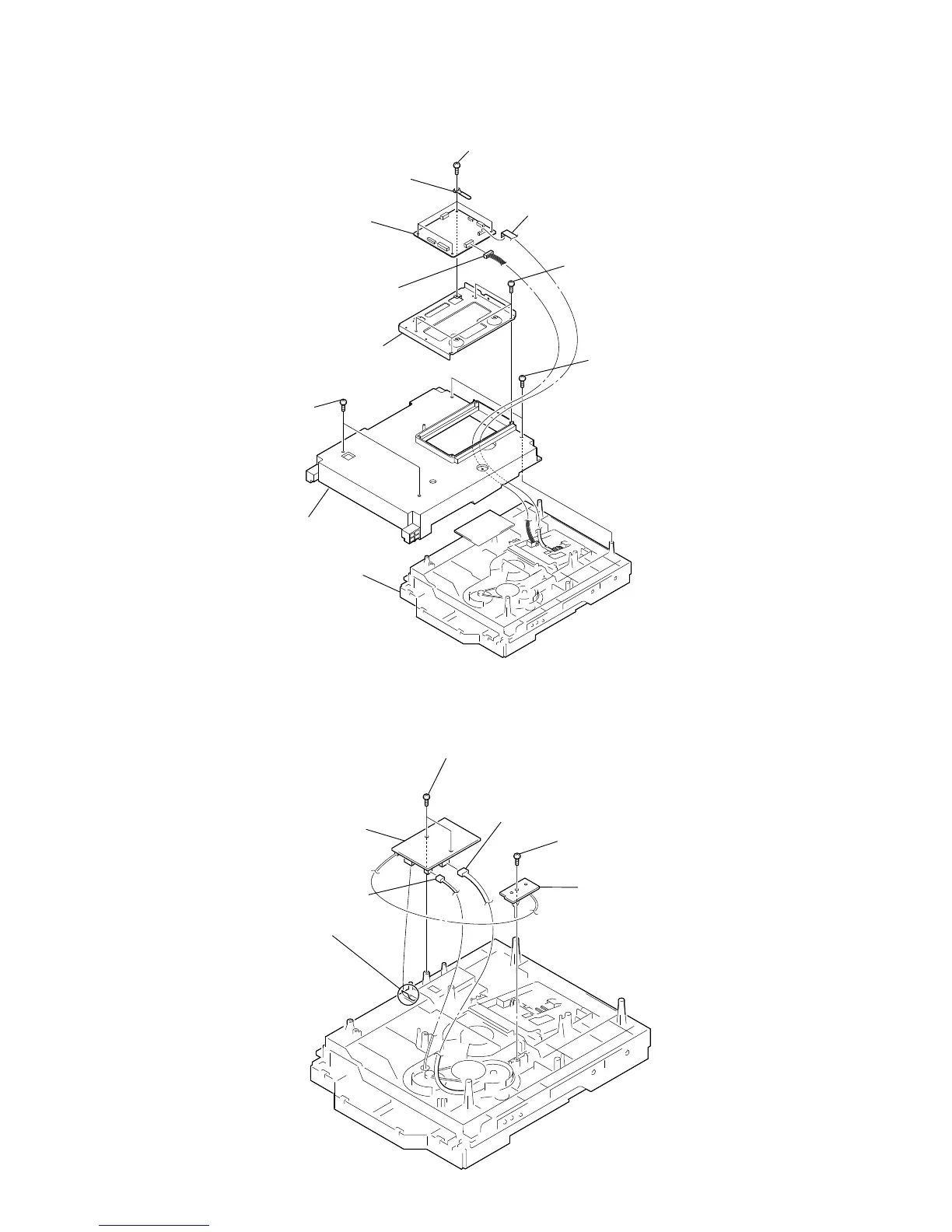

2-11. DMB21 BOARD
2-12. DRIVER BOARD, SWITCH BOARD
3 four screws
(+BVTP 3 u 8)
6 three screws
(+BVTP 3 u 8)
8 two screws
(+BVTP 3 u 10)
9 two screws
(+BVTP 3 u 10)
0 cover dust (CDM)
qa CDM74HFV
5 DMB21 board
4 clamp
7 bracket, holder (DMB)
1 wire (flat type) (24 core)
(CN101)
2 CN201 (6P)
1 two screws
(+BTTP (M2.6))
6 one screw
(+BTTP (M2.6))
7 SWITCH board
2 CN703 (4P)
3 CN704 (2P)
4 wire (flat type) (5 core)
(CN702)
5 DRIVER board
