77
HCD-GTR333/GTR555/GTR777/GTR888

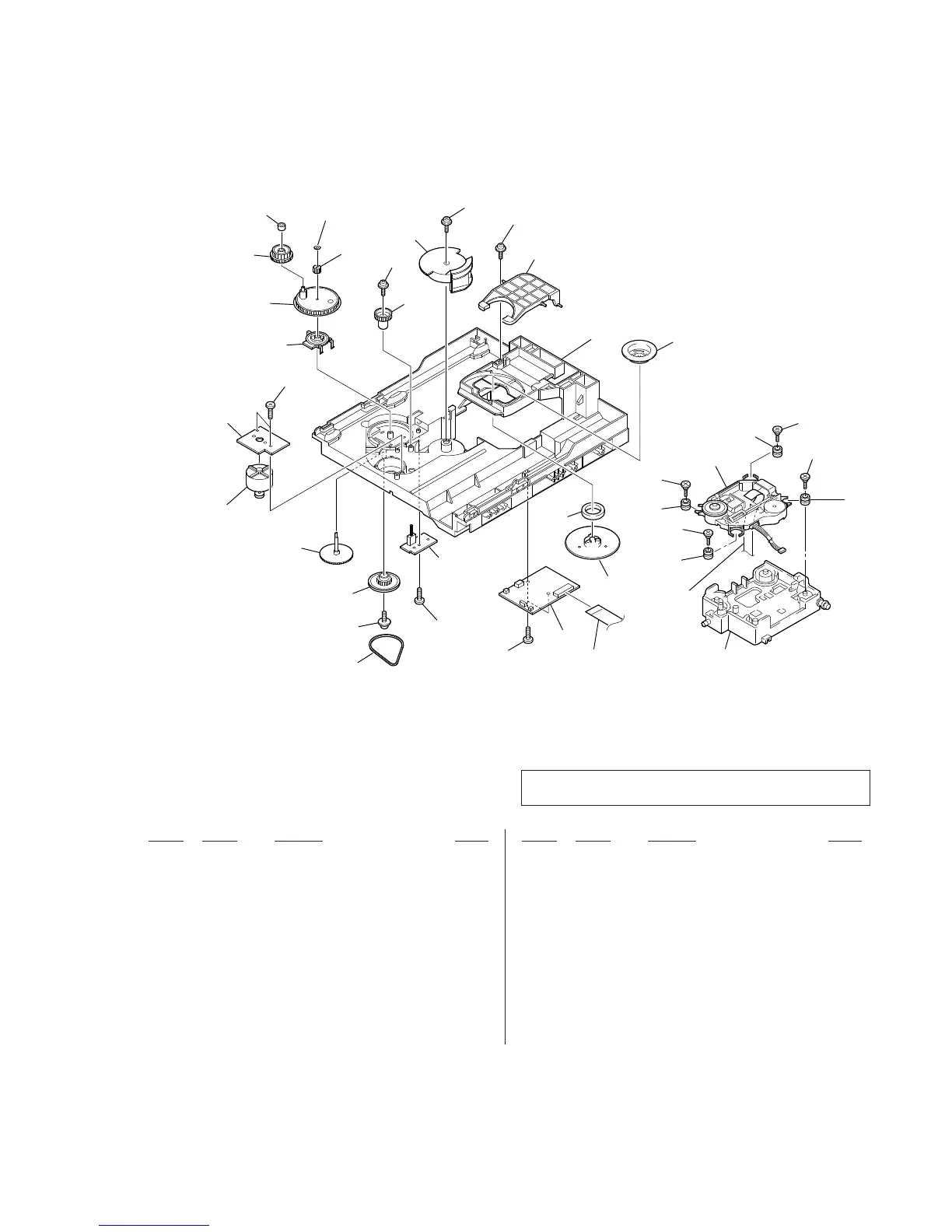

6-6. CD MECHANISM SECTION (2)
251 4-218-253-52 SCREW (M2.6), +BTTP
252 4-244-034-11 BELT (LOADING)
253 4-218-252-52 SCREW (+PTPWH M2.6), FLOATING
254 4-225-844-01 GEAR (LOADING A)
255 4-224-613-11 GEAR (SHAFT)
256 4-244-108-01 GEAR, SWING
257 4-224-609-01 GEAR (LOADING C)
258 4-224-608-01 COLLAR, SWING
259 3-016-533-11 WASHER (FR), STOPPER
260 4-224-611-01 GEAR (LOADING B)
261 4-224-606-01 GEAR (RV)
262 4-243-818-01 GEAR (U/D)
263 2-541-918-01 LEVER (LIFTER (H))
264 3-273-015-02 CHASSIS
265 2-345-983-01 PULLEY B (310), CHUCKING
266 8-820-322-04 DEVICE, OPTICAL KHM-313CAB/C2RP
267 1-828-423-11 WIRE (FLAT TYPE) (24 CORE)
268 2-634-618-01 INSULATOR
269 3-087-599-01 INSULATOR SCREW
270 1-828-971-11 WIRE (FLAT TYPE) (13 CORE)
271 A-1103-756-B DRIVER BOARD, COMPLETE
M751 A-1143-804-A MOTOR ASSY, LOADING
RE701 1-477-680-12 ENCODER, ROTARY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
255
251
271
270
251
252
253
254
not supplied
not supplied
(SWITCH board)
259
260
262
263
264
253
253
251
256
257
258
261
253
RE701
not supplied
(MOTOR, LD board)
M751
not
supplied
not supplied
265
268
268
269
269
266
268
268
269
269
267
