Sony HCD-H77 - Exploded Views; Case, Power Section

NOTE:
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
Items marked “#‘’ are not stocked since
they are seldom required for routine
service. Some delay should be antici-
@ -XX,
| HCD-H66/H70/H77/H1200/H1400
SECTION 7
EXPLODED VIEWS
-X mean standardized parts, so
they may have some differences from
the original one.
@ Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)...(RED)
@ Hardware( # mark) list is given in
the last of this parts list.
The components identified by
rk or dotted line with mark
A are Critical for safety.
eplace only with part number
pated when ordering these items. specified,
Parts Color Cabinet's Color
: Germany model
{T : Italian model
EA : Saudi Arabia model
: Australian model

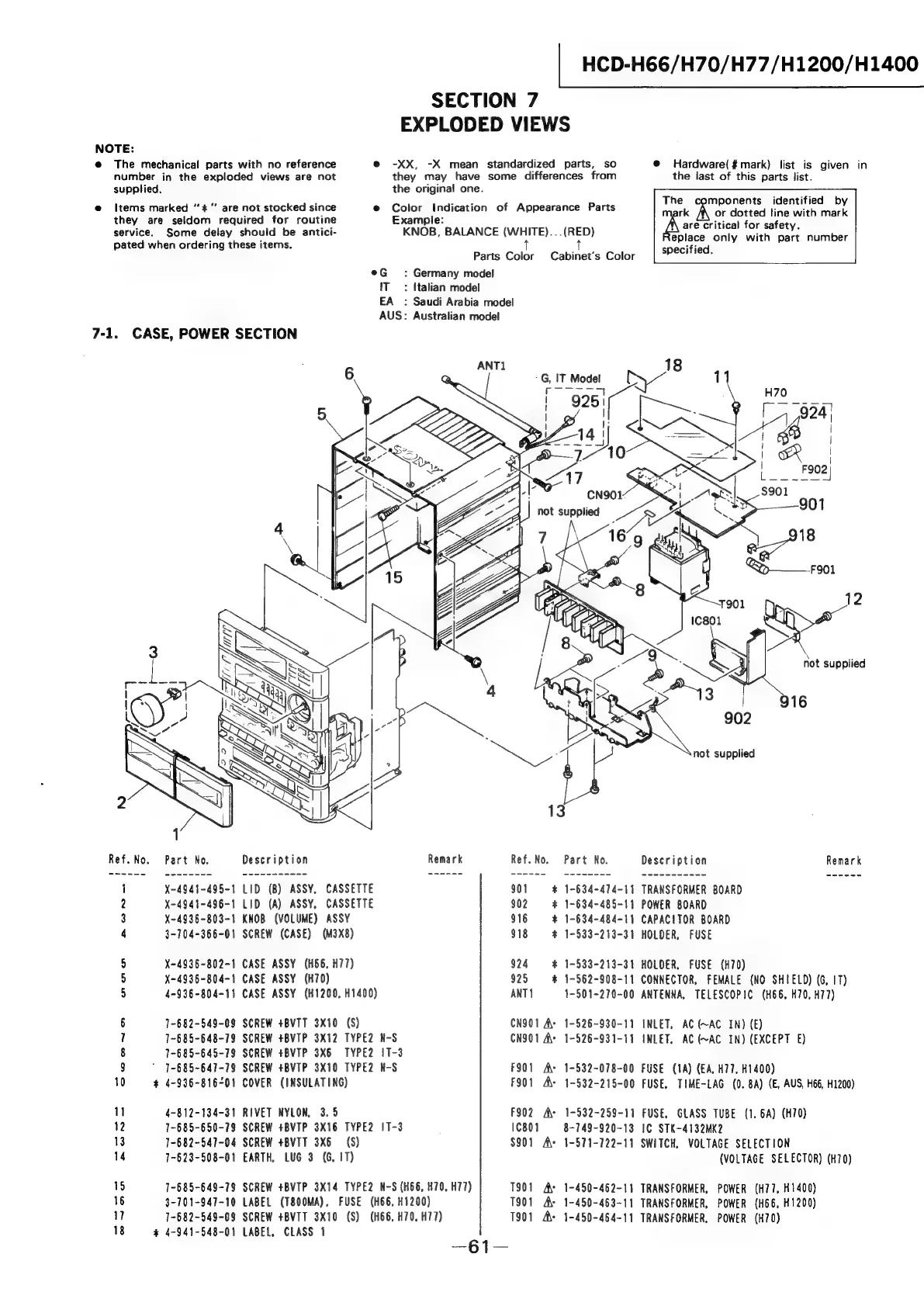

7-1.
CASE, POWER SECTION
12
not supplied
916
902
not supplied
Remark Ref. No. Part No. Description Remark
i X-4941-495-1 LID (B) ASSY, CASSETTE 901 * 1-634-474-11 TRANSFORMER BOARD
2 X-4941-496-1 LID (A) ASSY, CASSETTE $02 * 1-634-485-11 POWER BOARD
3 X-4936-803-1 KNOB (VOLUME) ASSY 916 * 1-634-484-11 CAPACITOR BOARD
4 3-704-366-01 SCREW (CASE) (M3X8) 918 * 1-533-213-31 HOLDER, FUSE
§ X-4936-802-1 CASE ASSY (H66, H77) 924 * 1-533-213-31 HOLDER, FUSE (H70)
X-4936-804-1 CASE ASSY (H70) 925 * §-562-908-11 CONNECTOR, FEMALE (NO SHIELD) (6, 17)
5 4-936-804-11 CASE ASSY (H1200, H1400) ANTI 1-501-270-00 ANTENNA, TELESCOPIC (H66, H70, H77)
6 7-682-549-09 SCREW +BVTT 3X10 (S) CN9O01 As 1-526-930-11 INLET, AC (~AC IN) (E)
7 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S CN901 As 1-526-931-11 INLET, AC (~AC IN) (EXCEPT E)
8 7-685-645-79 SCREW +BVTP 3X6 TYPE2 iT-3
3 * 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S F901 As 1-532-078-00 FUSE (1A) (EA, H77, H1400)
10 * 4-936-816-01 COVER (INSULATING) F901 A 1-532-215-00 FUSE, TIME-LAG (0. 8A) (E, AUS, H66, H1200)
11 4-812-134-31 RIVET NYLON, 3.5 F902 A: 1-532-259-11 FUSE, GLASS TUBE (1. 6A) (H70)
12 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3 10801 8-749-920-13 IC STK-4132MK2
13 7-682-547-04 SCREW +BVTT 3X6 = (S} $901 As 1-571-722-11 SWITCH, VOLTAGE SELECTION
14 7-623-508-01 EARTH, LUG 3 (6, 1T) {VOLTAGE SELECTOR) (H70)
1§ 7-685-649-79 SCREW +BVTP 3X14 TYPE2 N-S (H66, H70, H77) 1901 A» 1-450-462-11 TRANSFORMER, POWER (H77, 11400)
16 3-701-947-10 LABEL (T800MA), FUSE (H66,H1200) T901 Ay 1-450-463-11 TRANSFORMER, POWER (H66, H1200)
17 7-682-549-09 SCREW +BVTT 3X10 (S) (H66. H70, H77) T901 A+ 1-450-464-11 TRANSFORMER, POWER (H70)
18 * 4-941-548-01 LABEL, CLASS 1
