Sony HCD-H77 - Mechanism Deck Section (1); Mechanism Deck Section (2)

| HCD-H66/H70/H77/H1200/H1400

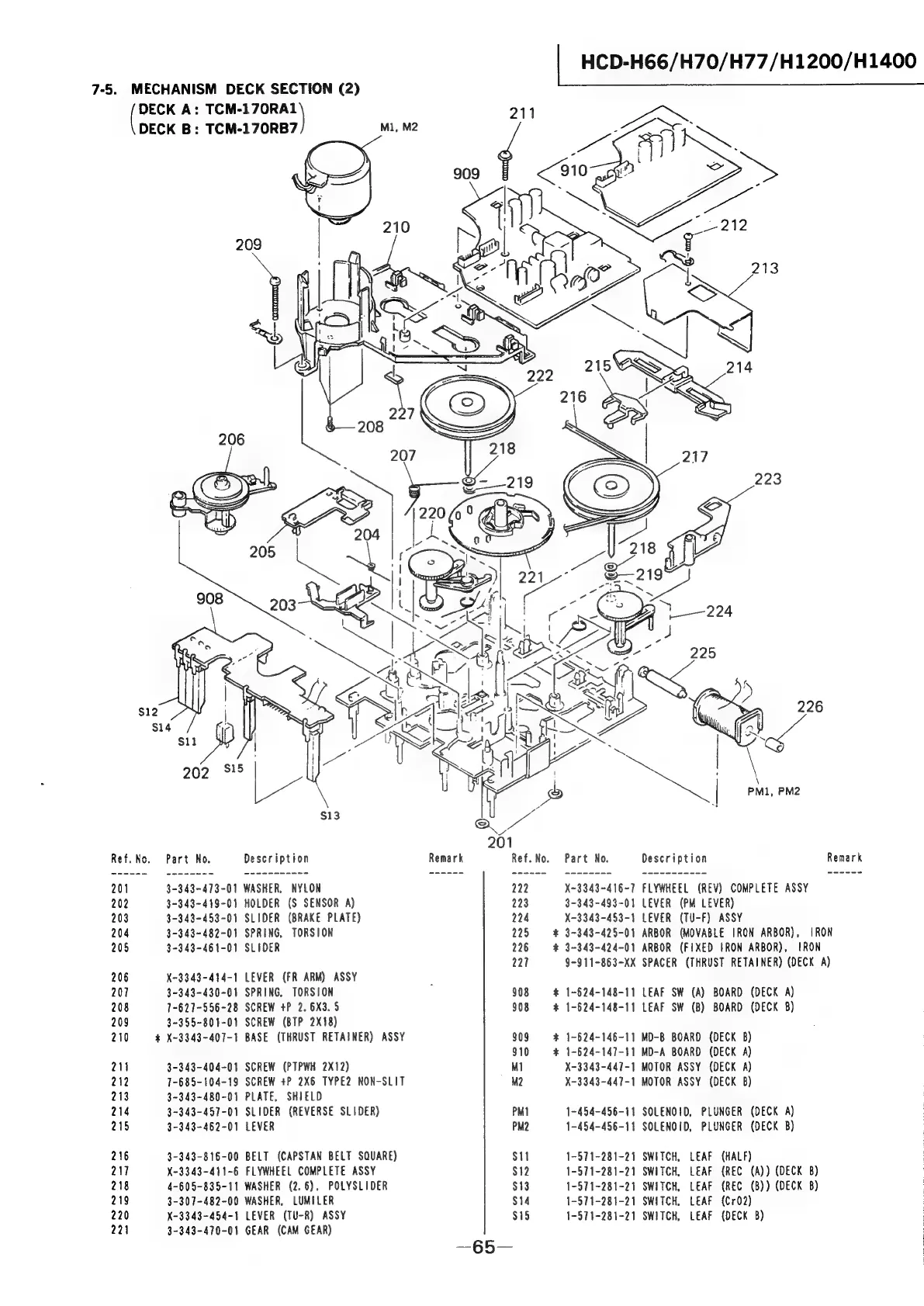

7-5. MECHANISM DECK SECTION (2)
eee A: Ab atte
DECK B: TCM-170RB7
@— 219
i
Ref. No. Part No. Description
201 3-343-473-01 WASHER, NYLON 222 X-3343-416-7 FLYWHEEL (REV) COMPLETE ASSY
202 3-343-419-01 HOLDER (S SENSOR A) 223 3-343-493-01 LEVER (PM LEVER)
203 3-343-453-01 SLIDER (BRAKE PLATE) 224 X-3343-453-1 LEVER (TU-F) ASSY
204 3-343-482-01 SPRING, TORSION 225 * 3-343-425-01 ARBOR (MOVABLE IRON ARBOR), IRON
205 3-343-461-01 SLIDER 226 * 3-343-424-01 ARBOR (FIXED IRON ARBOR), TRON
227 9-911-863-XX SPACER (THRUST RETAINER) (DECK A)
206 X-3343-414-1 LEVER (FR ARM) ASSY /
207 3-343-430-01 SPRING, TORSION 908 * 1-624-148-11 LEAF SW (A) BOARD (DECK A)
208 7-627-556-28 SCREW +P 2. 6X3. 5 $08 * 1-624-148-11 LEAF SW (B) BOARD (DECK 8)
209 3-355-801-01 SCREW (BTP 2X18)
210 & X-3343-407-1 BASE (THRUST RETAINER) ASSY $09 * 1-624-146-11 MD-B BOARD (DECK B)
$10 * 1-624-147-11 MD-A BOARD (DECK A)
2Ni 3-343-404-01 SCREW (PTPWH 2X12) M1 X-3343-447-1 MOTOR ASSY (DECK A)
212 7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT M2 X-3343-447-1 MOTOR ASSY (DECK 8B)
213 3-343-480-01 PLATE, SHIELD
214 3-343-457-01 SLIDER (REVERSE SLIDER) PMI 1-454-456-11 SOLENOID, PLUNGER (DECK A)
215 3-343-462-01 LEVER PM2 1-454-456-11 SOLENOID, PLUNGER (DECK B)
216 3-343-816-00 BELT (CAPSTAN BELT SQUARE) $11 1-571-281-21 SWITCH, LEAF (HALF)
217 X-3343-411-6 FLYWHEEL COMPLETE ASSY $12 1-571-281-21 SWITCH, LEAF (REC (A)) (DECK 8B)
218 4-605-835-11 WASHER (2.6). POLYSLIDER $13 1-571-281-21 SWITCH, LEAF (REC (B)) (DECK B)
219 3-307-482-00 WASHER, LUMILER $i4 1-571-281-21 SWITCH, LEAF (Cr02)
220 X-3343-454-1 LEVER (TU-R) ASSY $15 1-571-281-21 SWITCH, LEAF (DECK 8)
221 3-343-470-01 GEAR (CAM GEAR)
