Sony HCD-H77 - CD SECTION Exploded Views

HCD-H66/H70/H77/H1200/H1400 |

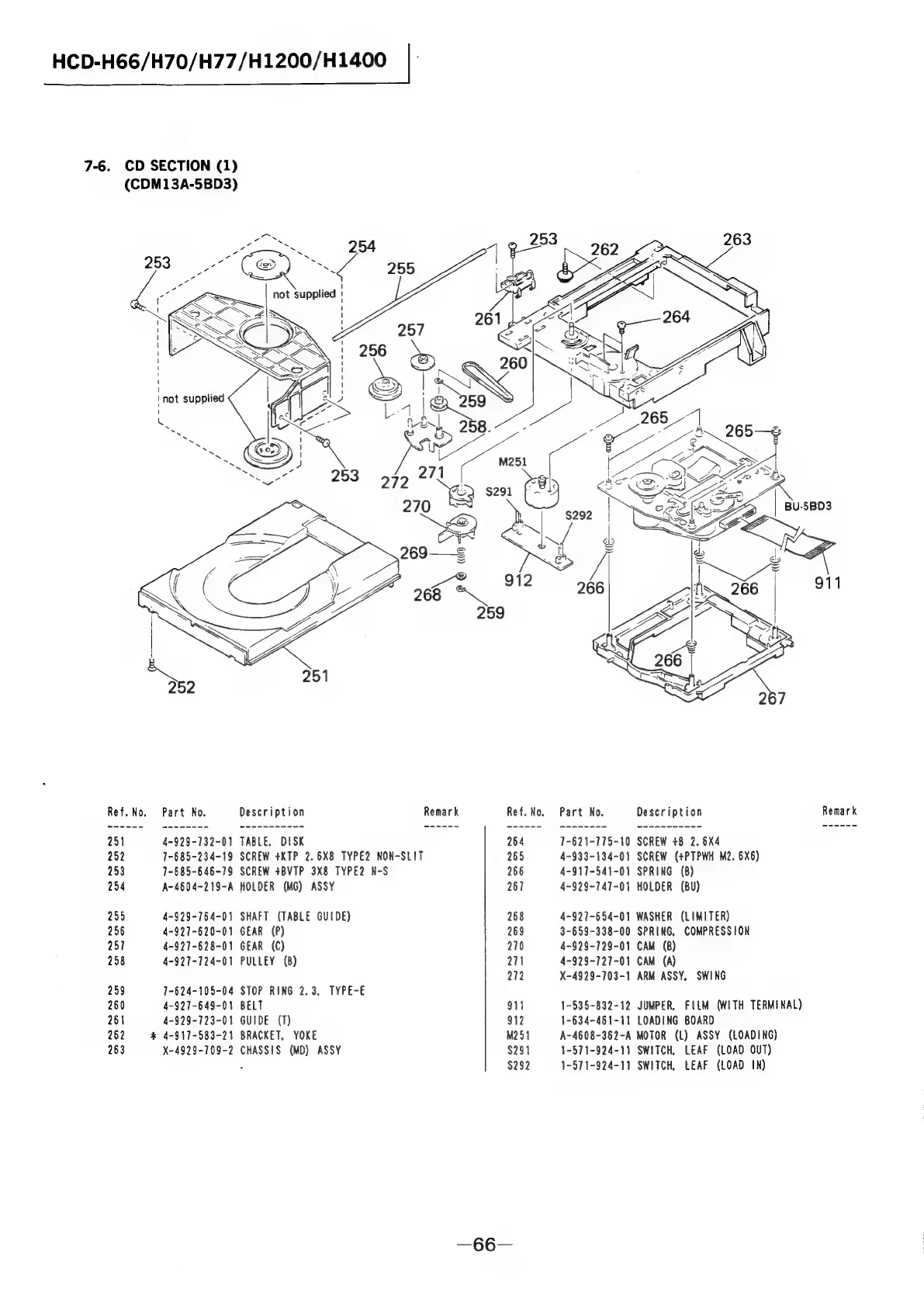

CD SECTION (1)
(CDM13A-5BD3)
od Ge)
a not supplied
Ref. No. Part No. Description
251 4-929-732-01 TABLE, DISK
252 1-685-234-19 SCREW +KTP 2. 6X8 TYPE2 NON-SLIT
283 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
254 A-4604-219-A HOLDER (MG) ASSY
255 4-929-764-01 SHAFT (TABLE GUIDE)
256 4-927-620-01 GEAR (P)
257 4-927-628-01 GEAR (C)
258 4-927-724-01 PULLEY (B)
259 7-624-105-04 STOP RING 2.3, TYPE-E
260 4-927-649-01 BELT
261 4-929-723-01 GUIDE (T)
262 * 4-917-583-21 BRACKET, YOKE
263
X-4929-709-2 CHASSIS (MD) ASSY
Part No.
264 1-621-775-10
265 4-933-134-01
266 4-917-541-01
267 4~929-747-01
268 4-927-654-01
269 3-659-338-00
270 4-929-729-01
211 4-9$29-727-01
272 X-4929-703-1
$11 1-535-832-12
$12 1-634-461-11
M251 A-4608-362-A
$291 1-571-924-14
$292 1-571-924-11
—66—
Description
SCREW +8 2. 6X4
SCREW (+PTPWH M2. 6X6)
SPRING (B)
HOLDER (BU)
WASHER (LIMITER)
SPRING, COMPRESSION
CAM (B)
CAM (A)
ARM ASSY, SWING
JUMPER, FILM (WITH TERMINAL)
LOADING BOARD
MOTOR (L) ASSY (LOADING)
SWITCH, LEAF (LOAD OUT)
SWITCH, LEAF (LOAD IN)
