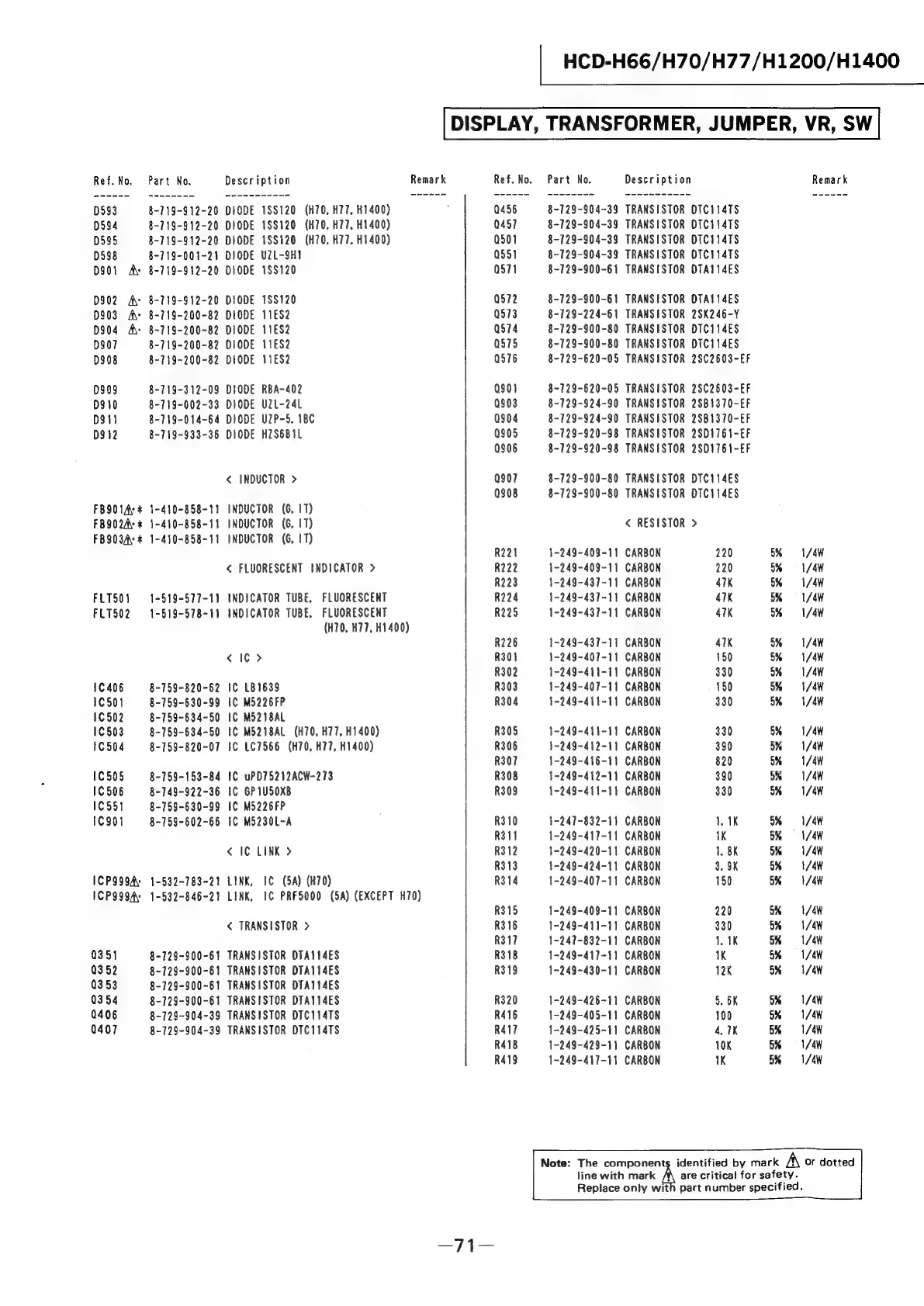

| HCD-H66/H70/H77/H1200/H1400
DISPLAY, TRANSFORMER, JUMPER, VR, SW
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
D593 8-719-912-20 DIODE 188120 (H70, H77, 11400) 0456 8-729-904-39 TRANSISTOR DTC114TS
D594 8-719-912-20 DIODE 18$120 (H70, H77, H1400) 0457 8-729-904-39 TRANSISTOR DICII4TS
D595 8-719-912-20 DIODE 1$$120 (H70, H77, H1400) 0501 8-729-904-39 TRANSISTOR DICi14TS
D598 8-719-001-21 DIODE UZL-SHI 0551 8-729-304-39 TRANSISTOR DTC114TS
D901 As 8-719-912-20 DIODE 188120 0571 8-729-900-61 TRANSISTOR DTAII4ES
D902 A: 8-719-912-20 DIODE 185120 0572 8-729-900-61 TRANSISTOR DTAI14ES
D903 As 8-719-200-82 DIODE 11€S2 0573 8-729-224-61 TRANSISTOR 2SK246-Y
D904 A+ 8-719-200-82 DIODE 11682 0574 8-729-900-80 TRANSISTOR DIC1I14ES
0907 8-719-200-82 DIODE 11ES2 0575 8-729-900-80 TRANSISTOR DIC114ES
D908 8-719-200-82 DIODE 11ES2 0576 8-729-620-05 TRANSISTOR 28C2603-EF
0909 8-719-312-09 DIODE RBA-402 0901 8-729-620-05 TRANSISTOR 28C2603-EF
0910 8-719-002-33 DIODE UZL-24L 0803 8-729-924-90 TRANSISTOR 28B1370-EF
091) 8-719-014-64 DIODE UZP-5. 18¢ 0904 8-729-924-90 TRANSISTOR 2SB1370-EF
0912 8-719-933-36 DIODE HZS6B1L 0905 8-728-920-98 TRANSISTOR 2SD1761-EF
0906 8-728-920-98 TRANSISTOR 2SD1761-EF
< INDUCTOR > 0907 8-729-900-80 TRANSISTOR DICII4ES
0908 8-729-900-80 TRANSISTOR DICII4ES
FB9OTA:# 1-410-858-11 INDUCTOR (6, IT)
FBS02A:# 1-410-858-11 INDUCTOR (6, IT) < RESISTOR >
FBS03A+# 1-410-858-11 INDUCTOR (6, IT)
R221 1-249-409-11 CARBON 220 5% «1/4W
< FLUORESCENT INDICATOR > R222 1-249-409-11 CARBON 220 5% = 1/4
R223 1-249-437-11 CARBON 47k 5% 1/4
FLT501 1-519-577-11 INDICATOR TUBE, FLUORESCENT R224 1-249-437-11 CARBON 47k 5% = 1/4
FLT502 1-519-578-11 INDICATOR TUBE, FLUORESCENT R225 1-249-437-11 CARBON 47K 5% OL/4W
(H70, H77, 1400)
R226 1-249-437-11 CARBON 47k 5% 1/4
«10> R301 1-249-407-11 CARBON 150 5% «1/4
R302 1-249-411-11 CARBON 330 5% O1/4W
10406 8-759-820-62 IC LB1639 R303 1-249-407-11 CARBON 150 5% «1/4W
1€501 8-759-630-99 IC M5226FP R304 1-249-411-11 CARBON 330 5% OI/4W
1€502 8-759-634-50 IC M5218AL
1€503 8-759-634-50 IC M5218AL (H70, 77, H1400) R305 1-249-411-11 CARBON 330 5% 1/4W
1504 8-759-820-07 IC 107566 (H70, H77, H1400) R306 1-249-412-11 CARBON 390 5% «1/4
R307 1-249-416-11 CARBON 820 5% 1/4
1505 8-759-153-84 IC uPD75212ACW-273 R308 1-249-412-11 CARBON 390 5% o1/4W
1C506 8-749-922-36 IC GPIU5OXB R309 1-249-411-11 CARBON 330 5% «1/4W
1551 8-759-630-99 IC M5226FP
1€901 8-759-602-66 iC M5230L-A R310 1-247-832-11 CARBON 1. 1K 5% «1/4
R311 1-249-417-11 CARBON 1K 5% = 1/4W
< 1 LINK > R312 1-249-420-11 CARBON 1. 8K 5% = 1/4W
R313 1-249-424-11 CARBON 3. 9K 5% = «1/4
ICP999A. 1-532-783-21 LINK, IC (5A) (H70) R314 1-249-407-11 CARBON 150 5% OA /4W
ICP99SA: 1-532-846-21 LINK, IC PRF5000 (5A) (EXCEPT H70)
R315 1-249-409-11 CARBON 220 5% «1/4
< TRANSISTOR > R316 1-249-411-11 CARBON 330 5% «1/4
R317 1-247-832-11 CARBON 1. 1K 5% «1/4W
0351 8-729-900-61 TRANSISTOR DTAVI4ES R318 1-249-417-11 CARBON IK 5% = «1/4W
0352 8-729-900-61 TRANSISTOR DTAII4ES R319 1-249-430-11 CARBON 12k 5% =1/4W
0353 8-729-900-61 TRANSISTOR DTAII4ES
0354 8-729-900-61 TRANSISTOR DTAI14ES R320 1-249-426-11 CARBON 5. 6K 5% =1/4W
0406 8-729-904-39 TRANSISTOR DIC114TS R416 1-249-405-11 CARBON 100 5% O1/4W
0407 8-729-904-39 TRANSISTOR DIC114TS R417 1-249-425-11 CARBON 4, 1K 5% «1/40
R418 1-249-429-11 CARBON 10K 5% = 1/4
R419 1-249-417-11 CARBON IK 5% = 1/4W
line with mark are critical for safety.
Replace only with part number specified.
Note: The vith mark far rit by mark A or dotted
