Sony HCD-MD333 - 7-11. Schematic Diagram - Main (1;3) Section

HCD-MD333
– 55 – – 56 –
(Page 73)
(Page 61)
(Page 62)
(Page 57)
(Page 66)
(Page 73)
(Page 47)
(Page
42)
(Page 69)
• See page 86 for IC Block Diagrams.
• See page 94 for IC Pin Functions.

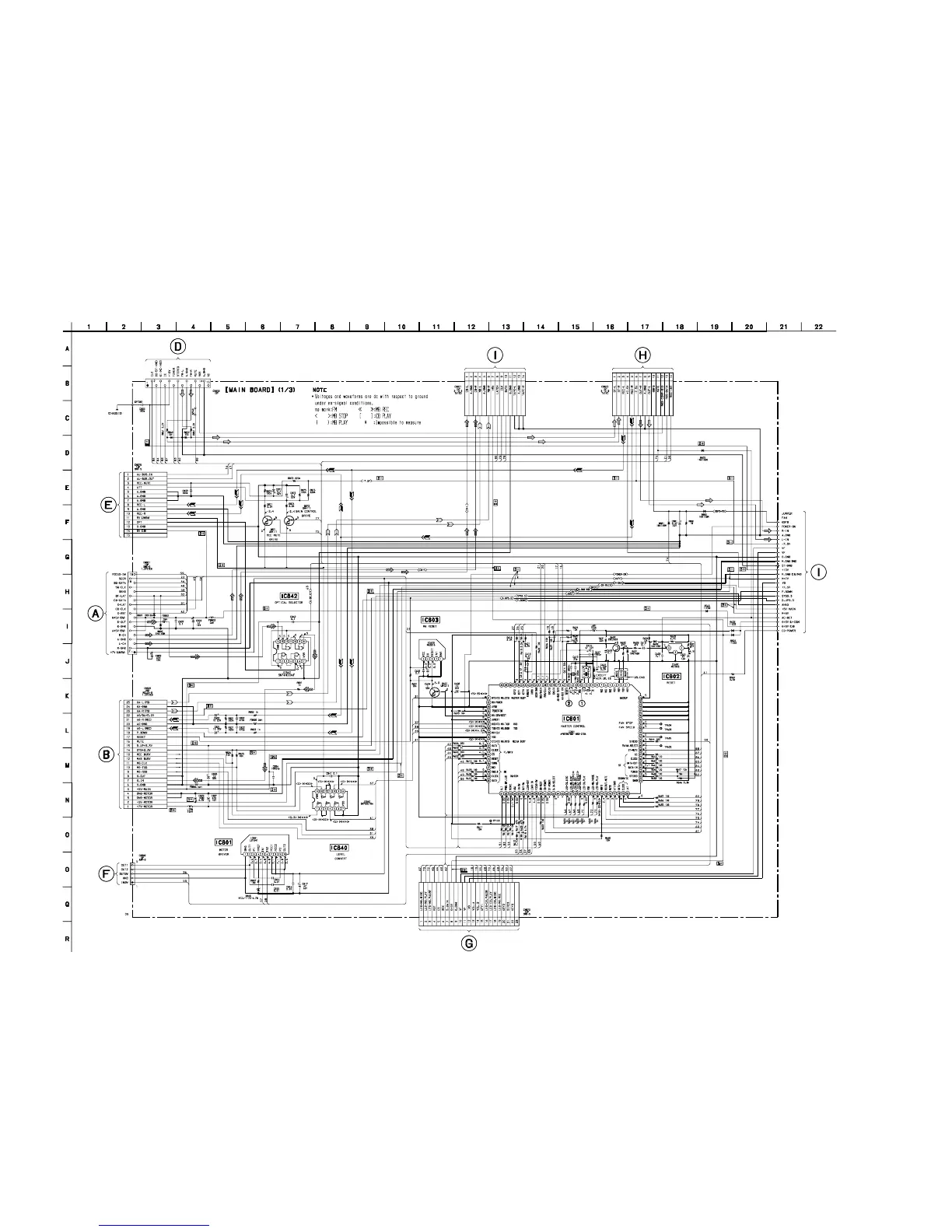

7-11. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION –
• See page 40 for Waveforms.
• See page 59 for Printed Wiring Board.
