CAPACITOR ELECTRICAL DISCHARGE PROCESSING
When checking the board, the electrical discharge is necessary for the electric shock prevention.

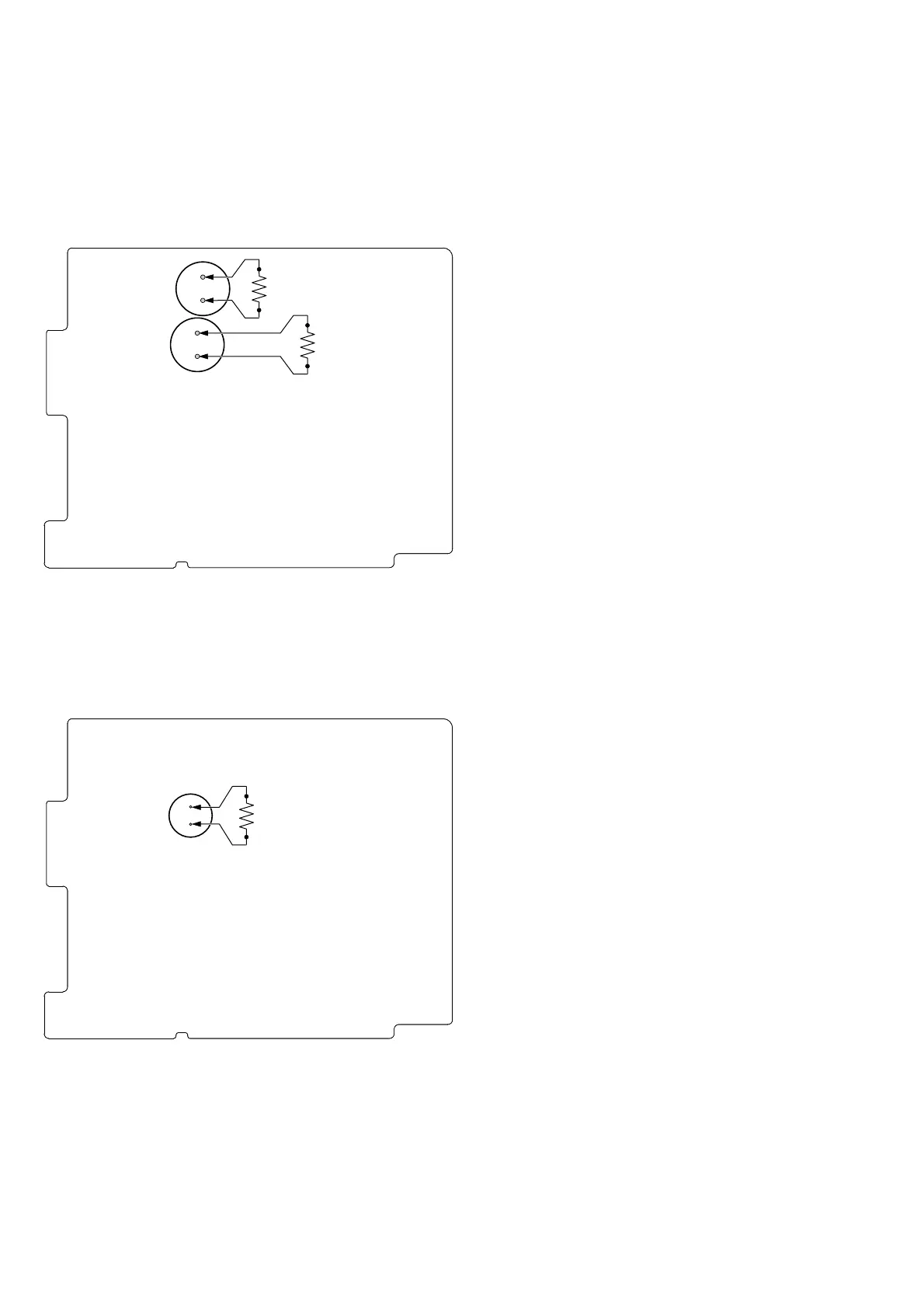

Connect the resistors referring to the fi gure below.
• POWER board (C11, C12) (Canadian model)
Both ends of respective capacitors.
800 :/2 W
800 :/2 W
C12
C11
– POWER Board (Conductor Side) –
• POWER board (C10) (Except Canadian model)
Both ends of respective capacitors.
800 :/2 W
C10
– POWER Board (Conductor Side) –
