HCD-MX700Ni/MX750Ni
SECTION 6
EXPLODED VIEWS
1 4-175-911-11 PANEL (CD)
2 4-159-522-02 SPRING (LOADING)
3 4-183-971-01 BASE (CD)
4 3-077-331-01 +BV3 (3-CR)
5 3-704-515-22 SCREW (BV/RING)
(MX700Ni: US, CND, AEP, TW/MX750Ni)
5 3-704-515-32 SCREW (BV/RING) (MX700Ni: E2, BR)
6 4-175-953-11 CASE
7 1-457-413-11 CORE, FERRITE
0 8 1-569-008-33 ADAPTOR, CONVERSION (E2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
BR : Brazilian model
CND : Canadian model
E2 : Latin American model
TW : Taiwan model

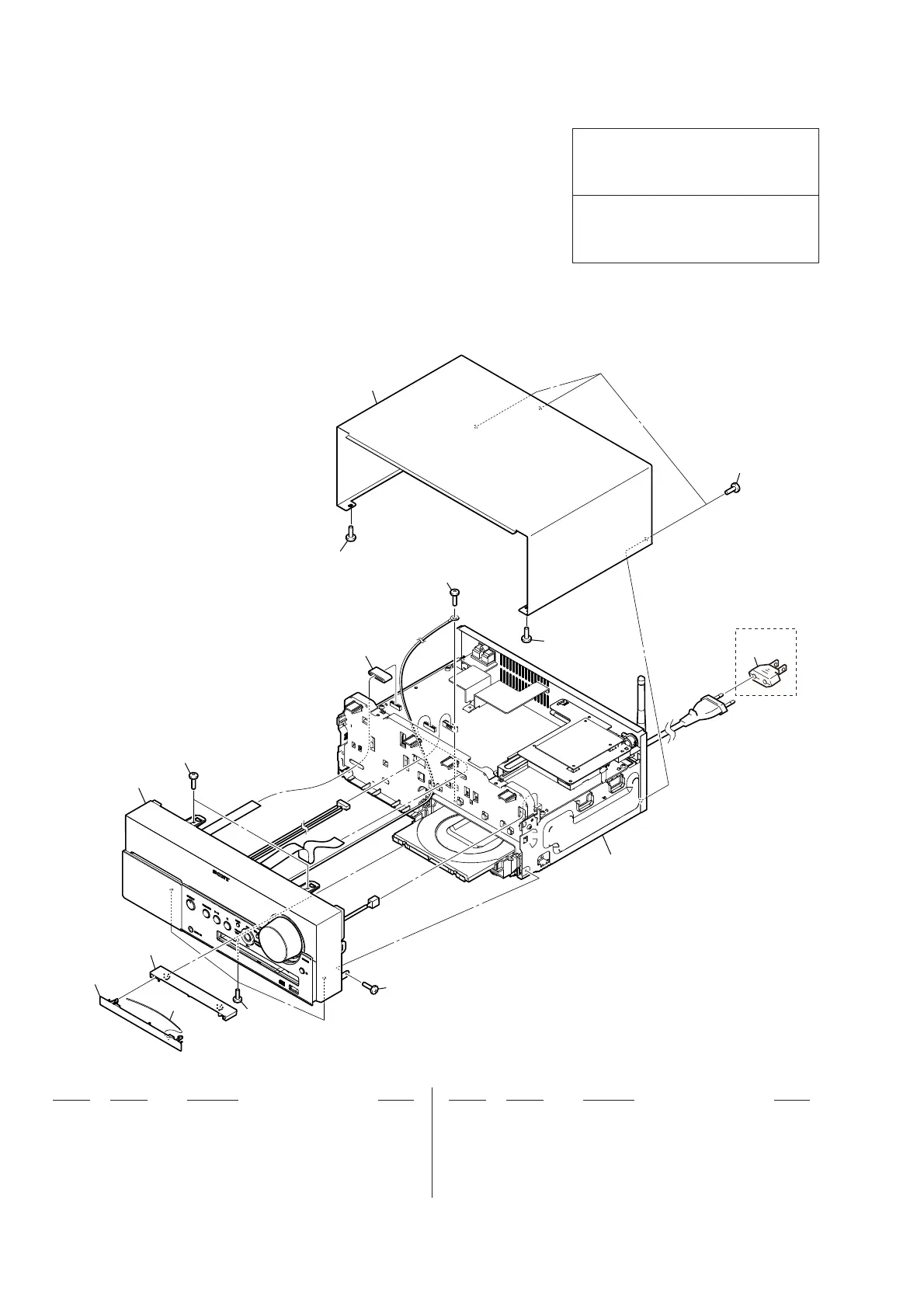

6-1. CASE SECTION
1
2
3
4
4
4
4
7
5
5
5
6
front panel section
MAIN board section
8
(E2)
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
To Next Page
