1-17
HDC1000/V2 (J, E)

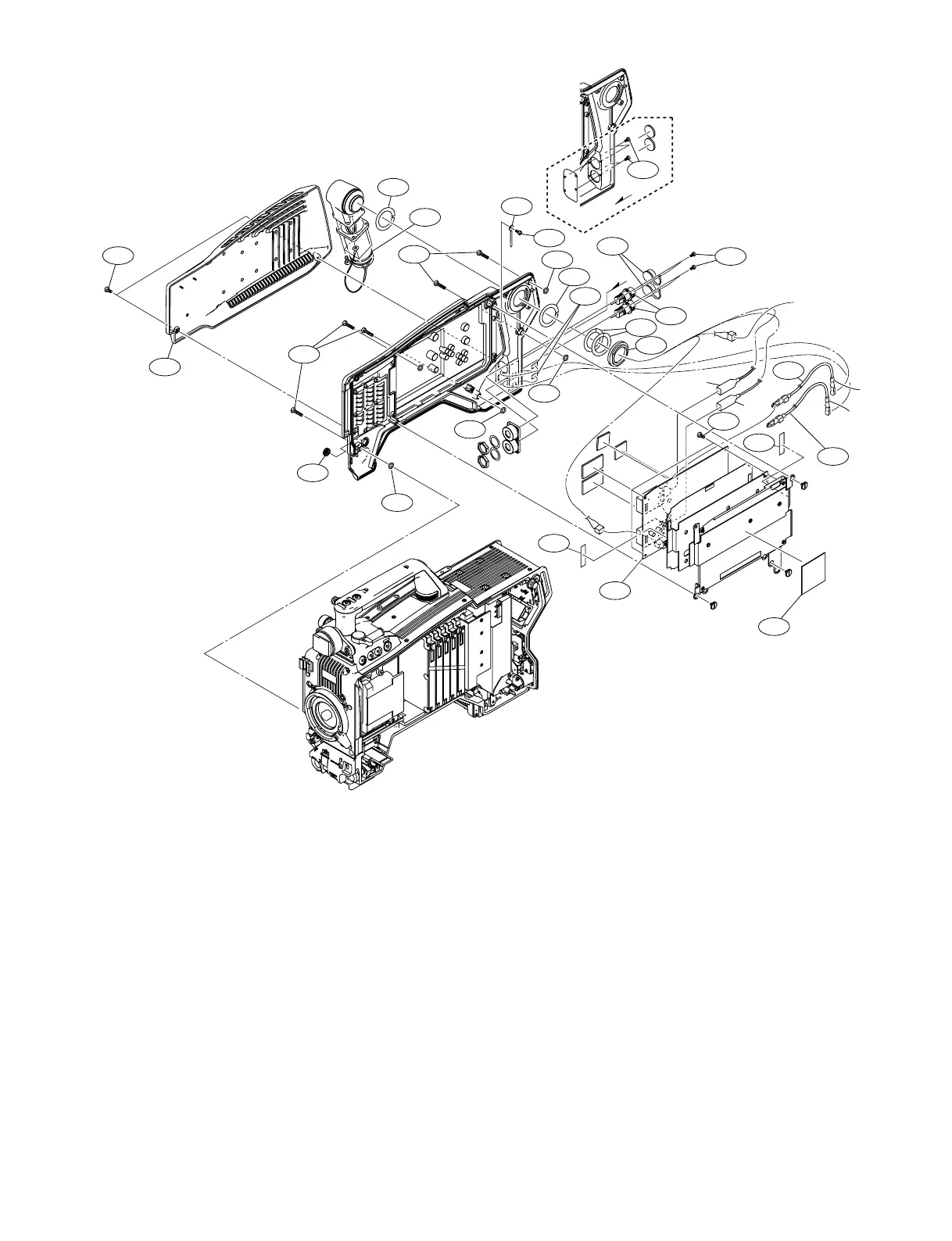

Outside Panel (HDC1400/1500/1580/1600)
No. Part No. SP Description
1001
!
A-1099-252-B s MOUNTED CIRCUIT BOARD, SDI-84
(HDC1500/1600)
!
A-1179-311-B s MOUNTED CIRCUIT BOARD, SDI-84C
(HDC1400/1580)
1002 A-1128-449-A s OUTSIDE PAD SUBASSY
1003 1-784-240-11 s CONVERTER, COAXIAL CONNECTOR
(HDC1500/1600)
1004 1-829-055-11 s CABLE ASSEMBLY, COAXIAL
(HDC1500/1600)
1005 1-830-737-11 s CABLE ASSEMBLY, COAXIAL
(HDC1500/1600)
1006
!
1-830-745-11 s CABLE ASSEMBLY, ENCAPSULAT (M)
(Made by LEMO)
!
1-830-751-11 s OPTICAL MULTI CABLE ASSEMBLY
(Made by TAJIMI)
No. Part No. SP Description
1007 3-176-525-01 o WASHER, SPRING (ST)
1008 3-364-941-01 s SCREW (+B) (2.6X5),NYLOK
1009 3-602-461-01 o NUT, CONNECTOR
1010 3-602-464-01 o WASHER, CONDUCTIVE
1011 3-603-680-01 s STAINLESS SCREW +B3X12
1012 3-672-250-00 s RING(M2.6),O (RBR)
1013 3-676-244-21 s COVER,SWITCH
1014 3-701-822-00 s HOLDER, WIRE
1015 3-872-605-02 s SHEET,DPR THERMAL
1016 3-872-608-02 s LABEL(BNC)
1017 3-872-935-01 s CAP,BNC (HDC1500/1600)
1018 4-654-273-02 s ACE (M2), LOCK
1019 3-872-571-01 s SHEET(1),SDI THERMAL
7-682-548-09 s SCREW +B 3X8
B3 x 8
BLACK
2
1
WHITE
a
For HDC1400/1580 only
a
1005
1008
1004
1018
1008
1012
1009
1010
1014
1010
1012
1001
1019
1019
1015
1012
1012
1013
1008
1002
To SWITCHING REG.
1016
1018
1007
1017
1011
1011
1003
1006
To Next Page
