Sony HDC1400 - CN-2579

HDC1000/V2 (J, E)
4-21 4-21
2
3
4
5
1
ABCDEFGH

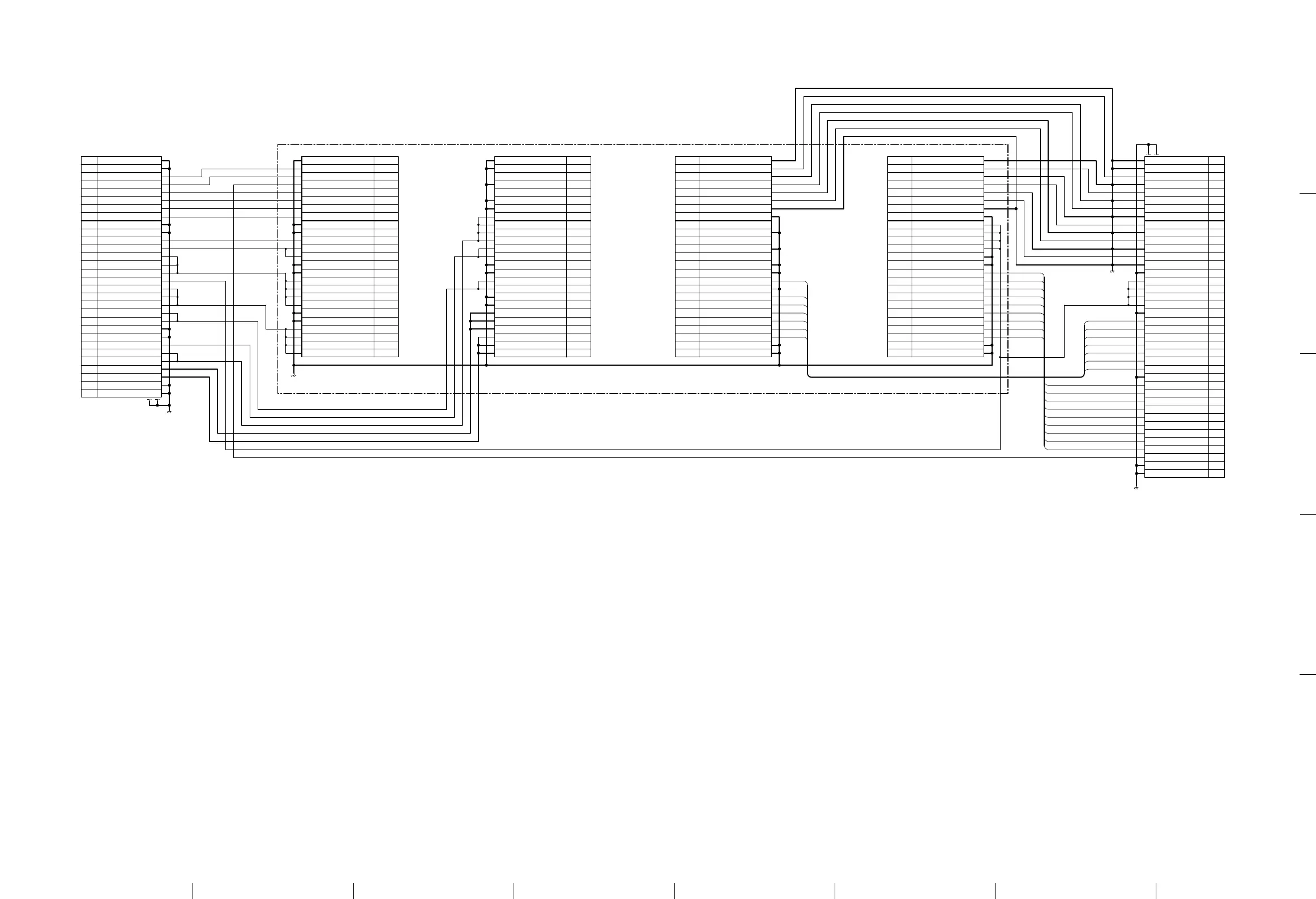

CN-2579
BOARD NO. 1-865-975-12, 21, 22
HDC-1500_CN-2579_012_1
CN-2579
SUFFIX: -12, 21, 22
CN-2579
SUFFIX: -12, 21, 22
CN2
1 GND
2 GND
3 PLL_H(X)_out
4 PLL_H(Y)_out
5 HTSG_out
6 OHB_H_in
7 CHU_F_out
8 CHU_H_out
9 GND
10 GND
31
12
+15.5V
13 +7V(H_DRIVE)
14 +7V(H_DRIVE)
15 +7V(H_DRIVE)
16 +6V(AFE)
17 +3.7V
18 +3.7V
19 +3.7V
32
11
+24V
20 +1.8V
21 +1.8V
22 GND
23 GND
24 -5.5V
25 -8.5V
26 -8.5V
27 UNREG_GND
28 UNREG
29 GND
30 GND
CN1
1 GND
2 GND
3 Facum
4 IIC_SDA
5 IIC_SCL
6 OHB_RESET
7 RESET(BCS)
8 COMRST(BCS)
9 BUSY(BCS)
10 TXD(BCS)
11 RXD(BCS)
12 SCK(BCS)
13 GND
14 LD_OHB5(SH)
15 LD_OHB4(DR)
16 LD_OHB3(BL)
17 LD_OHB2(TG)
18 LD_OHB1(PA)
19 SCLK_OHB
20 SDA_OHB
21 GND
22 +6V(AVE)
23 +6V(AVE)
24 +6V(AVE)
25 +6V(AVE)
26 GND
27 GND
28 R1_VA_OUT
29 GND(R1)
30 R2_VA_OUT
31 GND(R2)
32 G1_VA_OUT
33 GND(G1)
34 G2_VA_OUT
35 GND(G2)
36 B1_VA_OUT
37 GND(B1)
38 B2_VA_OUT
39 GND(B2)
40 GND
41 42
CN3 (1/100)
1
+3.7V
CN3
(2/100)
2
+3.7V
CN3
(3/100)
3
+3.7V
CN3
(4/100)
4
+3.7V
CN3
(5/100)
5
GND
CN3
(6/100)
6
GND
CN3
(7/100)
7
+7V(H_DRIVE)
CN3
(8/100)
8
+7V(H_DRIVE)
CN3
(9/100)
9
+7V(H_DRIVE)
CN3
(10/100)
10
+7V(H_DRIVE)
CN3
(11/100)
11
GND
CN3 (12/100)
12
GND
CN3 (13/100)
13
+15.5V
CN3
(14/100)
14
+15.5V
CN3
(15/100)
15
+24V
CN3
(16/100)
16
GND
CN3
(17/100)
17
GND
CN3 (18/100)
18
CHU_H
CN3
(19/100)
19
CHU_F
CN3
(20/100)
20
OHB_H
CN3 (21/100)
21
HTSG
CN3 (22/100)
22
Facum
CN3
(23/100)
23
PLL_H(Y)_in
CN3
(24/100)
24
PLL_H(X)_in
CN3
(25/100)
25
GND
CN3
(26/100)
26
UNREG
CN3 (27/100)
27
UNREG
CN3 (28/100)
28
UNREG
CN3
(29/100)
29
UNREG_GND
CN3
(30/100)
30
UNREG_GND
CN3
(31/100)
31
UNREG_GND
CN3
(32/100)
32
GND
CN3
(33/100)
33
GND
CN3
(34/100)
34
+1.8V
CN3
(35/100)
35
+1.8V
CN3 (36/100)
36
GND
CN3
(37/100)
37
GND
CN3
(38/100)
38
-5.5V
CN3
(39/100)
39
-5.5V
CN3
(40/100)
40
-8.5V
CN3
(41/100)
41
-8.5V
CN3
(42/100)
42
-8.5V
CN3
(43/100)
43
-8.5V
CN3
(44/100)
44
GND
CN3
(45/100)
45
GND
CN3
(46/100)
46
NC
CN3
(47/100)
47
GND
CN3 (48/100)
48
NC
CN3
(49/100)
49
GND
CN3 (50/100)
50
GND
CN3 (51/100)
51
GND
CN3
(52/100)
52
GND
CN3
(53/100)
53
SDA_OHB
CN3
(54/100)
54
LD_OHB1(PA)
CN3
(55/100)
55
SCLK_OHB
CN3
(56/100)
56
LD_OHB2(TG)
CN3
(57/100)
57
LD_OHB3(BL)
CN3
(58/100)
58
LD_OHB4(DR)
CN3
(59/100)
59
GND
CN3
(60/100)
60
LD_OHB5(SH)
CN3
(61/100)
61
GND
CN3
(62/100)
62
GND
CN3
(63/100)
63
NC
CN3
(64/100)
64
GND
CN3
(65/100)
65
NC
CN3
(66/100)
66
GND
CN3 (67/100)
67
NC
CN3
(68/100)
68
GND
CN3
(69/100)
69
GND
CN3
(70/100)
70
R2_VA_OUT
CN3
(71/100)
71
GND
CN3 (72/100)
72
G2_VA_OUT
CN3
(73/100)
73
GND
CN3 (74/100)
74
B2_VA_OUT
CN3
(75/100)
75
GND
CN3
(76/100)
76
GND
CN3 (77/100)
77
GND
CN3
(78/100)
78
IIC_SDA
CN3
(79/100)
79
IIC_SCL
CN3
(80/100)
80
OHB_RESET
CN3
(81/100)
81
RESET(BCS)
CN3
(82/100)
82
COMRST(BCS)
CN3
(83/100)
83
BUSY(BCS)
CN3
(84/100)
84
TXD(BCS)
CN3 (85/100)
85
RXD(BCS)
CN3
(86/100)
86
SCK(BCS)
CN3 (87/100)
87
GND
CN3
(88/100)
88
GND
CN3
(89/100)
89
+6V(AFE)
CN3 (90/100)
90
+6V(AFE)
CN3 (91/100)
91
+6V(AFE)
CN3 (92/100)
92
+6V(AFE)
CN3
(93/100)
93
GND
CN3 (94/100)
94
GND
CN3
(95/100)
95
R1_VA_OUT
CN3
(96/100)
96
GND
CN3
(97/100)
97
G1_VA_OUT
CN3 (98/100)
98
GND
CN3
(99/100)
99
B1_VA_OUT
CN3
(100/100)
100
GND
GND
GND
GND
GND-2
SCK
RXD
TXD
BUSY
COMRST
RESET
OHB_RESET
IIC_SCL
IIC_SDA
SCK
RXD
TXD
BUSY
COMRST
RESET
OHB_RESET
IIC_SCL
IIC_SDA
LD5
LD4
LD3
LD2
SCLK_OHB
LD1
SDA_OHB
SDA_OHB
SCLK_OHB
LD1
LD2
LD3
LD4
LD5
To PA-31
7
To DR-528
To CHU(MB-1059)
100pin/ST/Plug
